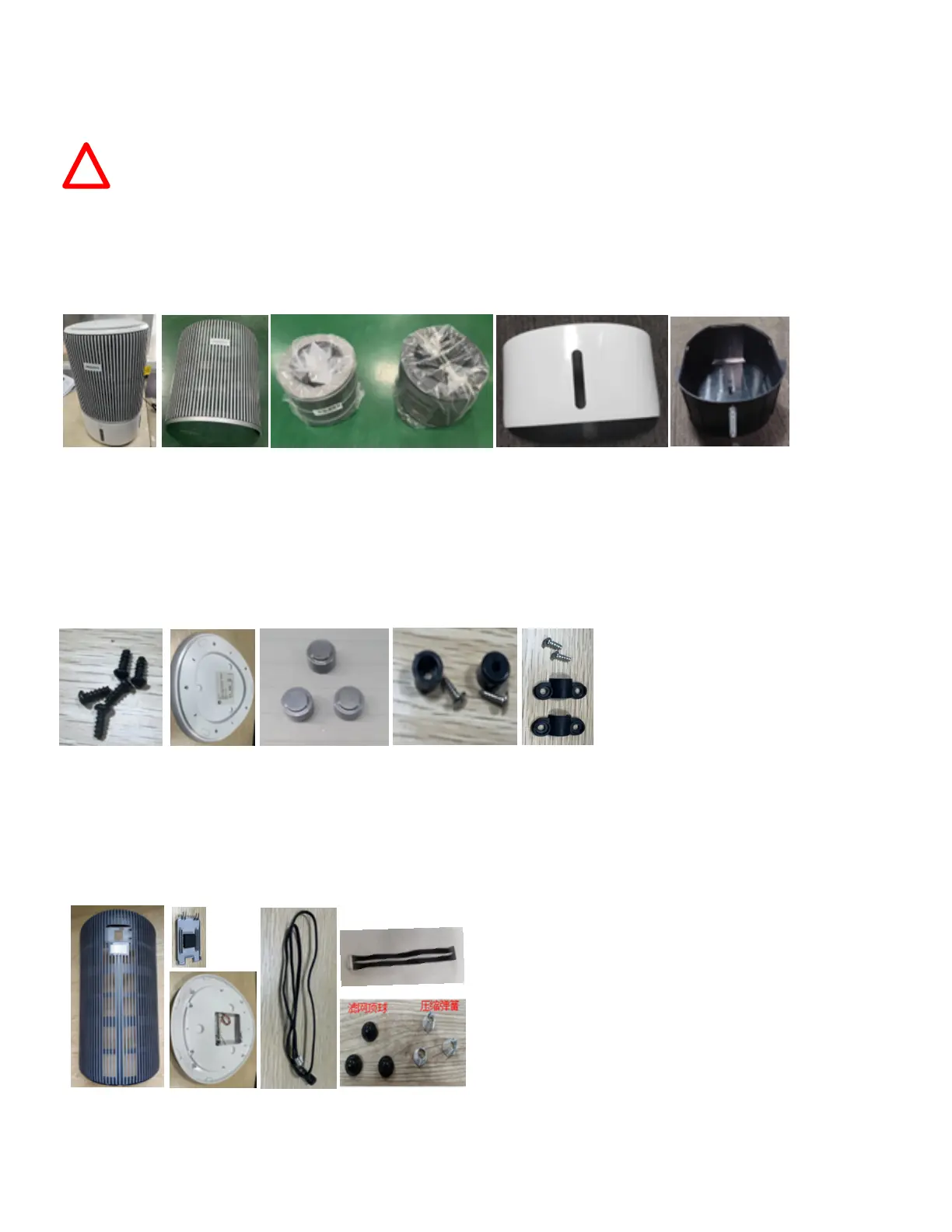

DISASSEMBLY INSTRUCTION
!
Before you start dismantling!
For your safety be sure the plug is disconnected from the mains!
If installation, perform the reverse operation, then test the basic
functions accordingly.
1.Take the Front cover/Filter/Wick/water tank/the front cover of water tank out and remove 4pcs screws.
2.Remove five screws from the base, take out the base cover , three Ball hole plugs and DC JACK
cover, then remove 2pcs screws and 2pcs fixing parts, finally remove 2pcs screws from HALL board.
3. Remove 8pcs screws from the real cover and 4pcs screws from the top cover, then take out the
sensor cover, three filter balls, three springs, the cable of DC Jack and the cable of the control
PCBA.
