DISASSEMBLY INSTRUCTION

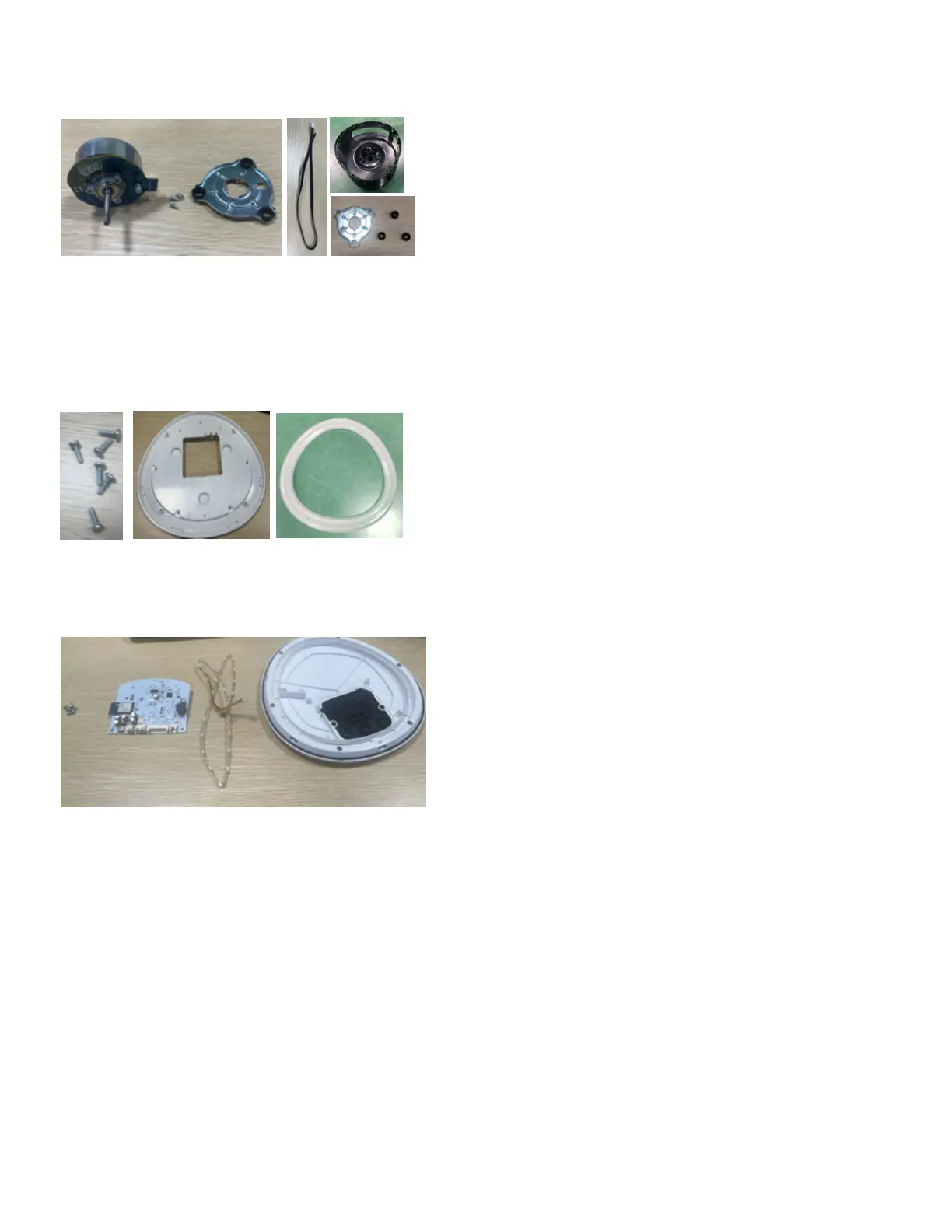

8. Remove 3cs screws from the Rubber buffer and take out the cable of motor and Impeller
bracket.
9. Remove 6pcs screws from the top cover and take out the Light Guide.
10. Remove 4pcs screws from the control board and take out the Light ring band.
