10 Repair and Disassembly
153
7

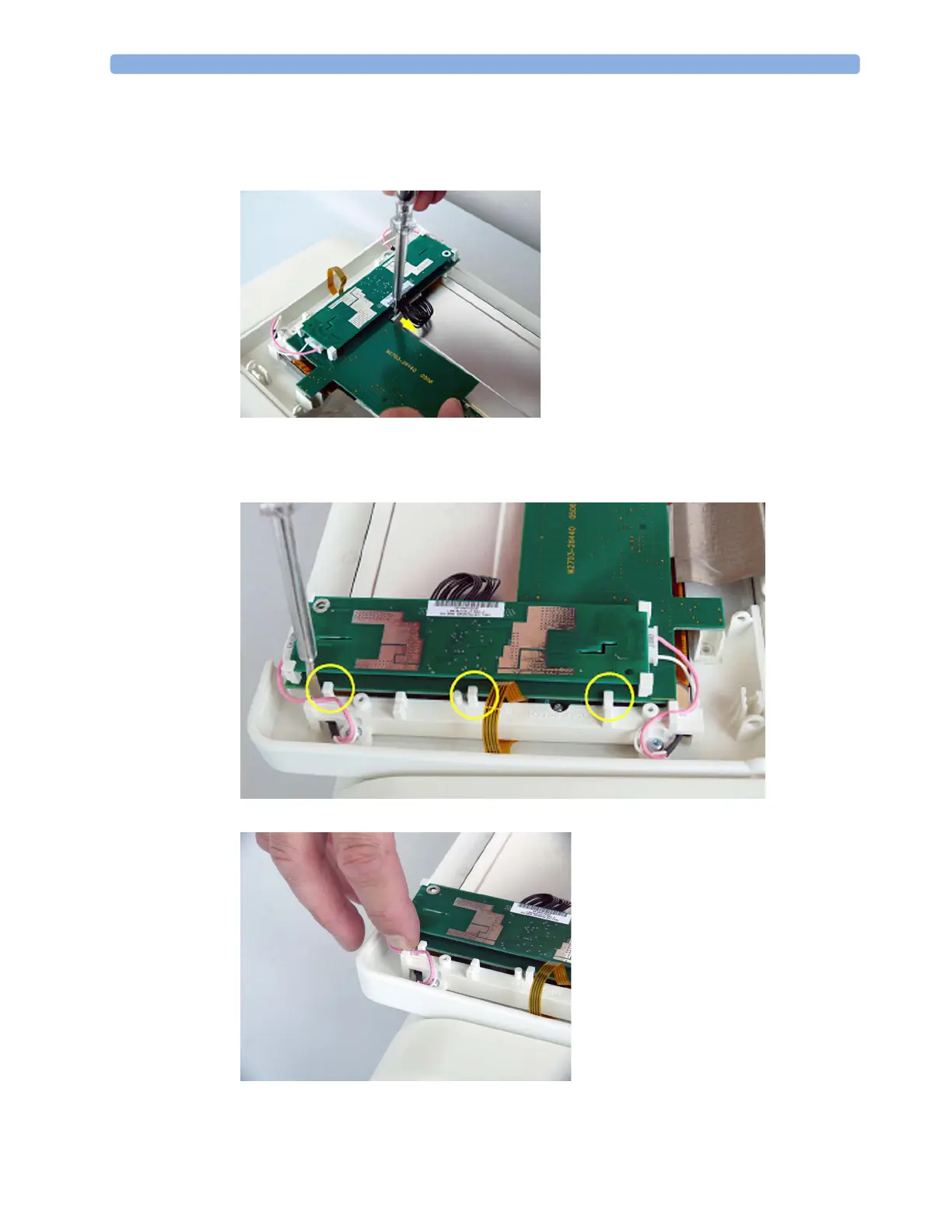

Old Version: Reconnect the back-light converter cable, and then slot the PCBs back into position.
Use a small, flat-bladed screwdriver to very gently lever the white plastic snap on the display board
and move the back-light converter connector outwards (in the direction of the arrow) to guide the
PCB back into position. Otherwise the bPCB would catch on the connector.
8 New Version: Slot the PCB back into position and use a small, flat-bladed screwdriver to very
gently lever the white plastic snap on the display board.
9 Ensure the PCB is located correctly as shown in the photograph.
...and that the pink and white cables are correctly routed, and held in place.
