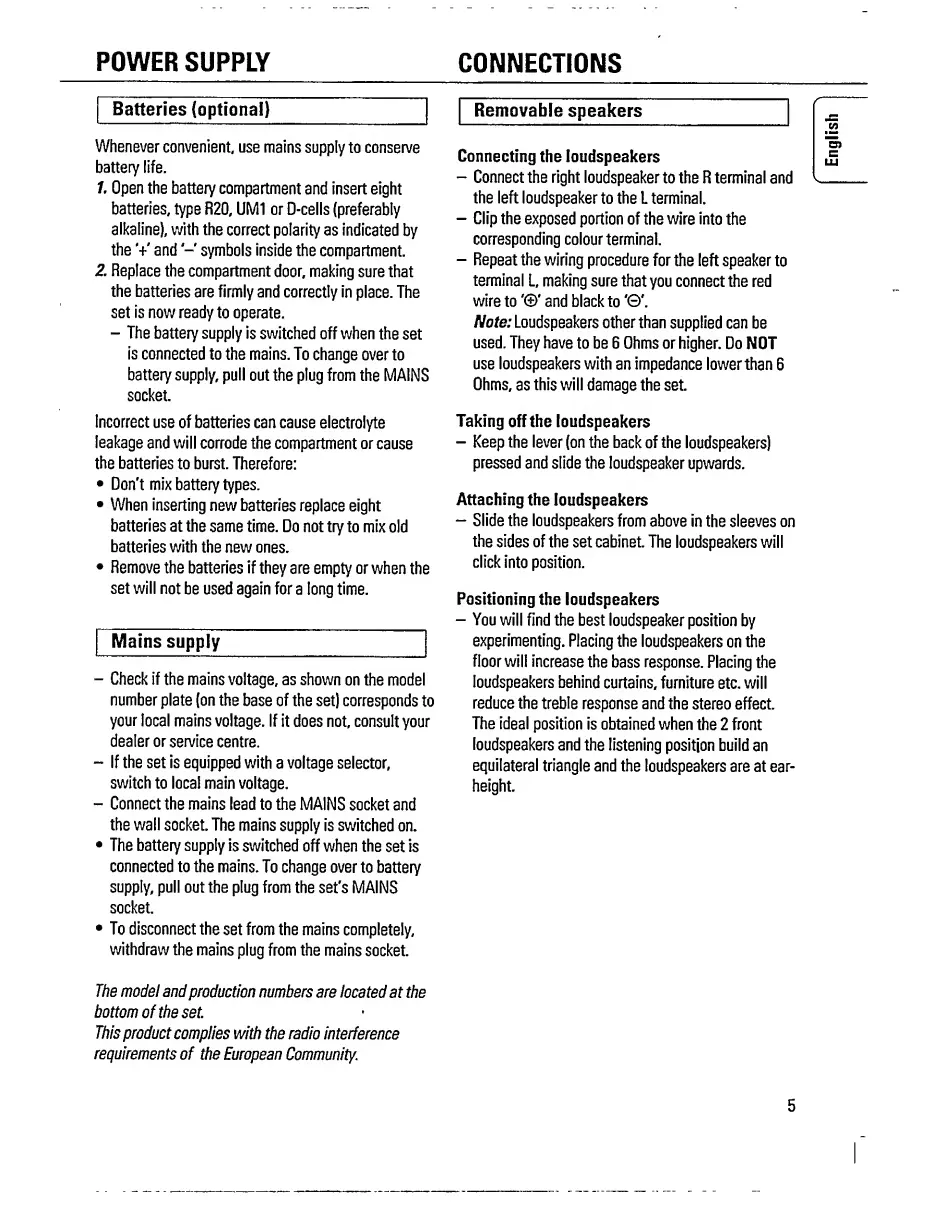

POWER SUPPLY
CONNECTIONS
Batteries (optional)
Whenever convenient, use mains supply to conserve
battery life.
1. Open the battery compartment and insert eight
batteries, type R20, UM1 or D-cells (preferably
alkaline), with the correct polarity as indicated by
the V andsymbols inside the compartment.
2. Replace the compartment door, making sure that
the batteries are firmly and correctly in place. The
set is now ready to operate.
- The battery supply is switched off when the set
is connected to the mains. To change over to
battery supply, pull out the plug from the MAINS
socket.
Incorrect use of batteries can cause electrolyte
leakage and will corrode the compartment or cause
the batteries to burst. Therefore:
• Don't mix battery types.
• When inserting new batteries replace eight
batteries at the same time. Do not try to mix old
batteries with the new ones.
• Remove the batteries if they are empty or when the
set will not be used again for a long time.
Mains supply
- Check if the mains voltage, as shown on the model
number plate (on the base of the set) corresponds to
your local mains voltage. If it does not, consult your
dealer or service centre.
- If the set is equipped with a voltage selector,
switch to local main voltage.
- Connect the mains lead to the MAINS socket and
the wall socket. The mains supply is switched on.
• The battery supply is switched off when the set is
connected to the mains. To change over to battery
supply, pull out the plug from the set's MAINS
socket.
• To disconnect the set from the mains completely,
withdraw the mains plug from the mains socket.
Removable speakers
Connecting the loudspeakers
- Connect the right loudspeaker to the R terminal and
the left loudspeaker to the L terminal.
- Clip the exposed portion of the wire into the
corresponding colour terminal.
- Repeat the wiring procedure for the left speaker to
terminal L, making sure that you connect the red
wire to '©' and black to '©'.
Note: Loudspeakers other than supplied can be
used. They have to be 6 Ohms or higher. Do NOT
use loudspeakers with an impedance lower than 6
Ohms, as this will damage the set.
Taking off the loudspeakers
- Keep the lever (on the back of the loudspeakers)
pressed and slide the loudspeaker upwards.
Attaching the loudspeakers
- Slide the loudspeakers from above in the sleeves on
the sides of the set cabinet. The loudspeakers will
click into position.
Positioning the loudspeakers
- You will find the best loudspeaker position by
experimenting. Placing the loudspeakers on the
floor will increase the bass response. Placing the
loudspeakers behind curtains, furniture etc. will
reduce the treble response and the stereo effect.
The ideal position is obtained when the 2 front
loudspeakers and the listening position build an
equilateral triangle and the loudspeakers are at ear-
height.
The model and production numbers are located at the
bottom of the set.
This product complies with the radio interference
requirements of the European Community.
