Philips AZ 1505 - Mechanical Partslist; Tape Deck Adjustment

11 - 211 - 2
119
13

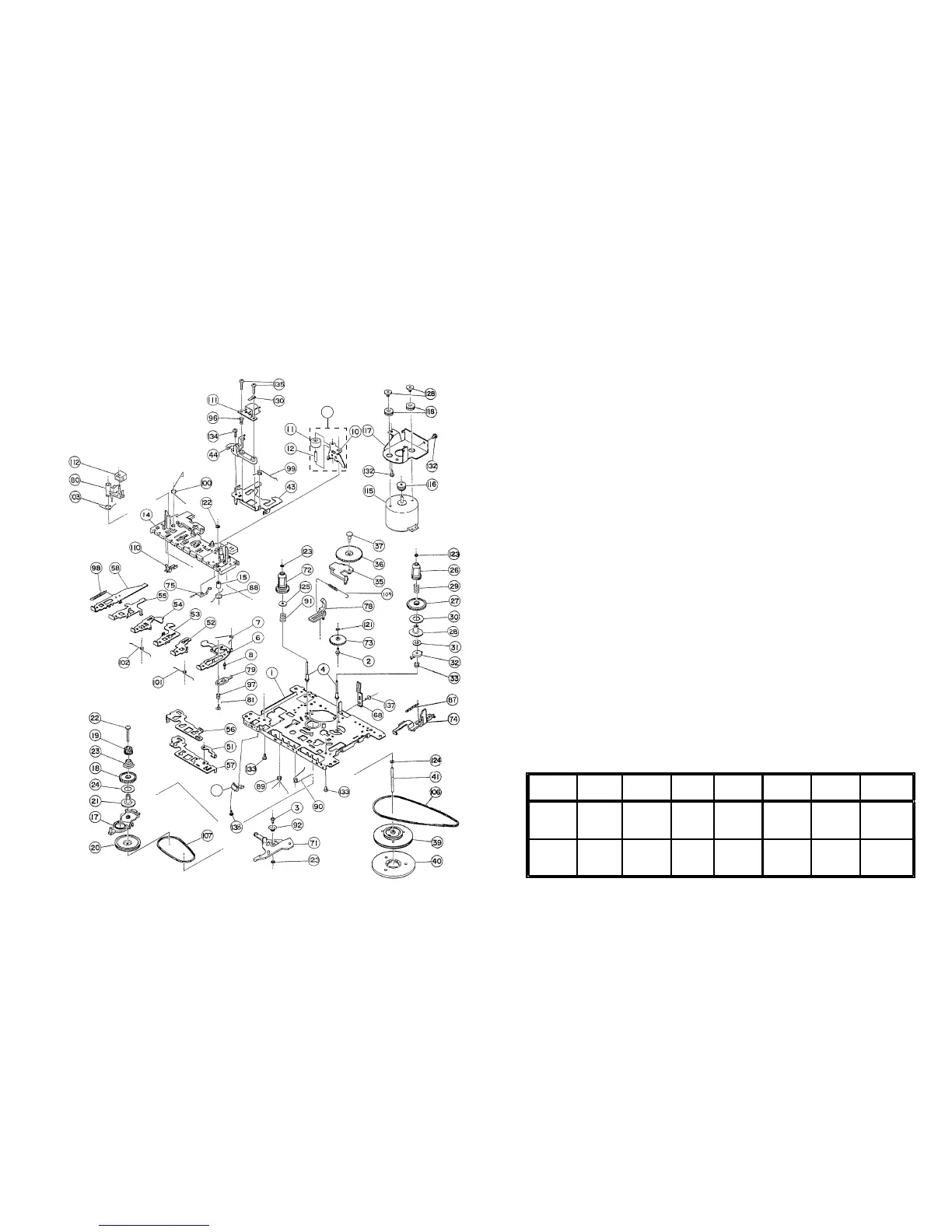

EXPLODED VIEW DIAGRAM - T APE DECK MECHANICAL PARTSLIST - CABINET
401 3140 117 62320 CD PANEL ASSY
401 3140 117 62810 CD PANEL ASSY (/17 only)
402 3140 114 41360 KNOB-DBB
403 3140 114 41260 VOLUME KNOB
404 3140 114 41270 CD KEYSET-1
406 3140 114 44370 TUNER KEYSET
407 3140 114 41280 CD KEYSET-2
408 3140 117 62280 BOTTOM CABINET ASSY
409 3140 114 41390 CD DOOR
411 3140 111 01190 SPRING-CD DOOR
412 3140 117 62440 TOP CABINET ASSY
413 3140 114 44350 CASS KEYSET
414 3140 118 71880 TAPE DRIVE CDS83PBF-08
416 3140 111 00790 SPRING-PLUS/MINUS
417 3140 111 21320 CONTACT PLATE
418 3140 111 00780 SPRING-COMPRESSION (-)
419 3140 117 63120 SLIDE KNOB ASSY
421 3140 114 41330 BRACKET-LCD
422 4822 529 10322 DAMPER ASSY
423 3140 114 44320 HANDLE
424 3140 114 44190 BATTERY DOOR
426 3140 118 71810 TELESCOPIC AERIAL
427 3103 309 05360 CD DA11B1N DRIVE ASSY
428 4822 529 10386 DAMPER - RUBBER (30 DEG)
429 4822 529 10387 DAMPER - RUBBER (40 DEG)
431 3140 104 00000 FERRITE BAR HOLDER (3 Band)
431 4822 256 90463 FERRITE BAR HOLDER (2 Band)
432 3140 111 20800 SPRING-RECORDING
3139 228 89740 REMOTE RC19414002/01T
MECHANICAL PARTSLIST - TAPE DECK
10 4822 528 70849 ROLLER ARM
11 4822 528 70695 ROLLER ASSY
13 4822 528 11189 PINCH ROLLER ASSY
106 4822 358 31325 MAIN BELT
107 9965 000 11408 SUB BELT (B)
110 4822 278 90663 LEAF SWITCH
111 9965 000 11448 R/P HEAD SR-20B03
112 9965 000 11449 E HEAD TC-235
115 9965 000 11450 MOTOR MG090Z90U24-1
116 9965 000 11451 MOTOR PULLEY
Adjustment Cassette SK .... Deck 1 Measure Read Adjust Adjust
on on with to
Left hand
Azimuth
10 kHz
SBC420*
SBC420*
Tape Play H/P Jack mV meter
Screw
max.
R/P head
3150 kHz
Wow and
Tape Play H/P Jack flutter
Preset
in motor
**a
meter
**a The maximum permissible speed deviation is – 3%.
* SBC420 : 4822 397 30071
Morever, the wow and flutter value can be read.
Motor
Speed
ADJUSTMENT - TAPE DECK
