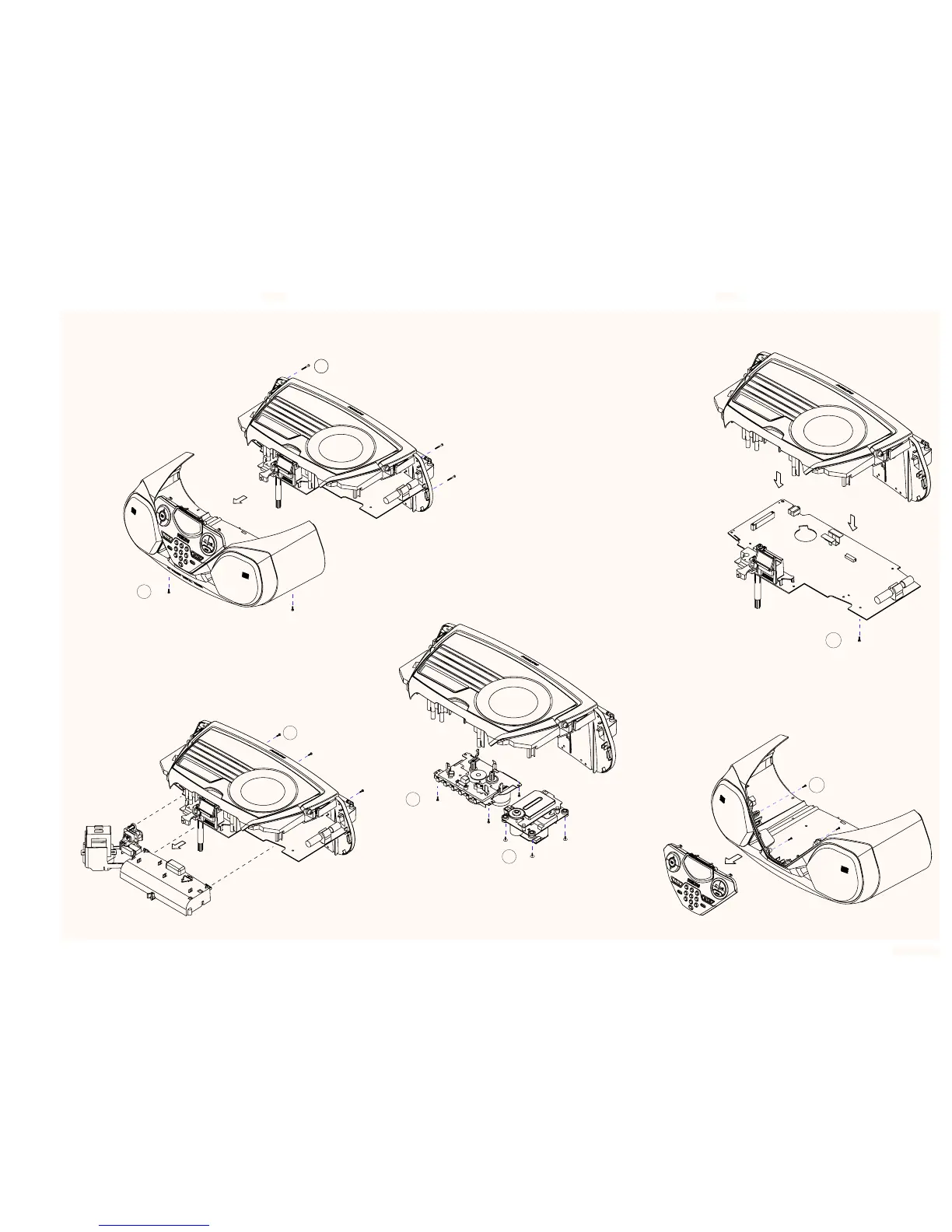

1. TO REMOVE BOTTOM CABINET ASEMBLY
A. Remove screws 3x20 - 4 pcs.
B. Remove screws 3x10 - 6 pcs.
4. TO REMOVE TAPE AND CD MECHANISM
E. Remove screws 3x10 - 4 pcs.
F. Remove screws 2.5x10 - 4 pcs.
2. TO REMOVE BATTERY COMPARTMENT ASEMBLY
C. Remove screws 3x10 - 3 pcs.
3. TO REMOVE COMBI BOARD ASEMBLY
D. Remove screws 3x10 - 7 pcs.
5. TO REMOVE CD PANEL ASEMBLY
G. Remove screws 2x8 - 4 pcs.
!(4x)
A x4
B x6
C x3
E x4
F x4
G x4
D x7
