3-1
CS 49 110
DISMANTLING INSTRUCTIONS

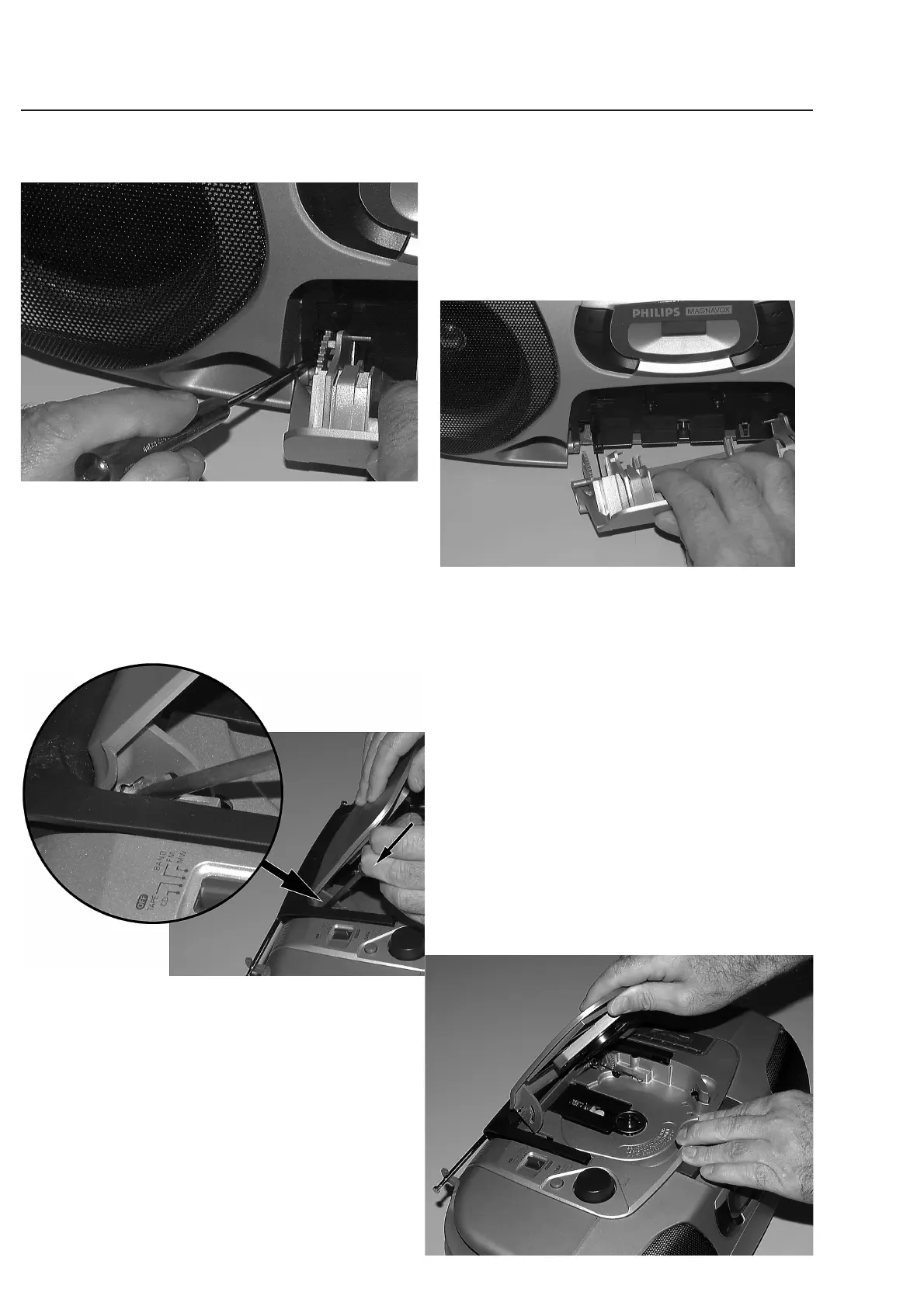

Dismantling of the Cassette Door
• Open cassette door.
• Release left catch by pressing it inwards with a screwdriver
as shown in picture 1.
• Pull door on left side up as shown in picture 2.
• Right catch will now be released automatically.
picture 1
picture 2
Dismantling of the CD Door
• Open CD door.
• Release left catch by pressing it inwards with a screwdriver
as shown in picture 3.
• Pull door on left side up as shown in picture 4.
• Right catch will now be released automatically.
picture 3
picture 4
