• Remove casstte door as described in chapter 3-1.
• Insert testcassette SBC420 (4822 397 30071)
directly into cassette compartment and play
10kHz part.
• Adjust right hand screw for max. output and
left channel = right channel.
3-6
CS 49 115
SERVICE HINTS

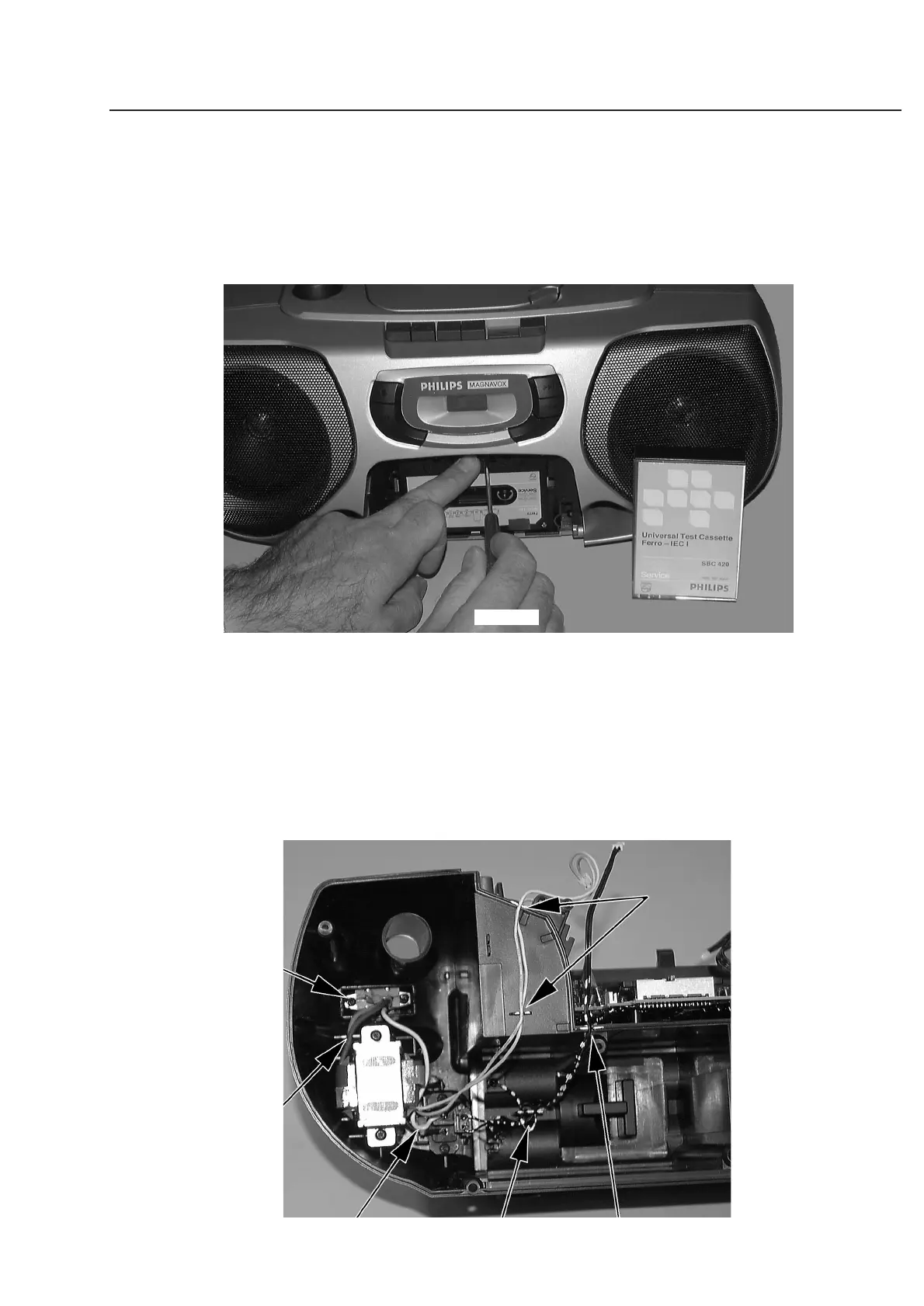

Alignment of AZIMUTH
picture 14
Details wire routing of mains transformer
picture 15
Wire routing has to be carried out as shown in picture
15 in order to:
•f
ulfil safety requirements and
• obtain tight speaker boxes
