Mechanical and Dismantling Instructions
Dismantling Instruction
Figure 5
Figure 6
Detailed information please refer to the model set.

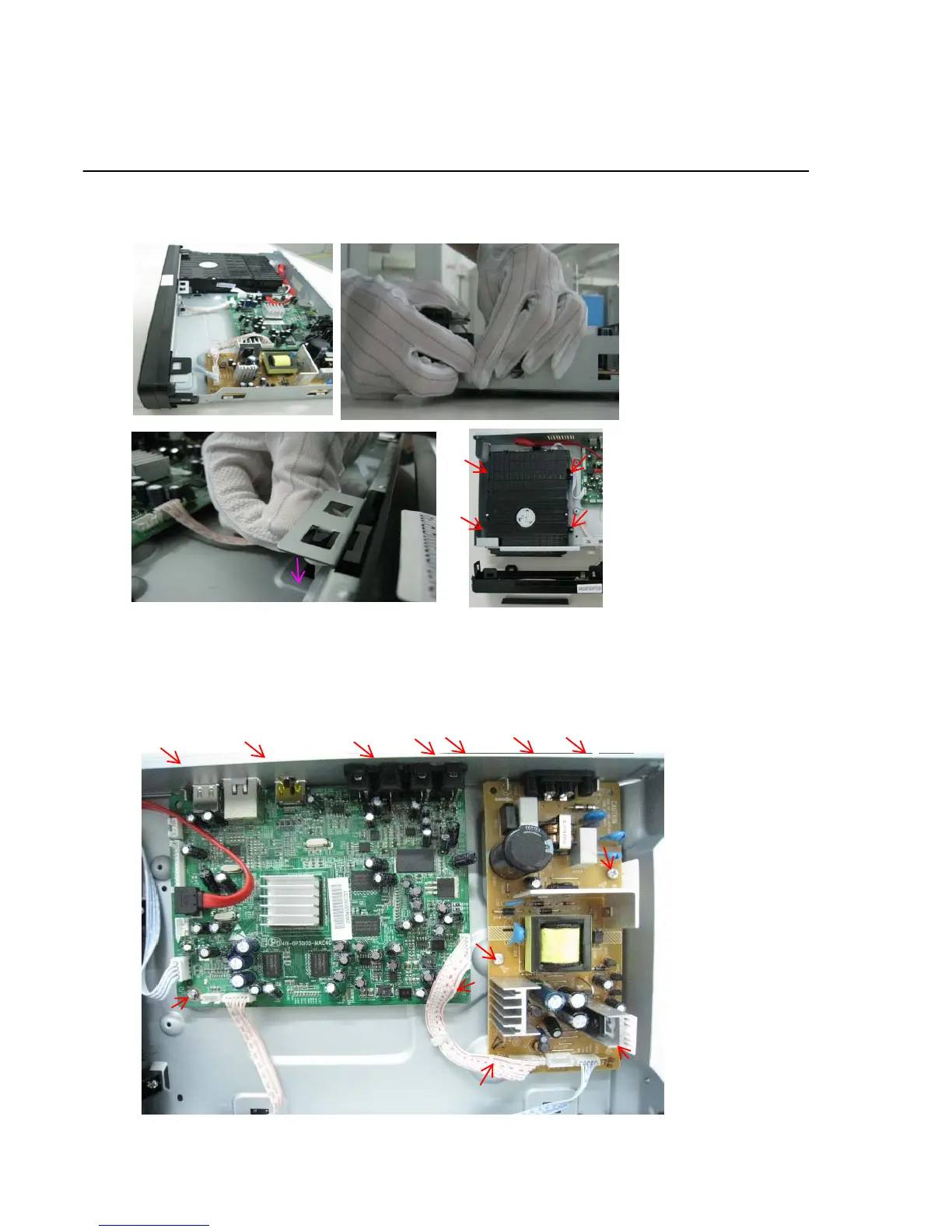

Step6: Dismantling Main Board, first disconnect the connector (J320), and then remove 7 screws. (Figure 6)
Step7: Disconnect connector (CN504, CN502) and remove 6 screws on Power Board to dismantle the Power Board. (Figure 6)
Step5: Dismantling Loader, disconnect the 1 connector (J303) aiming in the below figure, and remove 4 screws that
connects the loader and the bottom cabinet. (Figure 5)
