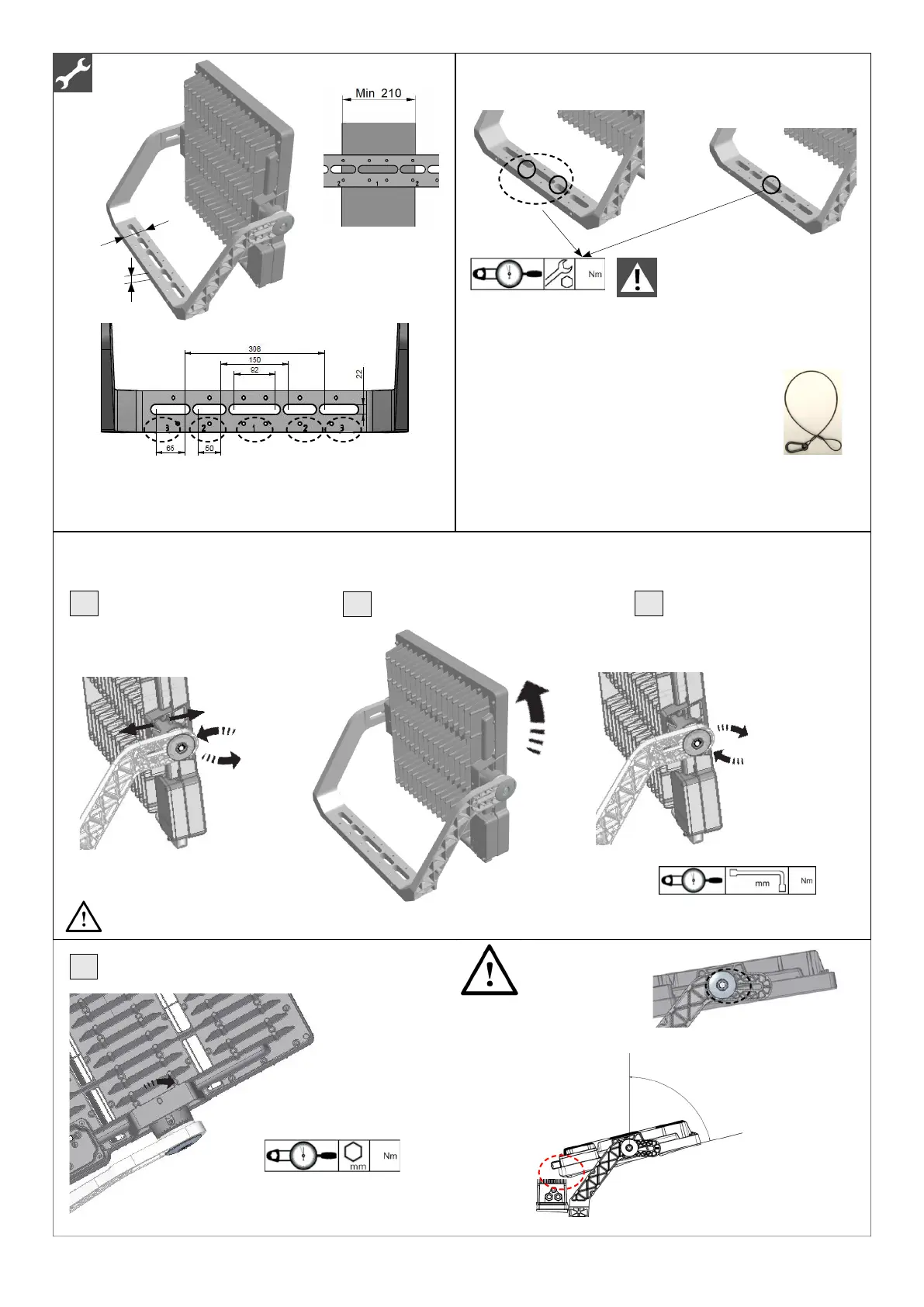

Philips BVP528 - Installation and Mounting; Screw Mounting Procedures; Important Safety and Usage Notes

FLAT WASHER NEEDED
ACCORDING TO
DIN9021
In case of using only one xation point
and if the luminaire is higher >3m, the
use of a 2nd xing security system is
needed
The fasteners have to resist environment corrosion.
Stainless steel screws not recommended and protective coating might be
applied.
30mm
2XM20 SCREW 1XM20 SCREW
1
2
3
4
If luminaire placed as
shown, rotation angle
limited (only HGB
version, BV version no
limitation):
28º<angle<76º
angle<28º or >76º


30
Attention: do not hold the luminaire by the cable gland
100
5
25
17
50
• In case of using only one screw, use uniquely the position 1. Never use
one single screw in Pos.2 or Pos.3
• If using the Pos.2, the second screw must be in the opposite Pos. 2.
• If using the Pos.3, the second screw must be in the opposite Pos. 3.
92,5mm
A cable can be used as second security system.
Section has to be enough for the installation and support
environmental conditions (e.g. sheathed steel)
4/24
