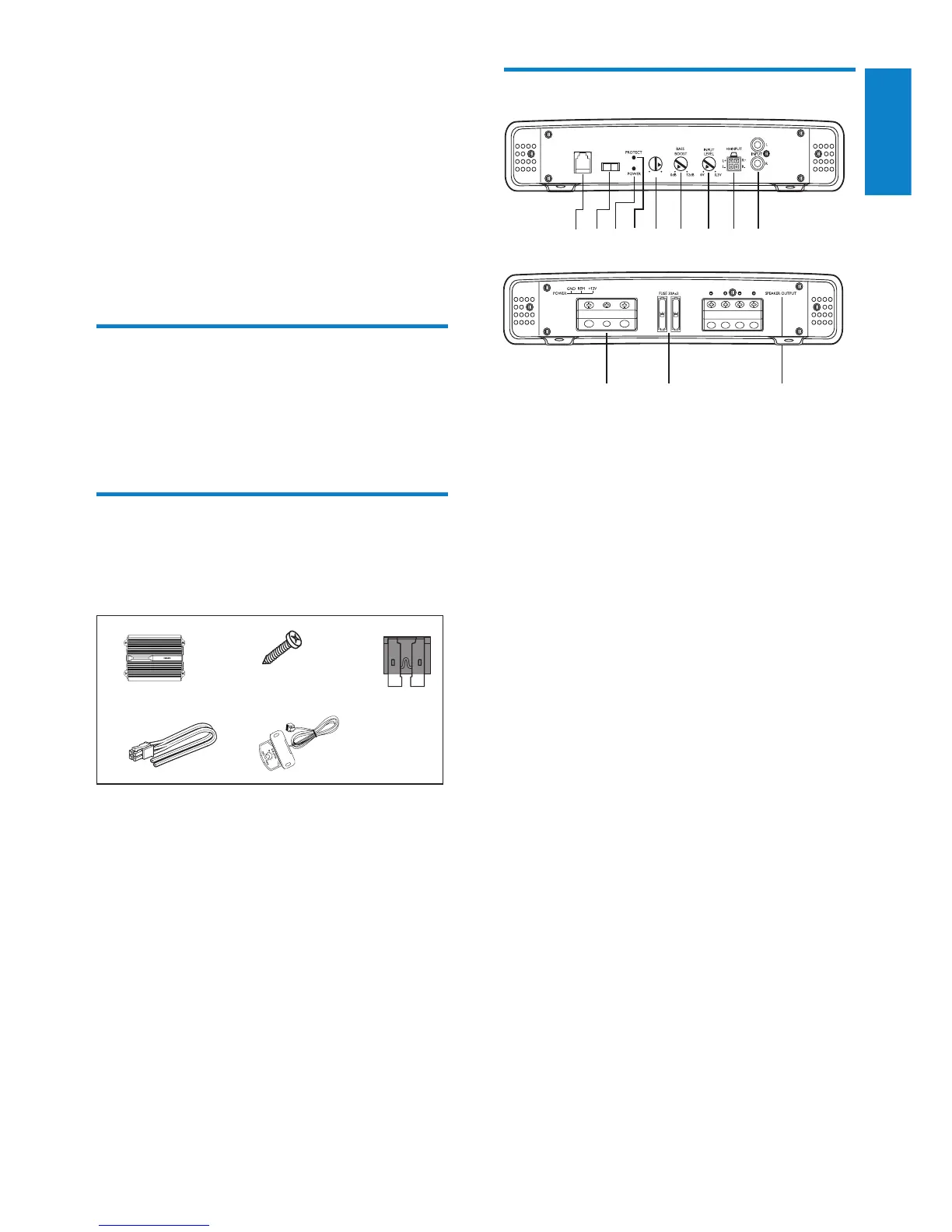

Overview of the main unit
a INPUT L/R
Connect car audio with RCA cable.•
b HI INPUT
Connect car audio with the supplied •
high input connector.
c INPUT LEVEL
Adjust input level (0.3V to 6V).•
d BASS BOOST
Boost the frequencies at around •
45Hz to a maximum of 12dB.
e SUBWOOFER
Adjust low-pass-lter frequency for •
subwoofer.
f PROTECT
Lights in red when the PROTECTOR •
is activated.
g POWER
Light in blue when power is turned on.•
h SUBSONIC ON/OFF
Switch on or off the subsonic lter.•
i REMOTE LEVEL CONTROL
External remote controller for •
volume level control.
j POWER (GND/REM/+12V)
Connect +12V DC power cable, •
ground wire and remote wire..
k Fuse: 30A x 2
l SPEAKER OUTPUT
Connect to subwoofers.•
a
lk
j
bc
dhi
320Hz
30Hz
SUB
WOOFER
SUBSONIC
ON OFF
REMOTE
LEVEL CONTROL
feg
2 Your car power
amplifier
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the amplier, you can enjoy high quality
sound performance with powerful bass and
beats.
What’s in the box
Check and identify the contents of your
package:
a Amplier
b Screw_4x25mm (x4)
c Fuse (x2)
d Hi input connector
e Volume controller
ba
de
c
