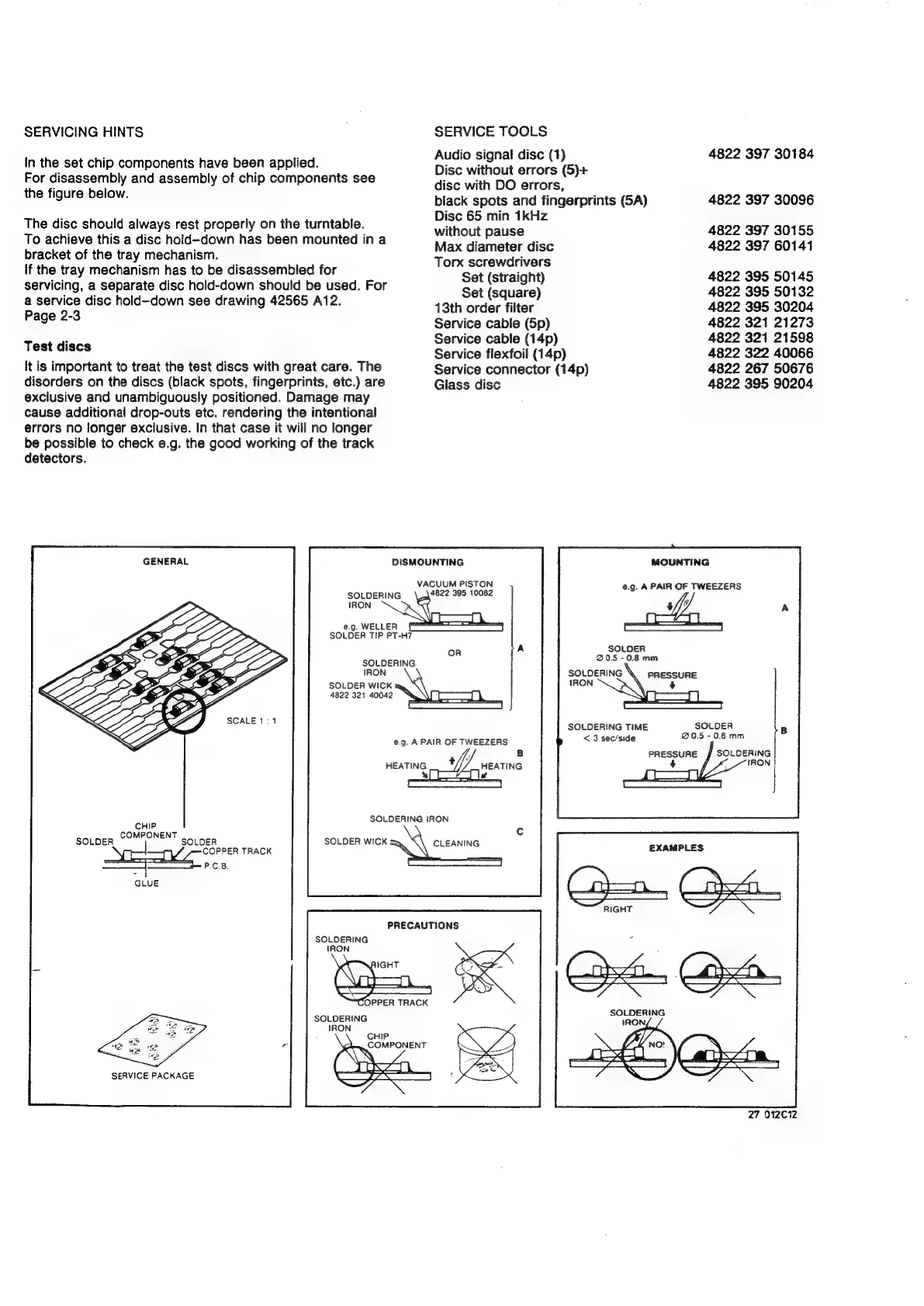

SERVICING HINTS
In the set chip components have been applied.
For disassembly and assembly of chip components see
the figure below.
The disc should always rest properly on the turntable.
To achieve this a disc hold-down has been mounted in a
bracket of the tray mechanism.
if the tray mechanism has to be disassembled for
servicing, a separate disc hold-down should be used. For
a service disc hold—down see drawing 42565 A12.
Page 2-3
Test discs
It is important to treat the test discs with great care. The
disorders on the discs (black spots, fingerprints, etc.) are
exclusive and unambiguously positioned. Damage may
cause additional drop-outs etc. rendering the intentional
errors no longer exclusive. In that case it will no longer
be possible to check e.g. the good working of the track
detectors.
GENERAL
DISMOUNTING
SERVICE TOOLS
Audio signal disc (1) 4822 397 30184
Disc without errors (5)+
disc with DO errors,
black spots and fingerprints (5A) 4822 397 30096
Disc 65 min 1kHz
without pause
Max diameter disc
Torx screwdrivers
Set (straight)
Set (square)
13th order filter
Service cable (5p)
Service cable (14p)
4822 397 30155
4822 397 60141
4822 395 50145
4822 395 50132
4822 395 30204
4822 321 21273
4822 321 21598
Service flexfoil (14p) 4822 322 40066
Service connector (14p) 4822 267 50676
Glass disc 4822 395 90204
MOUNTING
VACUUM PISTON
SOLDERING 4822 395 10082
IRON
e.g. WELLER
SOLDER TIP PT-H7
OR
SOLDERING
IRON
SOLDER WICK
4822 321 40042
e.g. A PAIR OF TWEEZERS
f B
as
HEATING /_ HEATING
% e
SOLDERING IRON
CHIP
COMPONENT
CLEANING
SOLDER LDER SOLDER WICK =
COPPER TRACK
P.C.B.
GLUE
PRECAUTIONS
SOLDERING
IRON
‘ =
OPPER TRACK
SOLDERING
JRON
CHIP
COMPONENT
SERVICE PACKAGE
e.g. A PAIR OF TWEEZERS
$ Sy
SOLDER
20.5 -0.8 mm
SOLDERING PRESSURE
IRON
+
SOLDERING TIME SOLDER
<3 sec/side 20.5 - 0.8 mm
PRESSURE SOLDERING
$
“7 IRON
EXAMPLES
Gt Ge
SOLDERING
27 012012
