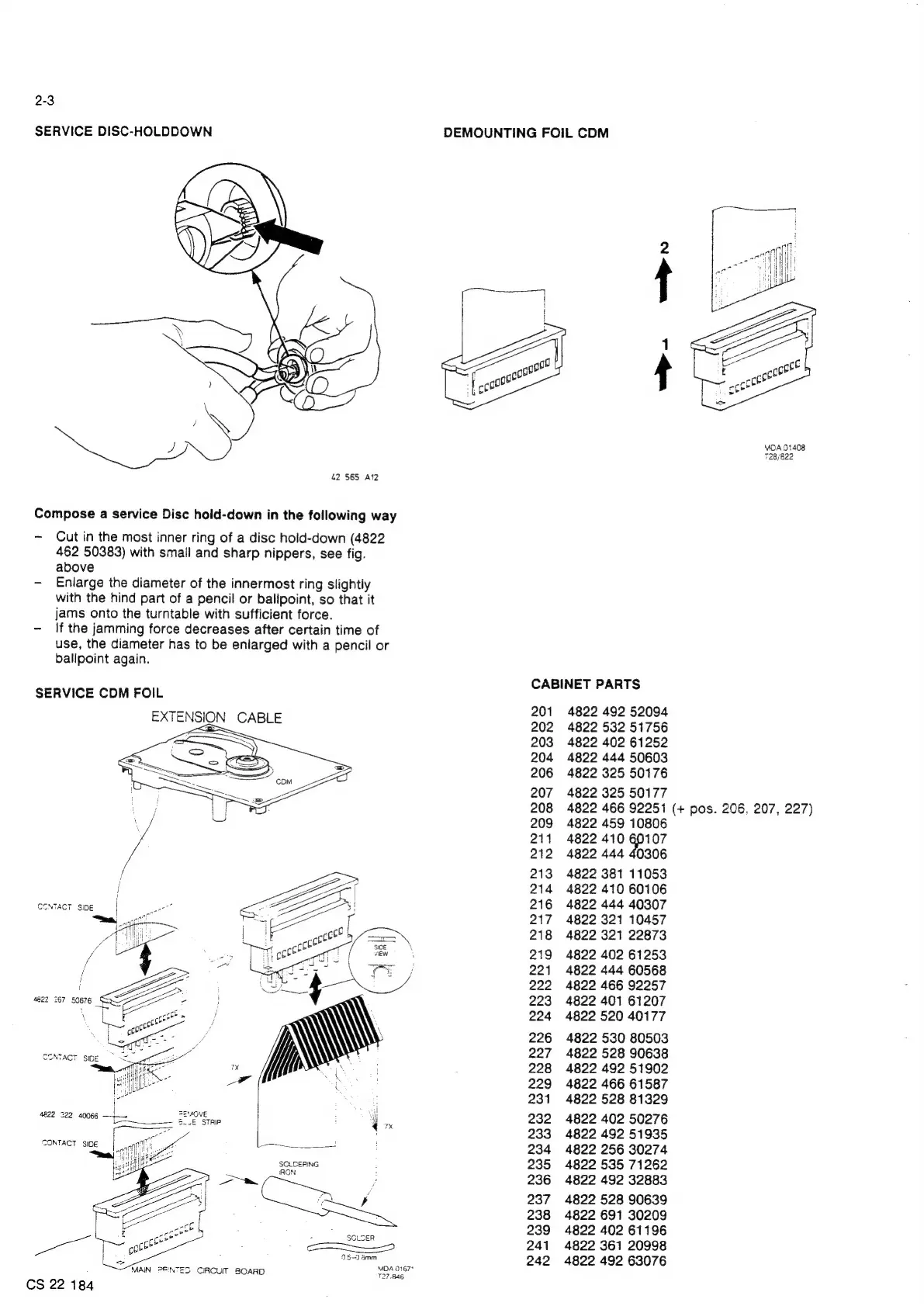

2-3
SERVICE DISC-HOLDDOWN DEMOUNTING FOIL CDM
MDA 01408
728/822
42 S65 A12
Compose a service Disc hold-down in the following way
- Cut in the most inner ring of a disc hold-down (4822
462 50383) with small and sharp nippers, see fig.
above
- Enlarge the diameter of the innermost ring slightly
with the hind part of a pencil or ballpoint, so that it
jams onto the turntable with sufficient force.
- If the jamming force decreases after certain time of
use, the diameter has to be enlarged with a pencil or
ballpoint again.
CABINET PARTS
201 4822 492 52094
202 4822 532 51756
203 4822 402 61252
204 4822 444 50603
206 4822 325 50176
207 4822 325 50177
208 4822 466 92251 (+ pos. 206, 207, 227)
209 4822 459 10806
211 4822 410 60107
212 4822 444 40306
213 4822 381 11053
214 4822 410 60106
216 4822 444 40307
217 4822 321 10457
218 4822 321 22873
219 4822 402 61253
221 4822 444 60568
222 4822 466 92257
223 4822 401 61207
224 4822 520 40177
226 4822 530 80503
227 4822 528 90638
228 4822 492 51902
229 4822 466 61587
231 4822 528 81329
SERVICE CDM FOIL
EXTENSION CABLE
CONTACT SIDE
A
4622
222
«ous
—P—-HEYOME
|
\
y
232
4822
402
50276
=
i.
233
4822
492
51935
CONTACT
side
TO
234
4822
256
30274
SOLDERING
235
4822
535
71262
=~ : 236 4822 492 32883
ne 237 4822 528 90639
: 238 4822 691 30209
eceee = 239 4822 402 61196
: 241 4822 361 20998
Paes 242 4822 492 63076
MAIN
PEINTES
CIRCUIT
BOARD
res
CS 22 184
