Philips CD692 - Mechanica! Partslist

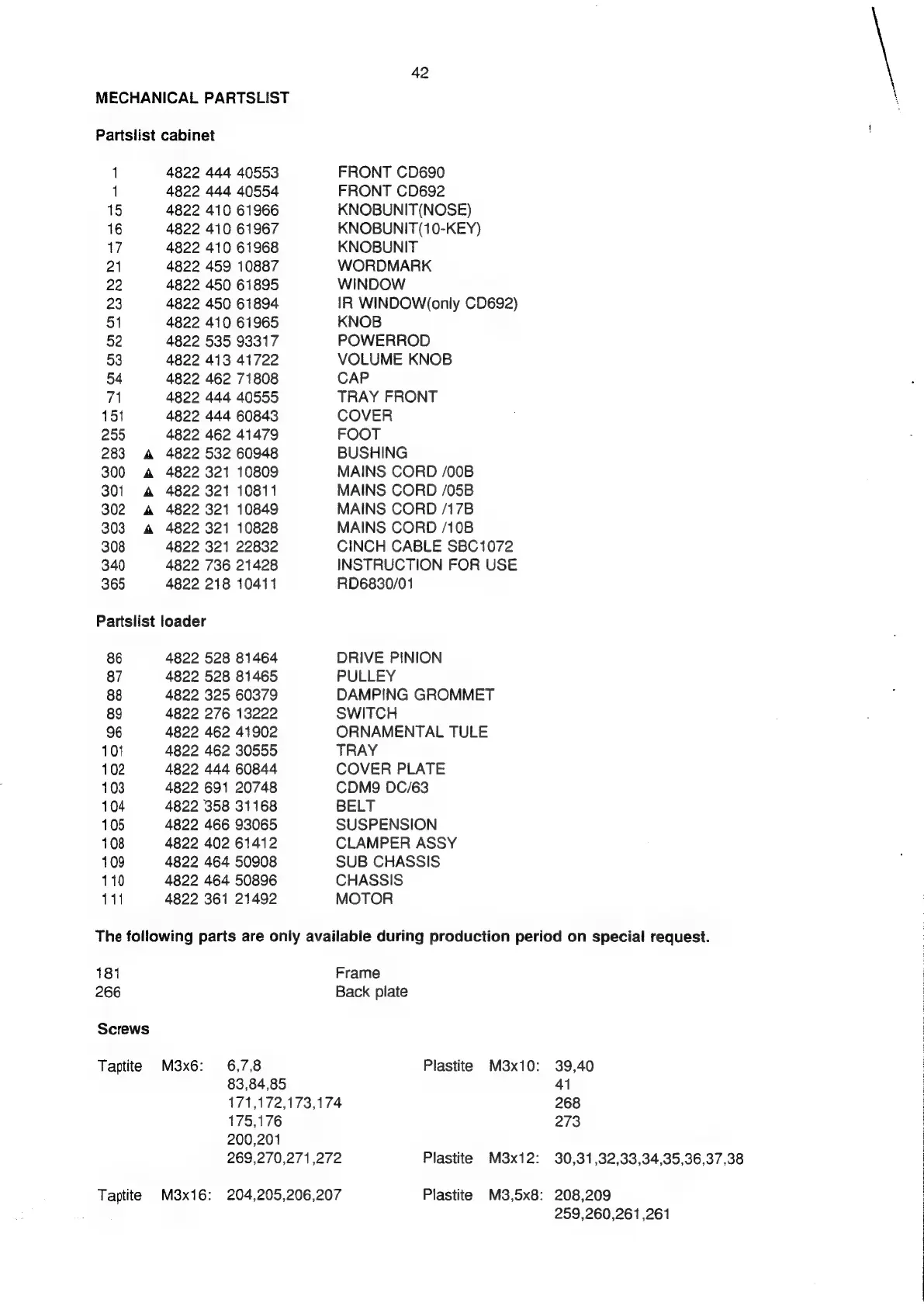

MECHANICAL PARTSLIST
Partslist cabinet
1 4822 444 40553
| 4822 444 40554
15 4822 410 61966
16 4822 410 61967
17 4822 410 61968
21 4822 459 10887
22 4822 450 61895
23 4822 450 61894
51 4822 410 61965
52 4822 535 93317
53 4822 413 41722
54 4822 462 71808
71 4822 444 40555
151 4822 444 60843
255 4822 462 41479
283 A 4822 532 60948
300 A 4822 321 10809
301 A 4822 321 10811
302 A 4822 321 10849
303 A 4822 321 10828
308 4822 321 22832
340 4822 736 21428
365 4822 218 10411
Partslist loader
86 4822 528 81464
87 4822 528 81465
88 4822 325 60379
89 4822 276 13222
96 4822 462 41902
101 4822 462 30555
102 4822 444 60844
103 4822 691 20748
104 4822 358 31168
105 4822 466 93065
108 4822 402 61412
109 4822 464 50908
110 4822 464 50896
111 4822 361 21492
42
FRONT CD690
FRONT CD692
KNOBUNIT(NOSE)
KNOBUNIT(10-KEY)
KNOBUNIT
WORDMARK
WINDOW
IR WINDOW(only CD692)
KNOB
POWERROD
VOLUME KNOB
CAP
TRAY FRONT
COVER
FOOT
BUSHING
MAINS CORD /00B
MAINS CORD /05B
MAINS CORD /17B
MAINS CORD /10B
CINCH CABLE SBC1072
INSTRUCTION FOR USE
RD6830/01
DRIVE PINION
PULLEY
DAMPING GROMMET
SWITCH
ORNAMENTAL TULE
TRAY
COVER PLATE
CDM9 DC/63
BELT
SUSPENSION
CLAMPER ASSY
SUB CHASSIS
CHASSIS
MOTOR
The following parts are only available during production period on special request.
184 Frame
266 Back plate
Screws
Taptite M3x6: 6,7,8 Plastite M3x10: 39,40
83,84,85 41
171,172,173,174 268
175,176 273
200,201
269,270,271 ,272 Plastite M3x12: 30,31,32,33,34,35,36,37,38
Taptite M3x16: 204,205,206,207
Plastite M3,5x8: 208,209
259,260,261 ,261
