Philips CD950 - Controls and Connections

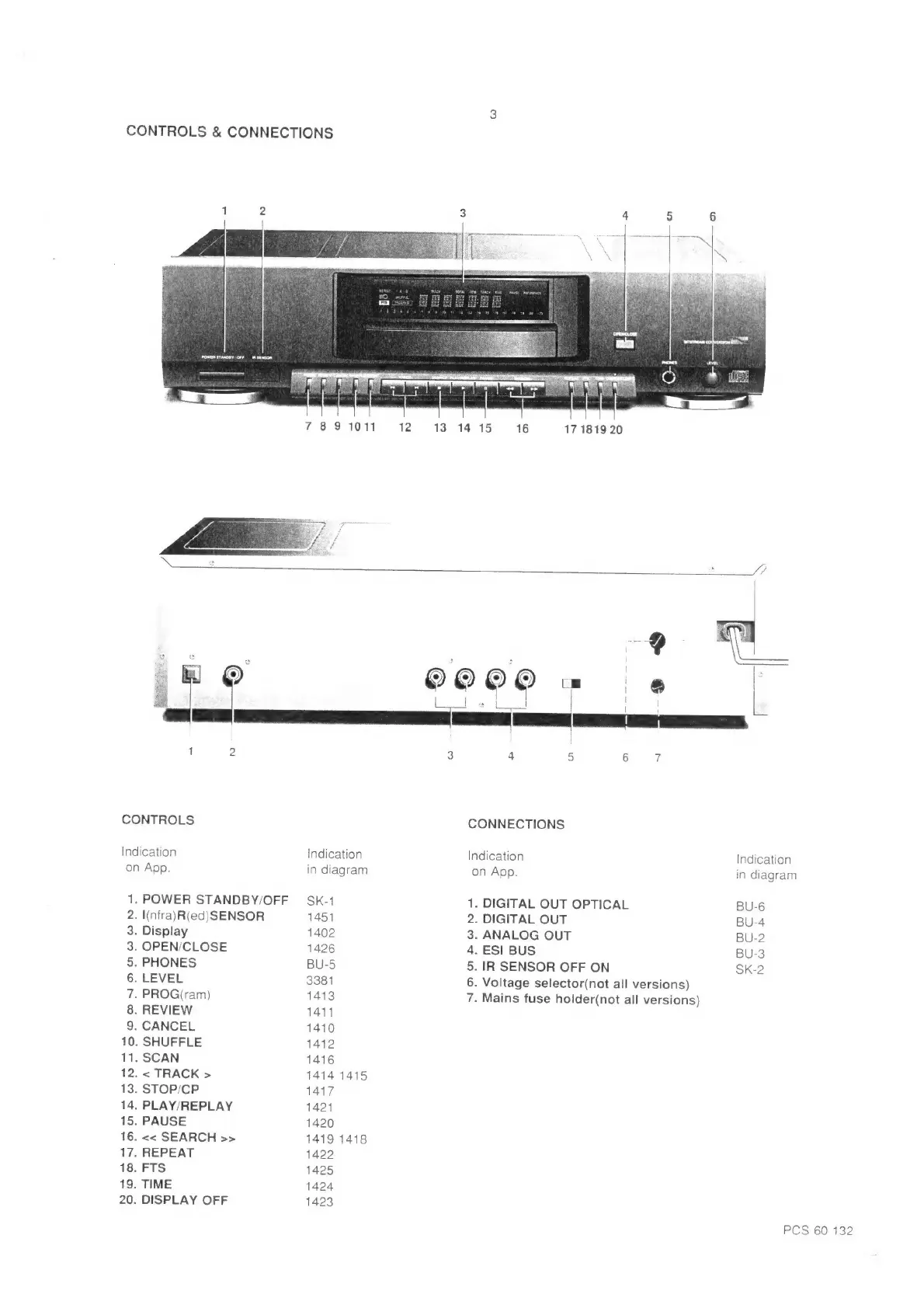

CONTROLS & CONNECTIONS
POWER STANDBY! OFF SENSOR
12 13 14 15 16
17 1819 20
CONTROLS
Indication
on App.
ANonwwn
LO el ee SGWOOANOURWNHA OY
. POWER STANDBY/OFF
. I(nfra)R(ed) SENSOR
. Display
. OPEN/CLOSE
. PHONES
. LEVEL
. PROG(ram)
. REVIEW
. CANCEL
. SHUFFLE
. SCAN
. < TRACK >
. STOP/CP
. PLAY/REPLAY
. PAUSE
. << SEARCH >>
. REPEAT
. FTS
. TIME
. DISPLAY OFF
Indication
in diagram
SK-1
1451
1402
1426
BU-5
3381
1413
1411
1410
1412
1416
1414 1415
1417
1421
1420
1419 1418
1422
1425
1424
1423
CONNECTIONS
Indication
on App.
NOORWND —
. DIGITAL OUT OPTICAL
. DIGITAL OUT
. ANALOG OUT
. ESI BUS
. IR SENSOR OFF ON
- Voltage selector(not all versions)
. Mains fuse holder(not all versions)
Indication
in diagram
BU-6
BU-4
BU-2
BU-3
SK-2
PCS 60 132
