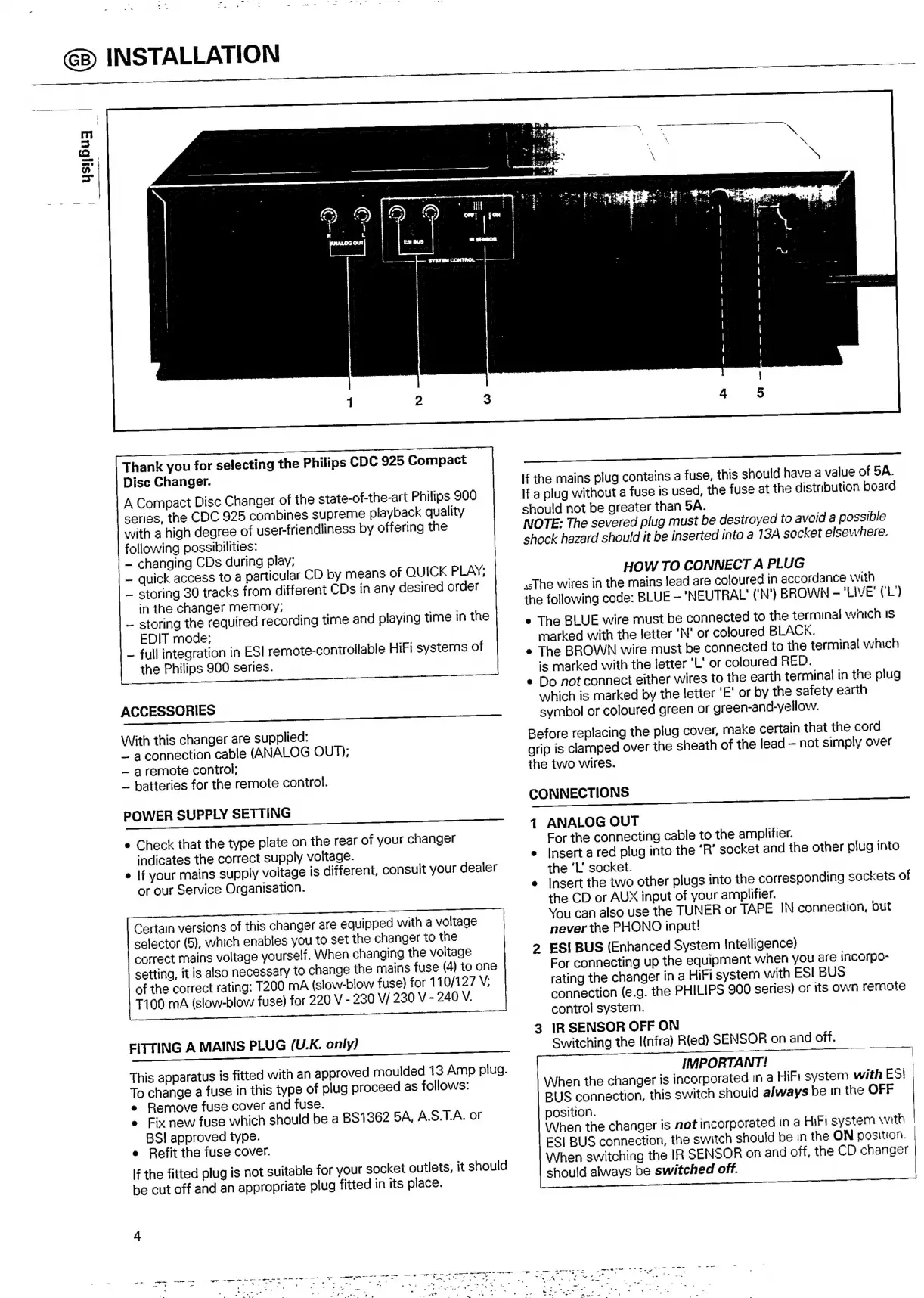

INSTALLATION
Thank
you
for
selecting
the
Philips
CDC
925
Compact
Disc
Changer.
A
Compact
Disc
Changer
of
the
state-of-the-art
Philips
900
series,
the
CDC
925
combines
supreme
playback
quality
with
a
high
degree
of
user-friendliness
by
offering
the
following
possibilities:
-
changing
CDs
during
play;
—
quick
access
to
a
particular
CD
by
means
of
QUICK
PLAY;
—
storing
30
tracks
from
different
CDs
in
any
desired
order
in
the
changer
memory;
—
storing
the
required
recording
time
and
playing
time
in
the
EDIT
mode;
—
full
integration
in
ESI
remote-controllable
HiFi
systems
of
the
Philips
900
series.
ACCESSORIES
With
this
changer
are
supplied:
—
a
connection
cable
(ANALOG
OUT);
—
a
remote
control;
—
batteries
for
the
remote
control.
POWER
SUPPLY
SETTING
e
Check
that
the
type
plate
on
the
rear
of
your
changer
indicates
the
correct
supply
voltage.
e
If
your
mains
supply
voltage
is
different,
consult
your
dealer
or
our
Service
Organisation.
Certain
versions
of
this
changer
are
equipped
with
a
voltage
selector
(5),
which
enables
you
to
set
the
changer
to
the
correct
mains
voltage
yourself.
When
changing
the
voltage
setting,
it
is
also
necessary
to
change
the
mains
fuse
(4)
to
one
of
the
correct
rating:
T200
mA
(slow-blow
fuse)
for
110/127
V;
T100
mA
(slow-blow
fuse)
for
220
V
-
230
V/
230
V
-
240
V.
FITTING
A
MAINS
PLUG
(U.K.
only)
AI
EE
This
apparatus
is
fitted
with
an
approved
moulded
13
Amp
plug.
To
change
a
fuse
in
this
type
of
plug
proceed
as
follows:
e
Remove
fuse
cover
and
fuse.
e
Fix
new
fuse
which
should
be
a
BS1362
5A,
ASTA
or
BS!
approved
type.
e
Refit
the
fuse
cover.
If
the
fitted
plug
is
not
suitable
for
your
socket
outlets,
it
should
be
cut
off
and
an
appropriate
plug
fitted
in
its
place.
z
ar-
emn
Mm
MlM
EE
me
|
See
a
wa
=
Së
’
Pa
Ls
Ve
ew
"N
2%
-
-
a
PR
.
= . r
- «nF
=
aa "WS
A
ee
If
the
mains
plug
contains
a
fuse,
this
should
have
a
value
of
5A.
If
a
plug
without
a
fuse
is
used,
the
fuse
at
the
distribution
board
should
not
be
greater
than
5A.
NOTE:
The
severed
plug
must
be
destroyed
to
avoid
a
possible
shock
hazard
should
it
be
inserted
into
a
13A
socket
elsewhere.
HOW
TO
CONNECT
A
PLUG
«The
wires
in
the
mains
lead
are
coloured
in
accordance
with
the
following
code:
BLUE
-
'NEUTRAL'
UNY
BROWN
—'LIVE'
IL)
e
The
BLUE
wire
must
be
connected
to
the
terminal
which
ts
marked
with
the
letter
'N'
or
coloured
BLACK.
e
The
BROWN
wire
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
coloured
RED.
e
Do
not
connect
either
wires
to
the
earth
terminal
in
the
plug
which
is
marked
by
the
letter
'E'
or
by
the
safety
earth
symbol
or
coloured
green
or
green-and-yellow.
Before
replacing
the
plug
cover,
make
certain
that
the
cord
grip
is
clamped
over
the
sheath
of
the
lead
—
not
simply
over
the
two
wires.
CONNECTIONS
1 ANALOG OUT
For
the
connecting
cable
to
the
amplifier.
e
Insert
a
red
plug
into
the
H
socket
and
the
other
plug
into
the
‘LU’
socket.
e
Insert
the
two
other
plugs
into
the
corresponding
sockets
of
the
CD
or
AUX
input
of
your
amplifier.
You
can
also
use
the
TUNER
or
TAPE
IN
connection,
but
never
the
PHONO
input!
2
ESI
BUS
(Enhanced
System
Intelligence)
For
connecting
up
the
equipment
when
you
are
incorpo-
rating
the
changer
in
a
HiFi
system
with
ESI
BUS
connection
(e.g.
the
PHILIPS
900
series)
or
its
own
remote
control
system.
3
IR
SENSOR
OFF
ON
Switching
the
Infra)
Red)
SENSOR
on
and
off.
IMPORTANT!
When
the
changer
is
incorporated
in
a
HiFi
system
with
ESI
|
BUS
connection,
this
switch
should
always
be
in
the
OFF
position.
When
the
changer
is
not
incorporated
in
a
HiFi
system
with
ES]
BUS
connection,
the
switch
should
be
in
the
ON
position.
When
switching
the
IR
SENSOR
on
and
off,
the
CD
changer
should
always
be
switched
off.
