Philips CDR770 - 4.3 Demounting Loader CDL3800

Mechanical instructions
GB 9CDR 3rd gen. 4.
Figure 4-3

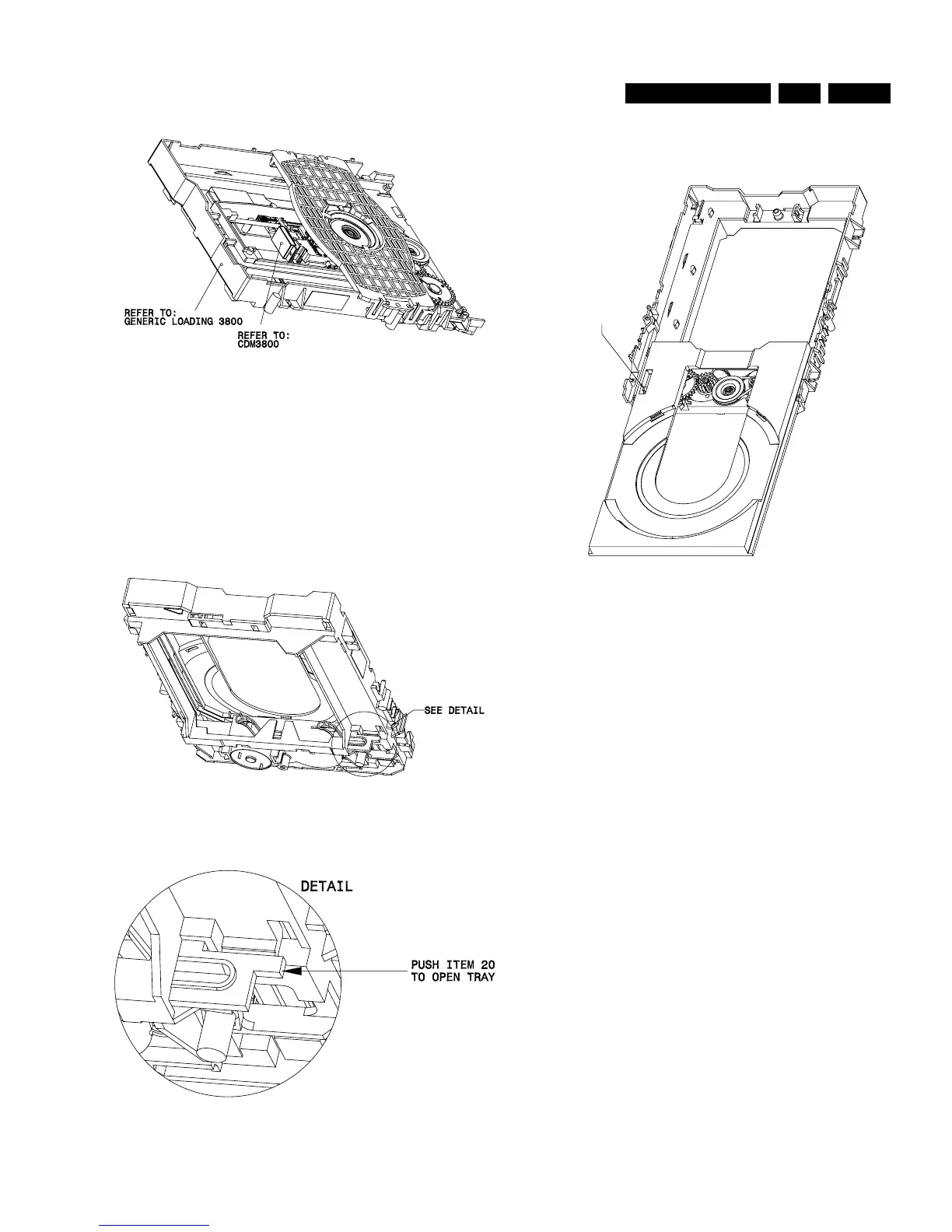

4.3 DEMOUNTING LOADER CDL3800
Remove the following items starting with:
(For the item numbers refer to the Exploded Views CDL3800,
figure 4.2)
4.3.1 Release and remove tray
Push to open the tray on the rack (item 20)
Figure 4-4
Figure 4-5
Tray
Pull out the tray (item 21) until it stucks. Press the lock at the
left side of the tray upwards. Pull out the tray.
Figure 4-6
Tray motor assey
Remove the tray motor belt (item 17).
Loosen the motorspring (item 3) with a pair of tweezers or a
screwdriver via the rectangular hole at the right side of the tray
motor.
Clamper bridge
Bend the locks-profiles on both sides of the clamper bridge
(item 41) carefully to the outside and lift up the clamper bridge.
CDM
Place the loader upside down and remove the motorspring
(item 13) with a pair of tweezers or a screwdriver, but hold the
CDM so it can’t fall down.
Rack
First remove the rack spring (item 32) by unscrewing items 11
and 12.
CL06532018_003.eps
090300
CL06532018_004.eps
210200
CL06532018_005.eps
210200
PULL TO REMOVE TRAY
CL06532018_006.eps
210200
