DISMANTLING INSTRUCTIONS
Dismantling the CDR module
• Remove 3 screws as as indicated in picture 12.
• Disconnect all cables.
• Move the module backwards to release the catch on
pos. 205 (see exploded view)
• Raise the module on the rear and turn it out.

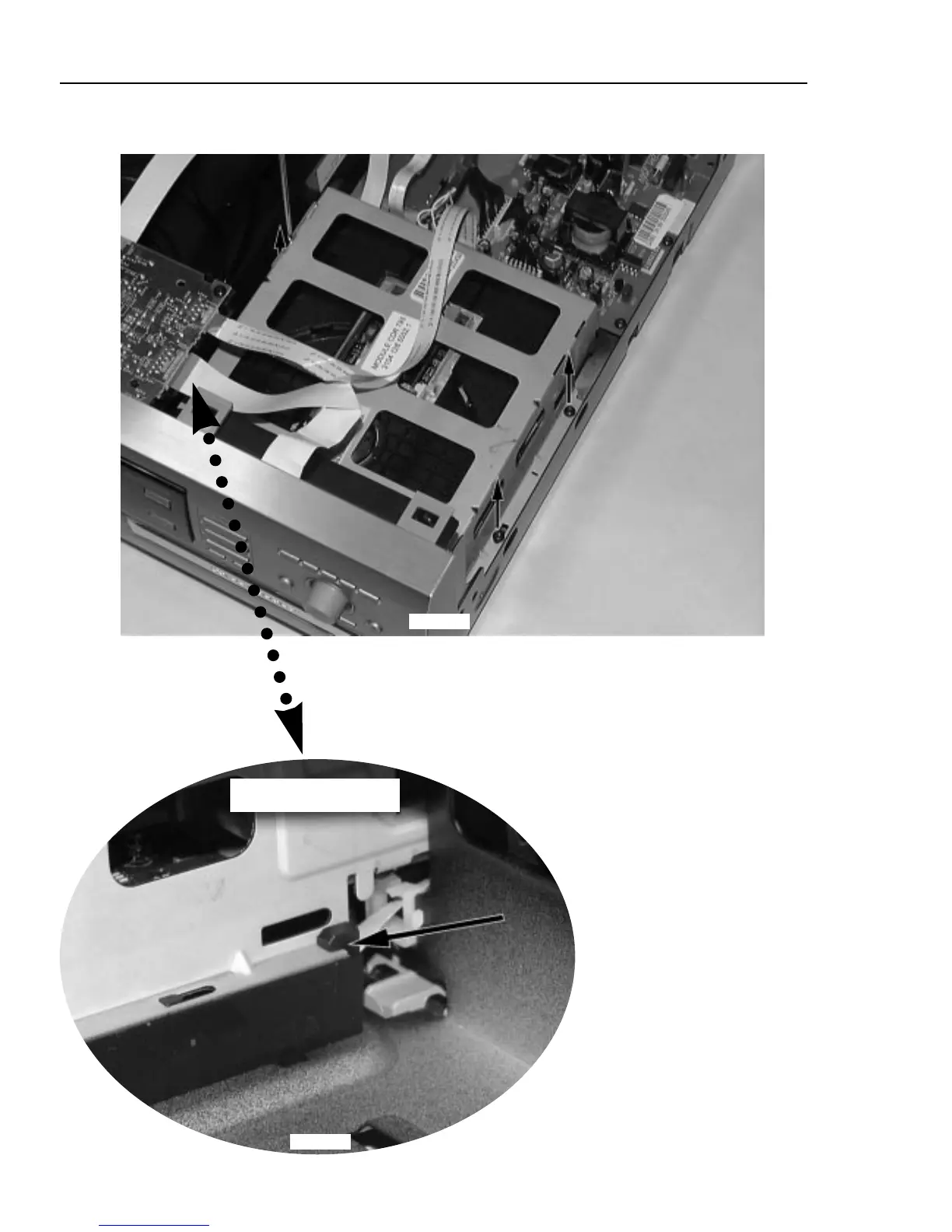

picture 12
picture 13
Fixation by a catch on
right front-side
