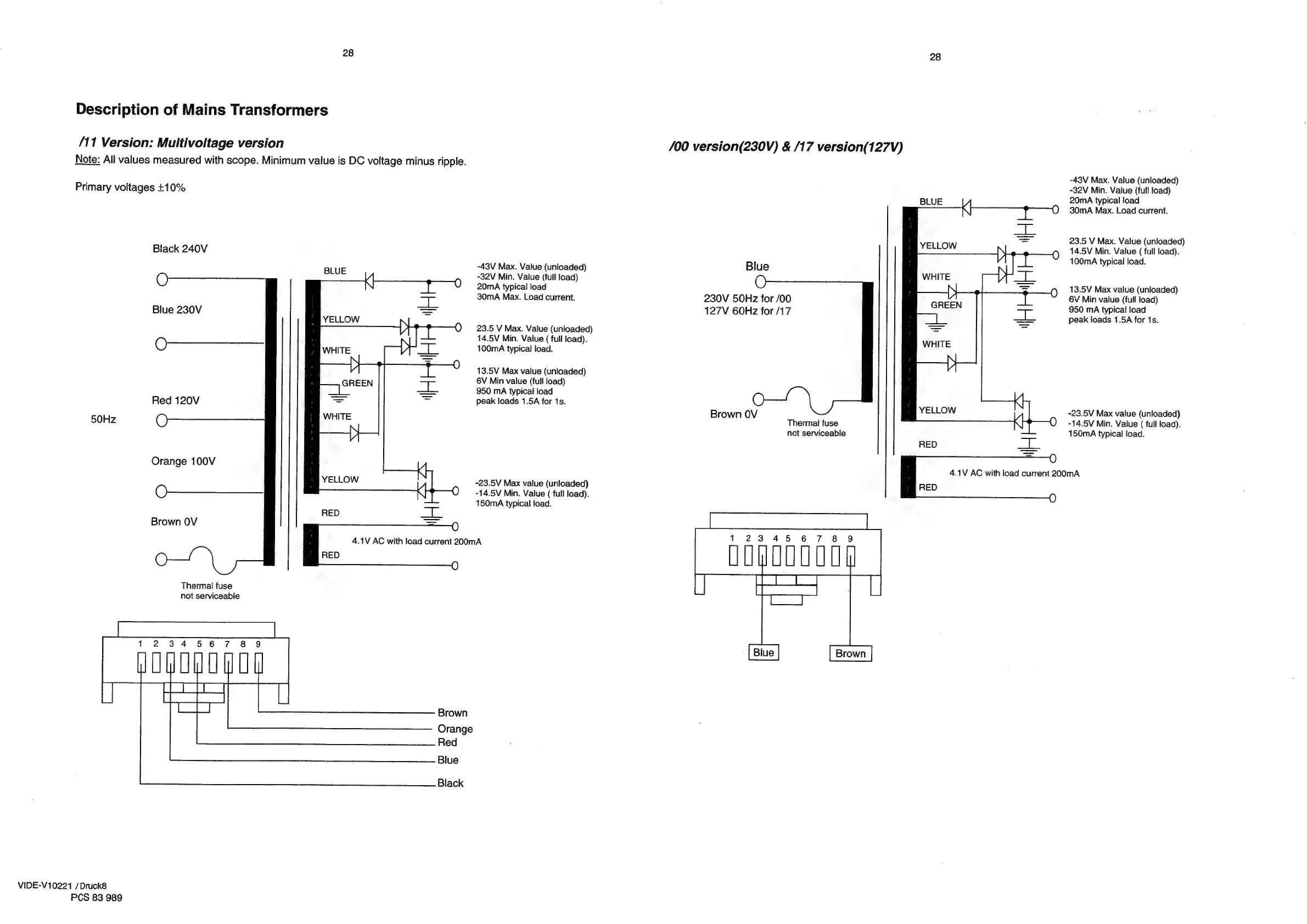

Description of Mains Transformers
/11 Version: Multivoltage version
Note: All values measured with scope. Minimum value is DC voltage minus ripple.
Primary voltages +10%
Black 240V
-43V Max. Value (unloaded)
O
-32V
Min.
Value
(full
load)
20mA typical load
30mA Max. Load current.
Blue 230V
23.5 V Max. Value (unloaded)
14.5V Min. Value ( full load).
100mA typical load.
13.5V Max value (unloaded)
6V Min value (full load)
950 mA typical load
Red 120V peak loads 1.5A for 1s.
50Hz
Orange 100V
Q——
Brown OV
-23.5V Max value (unloaded)
-14.5V Min. Value ( full load).
150mA typical load.
RED —L
4.1V AC with load current 200mA
RED
Thermal fuse
not serviceable
Brown
Orange
Red
Blue
Black
VIDE-V10221 /Druck8
PCS 83 989
28
/00 version(230V) & /17 version(127V)
Blue
230V 50Hz for /00
127V 60Hz for /17
Brown 0V
Thermal fuse
not serviceable
RED aM
-43V Max. Value (unloaded)
-32V Min. Value (full load)
20mA typical load
30mA Max. Load current.
23.5 V Max. Value (unloaded)
14.5V Min. Value ( full load).
100mA typical load.
13.5V Max value (unloaded)
6V Min value (full load)
950 mA typical load
peak loads 1.5A for 1s.
-23.5V Max value (unloaded)
-14.5V Min. Value ( full load).
150mA typical load.
4.1V AC with load current 200mA
