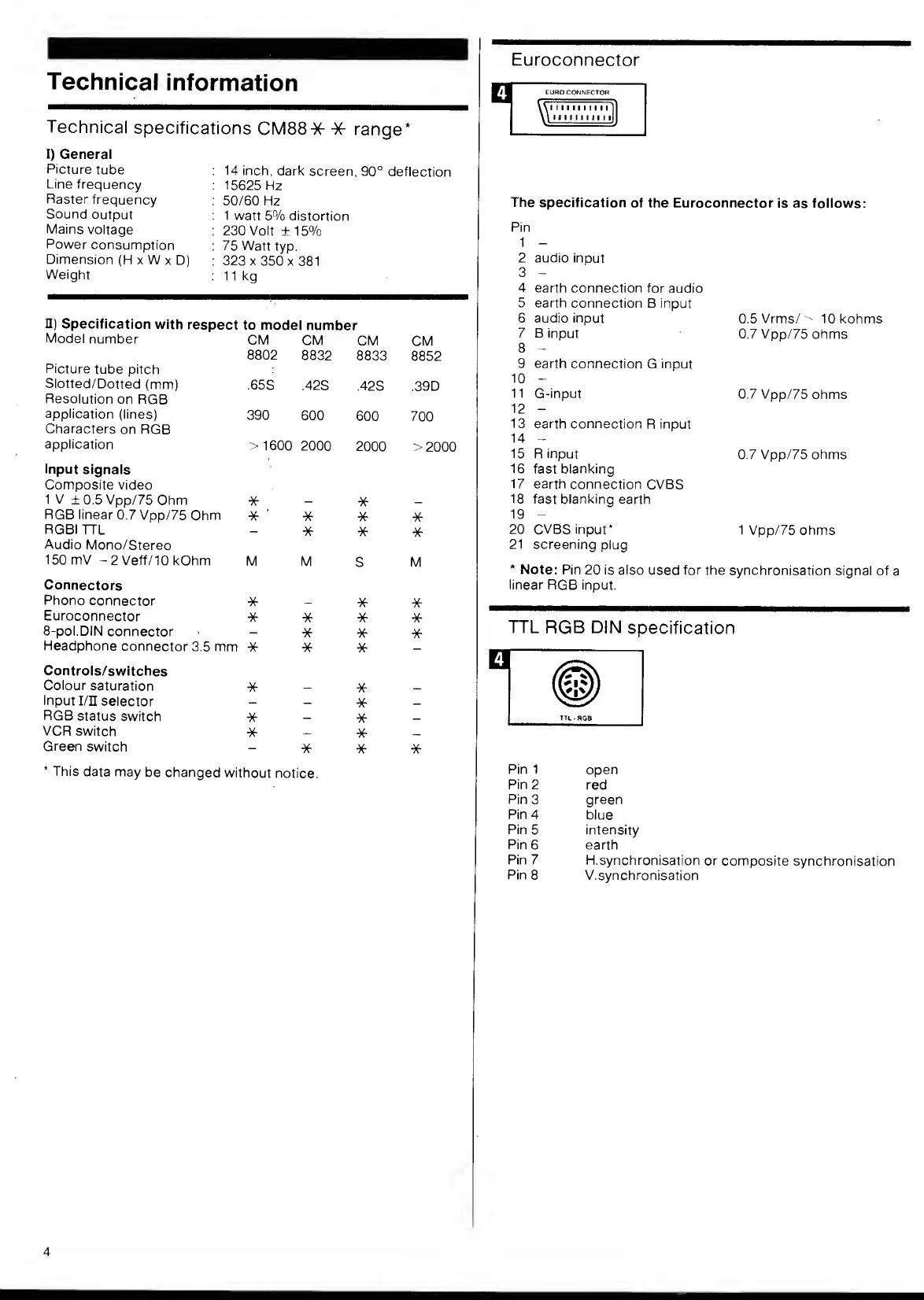

Technical information
Technical specifications CM88* * range'
Picture tube
14 inch, dark screen
, 90°
deflection
Line frequency
15625 Hz
Raster frequency
50/60 Hz
Sound output
1 watt 5% distortion
Mains voltage
230 Volt ± 15%
Power consumption
75 Watt typ
Dimension (H x W x D)
323 x 350 x 381
Weight
11 kg
n) Specification with respect to model number
Model number
CM
CM
CM
CM
8802
8832
8833
8852
Picture tube pitch
Slotted/Dotted (mm)
65S
42S
42S .39D
Resolution on RGB
application (lines)
390
600
600
700
Characters on RGB
application
> 1600
2000
2000
>2000
Input signals
Composite video
1 V ±0.5 Vpp/75 Ohm
*
*
RGB linear 0.7 Vpp/75 Ohm *'
*
* *
RGBI TTL
Audio Mono/Stereo
—
*
*
*
150 mV -2 Veff/10 kOhm
M
M
S
M
Connectors
Phono connector
*
*
*
Euroconnector
*
* *
*
8-pol.DIN connector
-
*
*
*
Headphone connector 3.5 mm *
*
*
-
Controls/switches
Colour saturation
*
*
Input I/H selector
- _
*
_
RGB status switch
*
_
*
_
VCR switch
*
_
*
__
Green switch
-
*
*
*
* This data may be changed without notice.
Euroconnector
EURO CONNECTOR
I I I I I II I I I I '
\ \ I I I I I I I I I I I
The specification of the Euroconnector is as follows:
Pin
1 -
2 audio input
3 -
4 earth connection for audio
5 earth connection B input
6 audio input
7 B input
8 -
9 e arth connection G input
10 -
11 G-input
12 -
13 earth connection R input
14 -
15 R input
16 fast blanking
17 earth connection CVBS
18 fast blanking earth
19 -
20 CVBS input*
21 screening plug
0.5 Vrms/ > 10 kohms
0.7 Vpp/75 ohms
0.7 Vpp/75 ohms
0.7 Vpp/75 ohms
1 Vpp/75 ohms
* Note: Pin 20 is also used for the synchronisation signal of a
linear RGB input.
TTL RGB DIN specification
TTL;RGB
Pin 1
open
Pin 2
red
Pin 3 green
Pin 4
blue
Pin 5
intensity
Pin 6 earth
Pin 7
H.synchronisation or composite synchronisation
Pin 8
V.synchronisation
