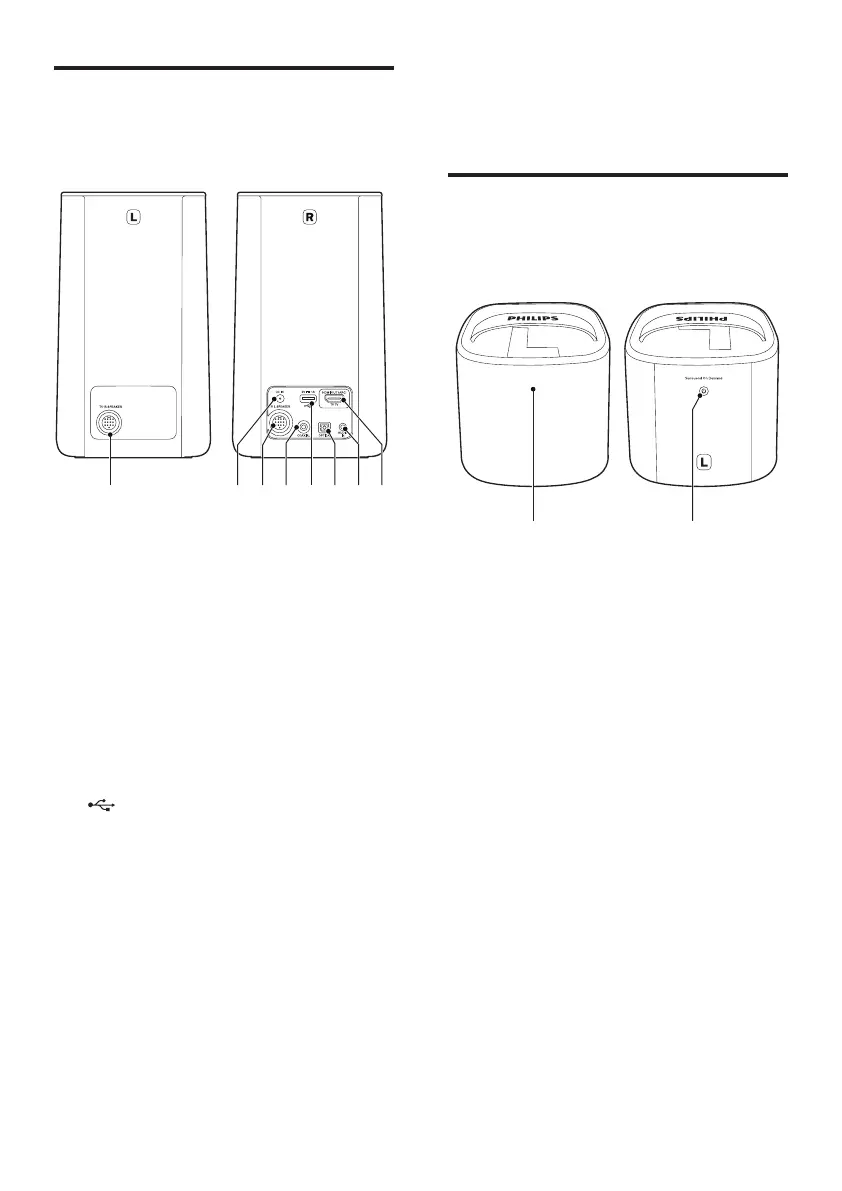

Connectors
This section includes an overview of the
connectors available on this product.
a TO R SPEAKER
Connect to the right base speaker.
b DC IN
Connect to the power supply.
c TO L SPEAKER
Connect to the left base speaker.
d COAXIAL
Connect to a coaxial audio output on
the TV or a digital device.
e
• Connect to a USB storage device
for audio media play.
• Upgrade software of this product.
• Charge a USB device.
f OPTICAL
Connect to an optical audio output on
the TV or a digital device.
g AUDIO IN
Audio input from, for example, an MP3
player (3.5mm jack).
a cb d ef g
h
h TO TV - HDMI OUT (ARC)
Connect to the HDMI (ARC) input on
the TV.
Wireless speakers
This product comes with a pair of wireless
surround speakers.
* The illustration above is for either of
wireless surround speakers.
a LED indicaton
Red LED
• Lights up when the battery
capacity is less than 30% remaining
(undocked from the main unit).
• Blinks when the battery capacity is
less than 10% remaining (undocked
from the main unit).
• If the speaker is not wirelessly
connected to the main unit,
the LED blinks red and orange
alternatively.
White LED
• Lights up when the battery capacity
is full or more than 30% remaining
(undocked from the main unit).
• Lights up when the speaker is
wirelessly connected to the main
unit (undocked from the main unit).
a b
