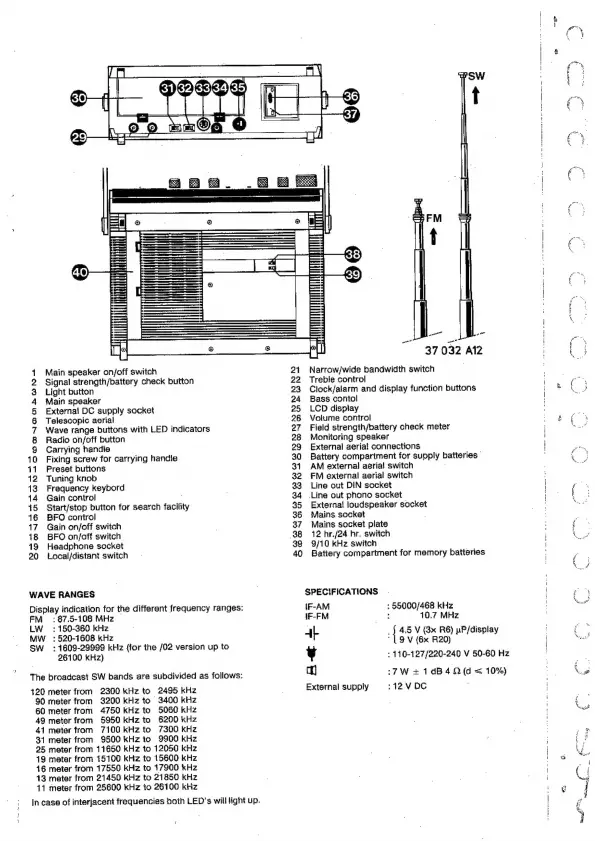

Main speaker on/off switch
Signal strength/battery check button
Light button
Main speaker
Externai DC supply socket
Telescopic aerial
Wave range buttons with LED indicators
Radio on/off button
Carrying handie
Fixing screw for carrying handle
Preset butions
12 Tuning knob
13 Frequency keybord
14 Gain control
15 Start/stop button for search facility
16 BFO control
17. Gain on/off switch
18 BFO on/off switch
19 Headphone socket
20 Local/distant switch
—_ SCHwOOnWaohon—
at =
WAVE RANGES
Display indication for the different frequency ranges:
FM : 87.5-108 MHz
LW : 150-360 kHz
MW: 520-1608 kHz
SW: 1609-29999 kHz {for the /O2 version up to
26100 kHz}
The broadcast SW bands are subdivided as follows:
120 meter from 2300 kHz to 2495 kHz
90 meter from
60 meter from
49 meter from
41 meter from
31 meter from
3200 kHz to
4750 kHz to
5950 kHz to
7100 kHz to
9500 kHz to
3400 kHz
$060 kHz
6200 kHz
7300 kHz
9900 kHz
25 meter from 14650 kHz to 12050 kHz
19 meter from 45100 kHz to 15600 kHz
16 meter from 17550 kHz to 17906 kHz
13 meter from 21450 kHz to 21850 kHz
11 meter from 25600 kHz io 26100 kHz
In case of interjacent frequencies both LED’s will ight up.
37 032 bes
Narrow/wide bandwidth switch
Treble control
Clock/alarm and display function buttons
Bass contol
LCD display
Volume control
Field strength/battery check meter
Monitoring speaker
External aeriai connections
Battery compartment for supply batteries
AM external aerial! switch
FM external aerial switch
Line out DIN socket
.Line out phono socket
Externa! loudspeaker socket
Mains socket
Mains socket plate
12 hr./24 hr. switch
9/10 kHz switch
Battery compartment for memory batteries
