Published by Philips Domestic Appliances Page 15 of 26 For internal use only
Document No. : CSW-07-081-22188

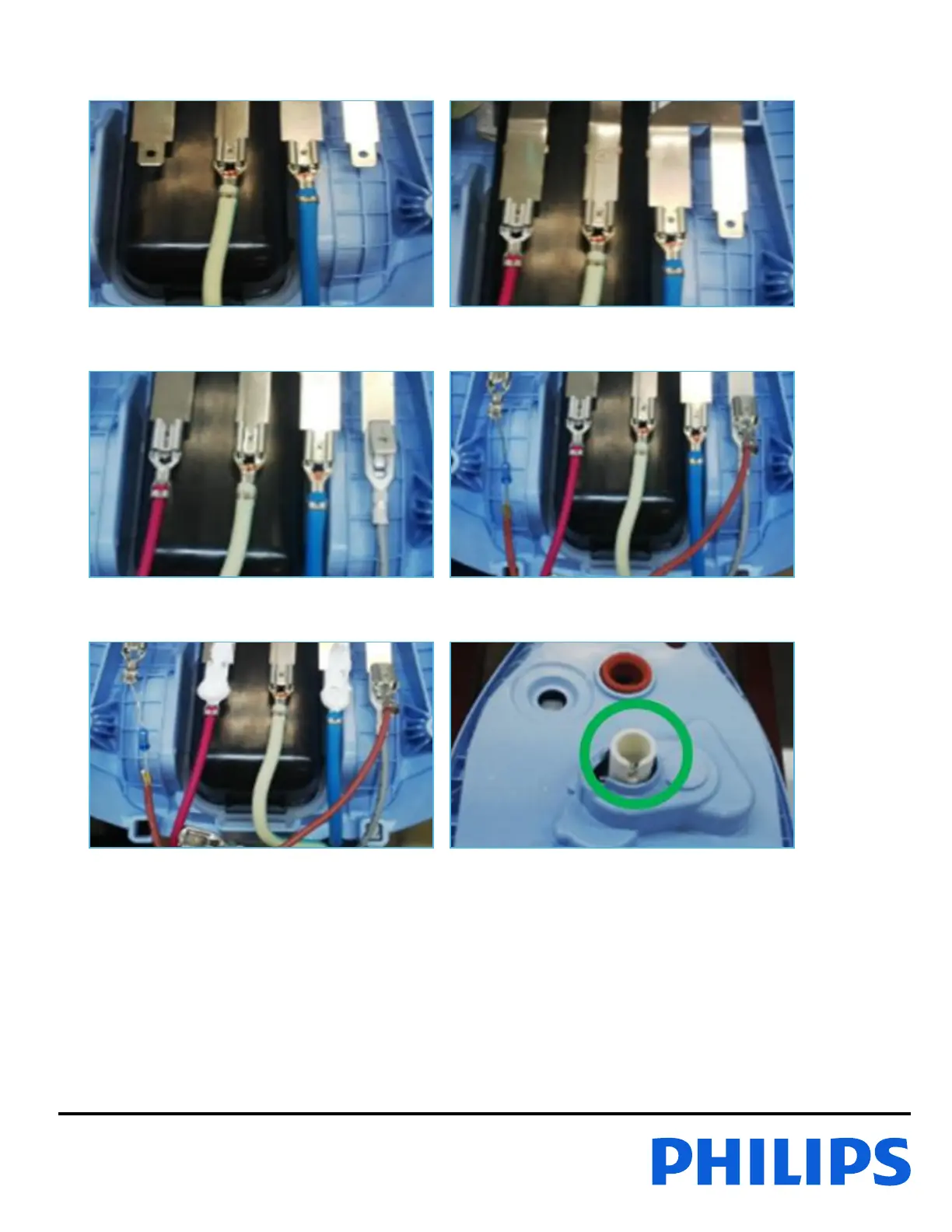

Reassembly Instruction (continue)
3. Connect earth wire of MAINSCORD 6 to earth
Frame Connector
4. Connect pink wire of ASO 1 to live Frame
Connector
5. Connect grey wire of ASO 1 to neutral Frame
Connector at the most right
6. Connect the brown wire without resistor of
Lamp Assy 9 to piggy-back connector of the
ASO 1 grey wire
7. Apply Heat Sink Paste onto pink terminal of
ASO 1 and blue terminal of MAINSCORD 6 to
Frame Connector
8. Assemble Thermostat Bush to Shaft
To Next Page
