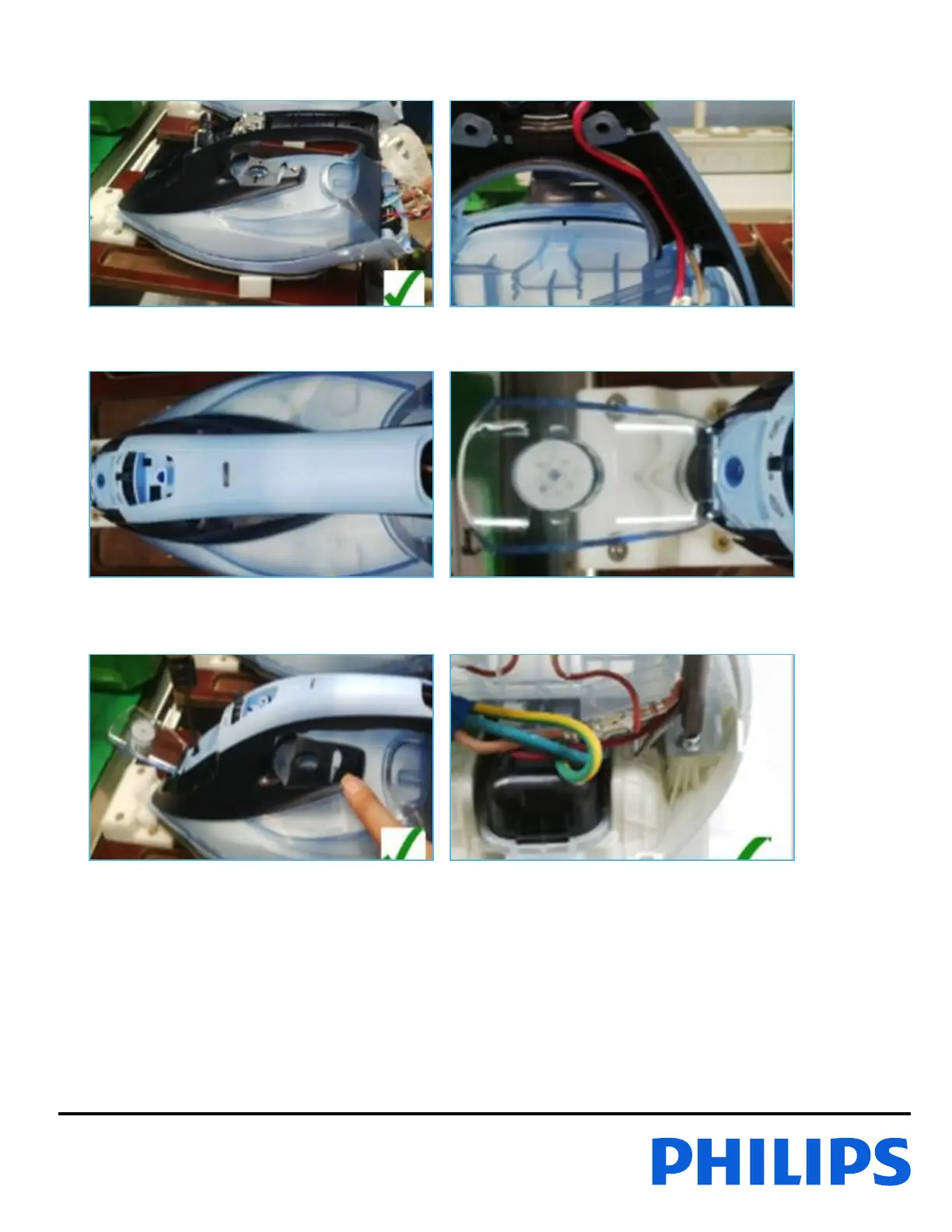

Reassembly Instruction (continue)
9. Assemble WATER TANK ASSY 7 to COVER
& SOLEPLATE ASSY 4
10. Dress grey and pink wires onto slot on the
right side of half-ring plate
11. Assemble INLAY ASSY 5 onto Housing
12. Open the Filling Door
13. Assemble and fasten Screw T1
14. Assemble and fasten 2x Screw A3 at rear of
WATER TANK ASSY 7 to Cover
