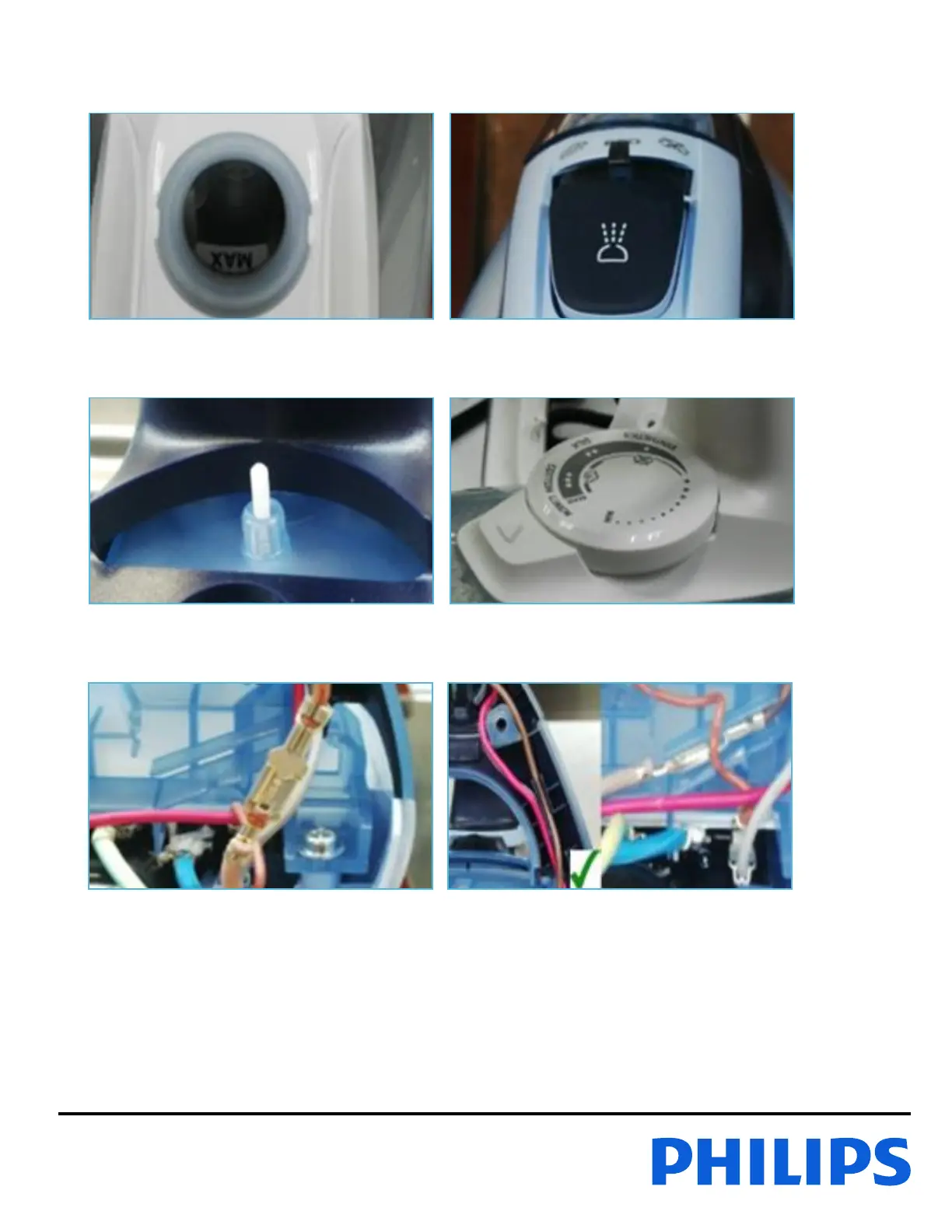

Reassembly Instruction (continue)
15. Assemble TANK TOP SEAL15 to Tank Top
Front
16. Assemble SPRAY KNOB 8
17. Assemble BULLET SPRING 13 onto
BULLET MOLDED 12. Insert Bullet assy to hole
in the Tank Top
18. Assemble THERMOSTAT DIAL 11 to Tank
Top
19. Connect brown wire of MAINSCORD 6 with
brown wire of ASO 1
20. Dress brown wire onto slot on the right side
of half-ring plate, and also dress the connection
into slot on Tank Top
