Philips DST7510/80 - Page 18

Published by Philips Domestic Appliances Page 18 of 26 For internal use only
Document No. : CSW-07-081-22188
Reassembly Instruction (continue)

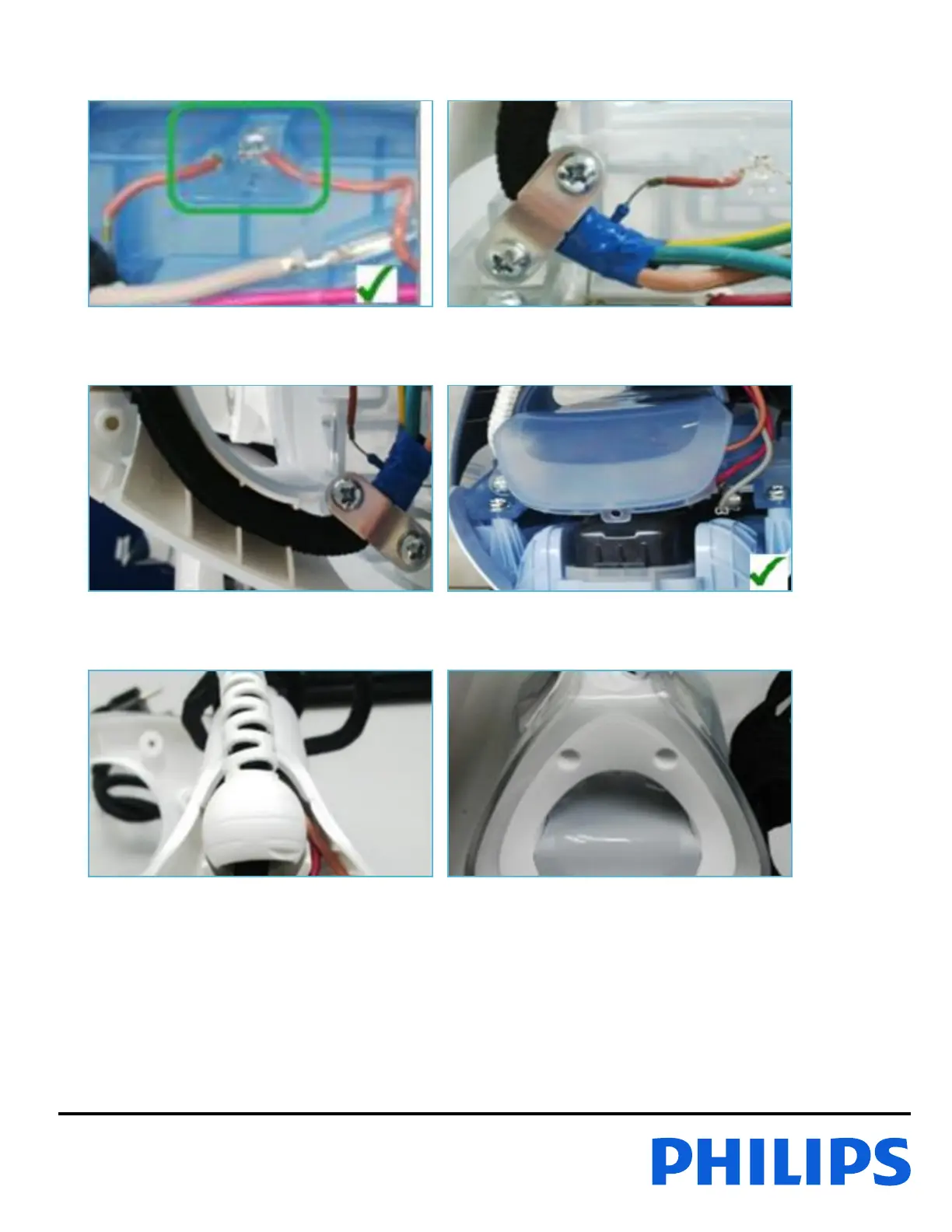

21. Place the Lamp into the slot and dress the
wires to the ribs provided
22. Assemble Clamping Plate, assemble &
fasten 2x Screw A2
23. Dress MAINSCORD 6 on the left side of the
half-ring plate
24. Assemble DECO PLATE 14 onto Tank Top
25. Assemble BALL SWIVEL 10 to Tank Top
Rear
26. Place BACKPLATE 2 onto rear of Iron
