10
OPTICAL (Digital audio out jack)
– connect to digital (optical) audio equipment
COAXIAL (Digital audio out jack)
– connect to digital (coaxial) audio equipment
AC Power Cord
– connect to a power source
AUDIO OUT (Left/Right) 1, 2
– connect to an amplifier, receiver, TV, or stereo
system
VIDEO OUTPUT Switch
–
select either S-Video Out or Component Video Out,
depending on how you connected the DVD Player to the TV
S-VIDEO OUT (Y/C)
– connect to a TV with S-Video (Y/C) inputs
COMPONENT VIDEO OUT PB/CB PR/CR Y
– connect to a TV with PB/CB PR/CR Y inputs
VIDEO OUT (CVBS)
– connect to a TV with CVBS video inputs
Caution: Do not touch the inner pins of the jacks
on the rear panel. Electrostatic discharge may
cause permanent damage to the unit.
FUNCTIONAL OVERVIEW

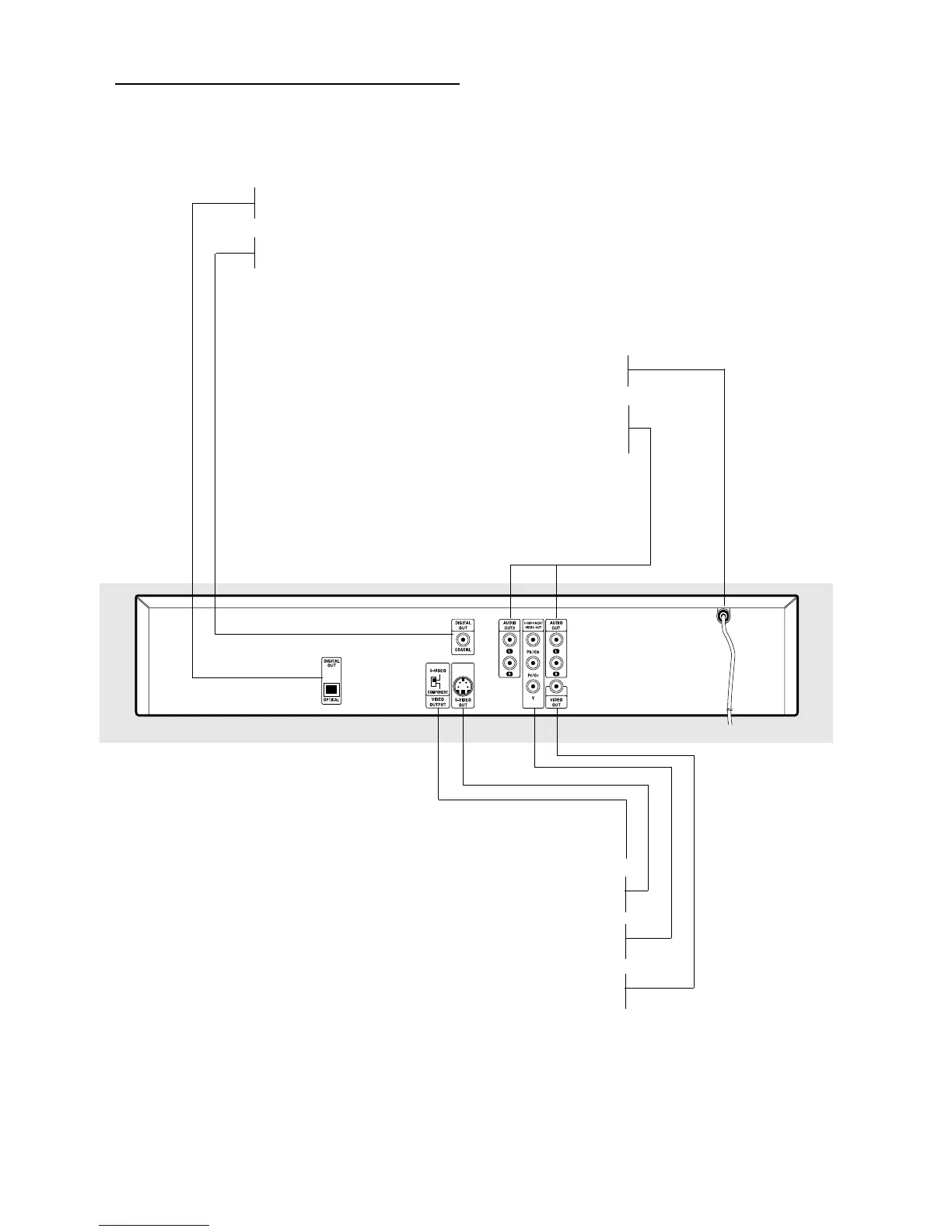

Rear Panel
