CONTROLS AND DISPLAYS

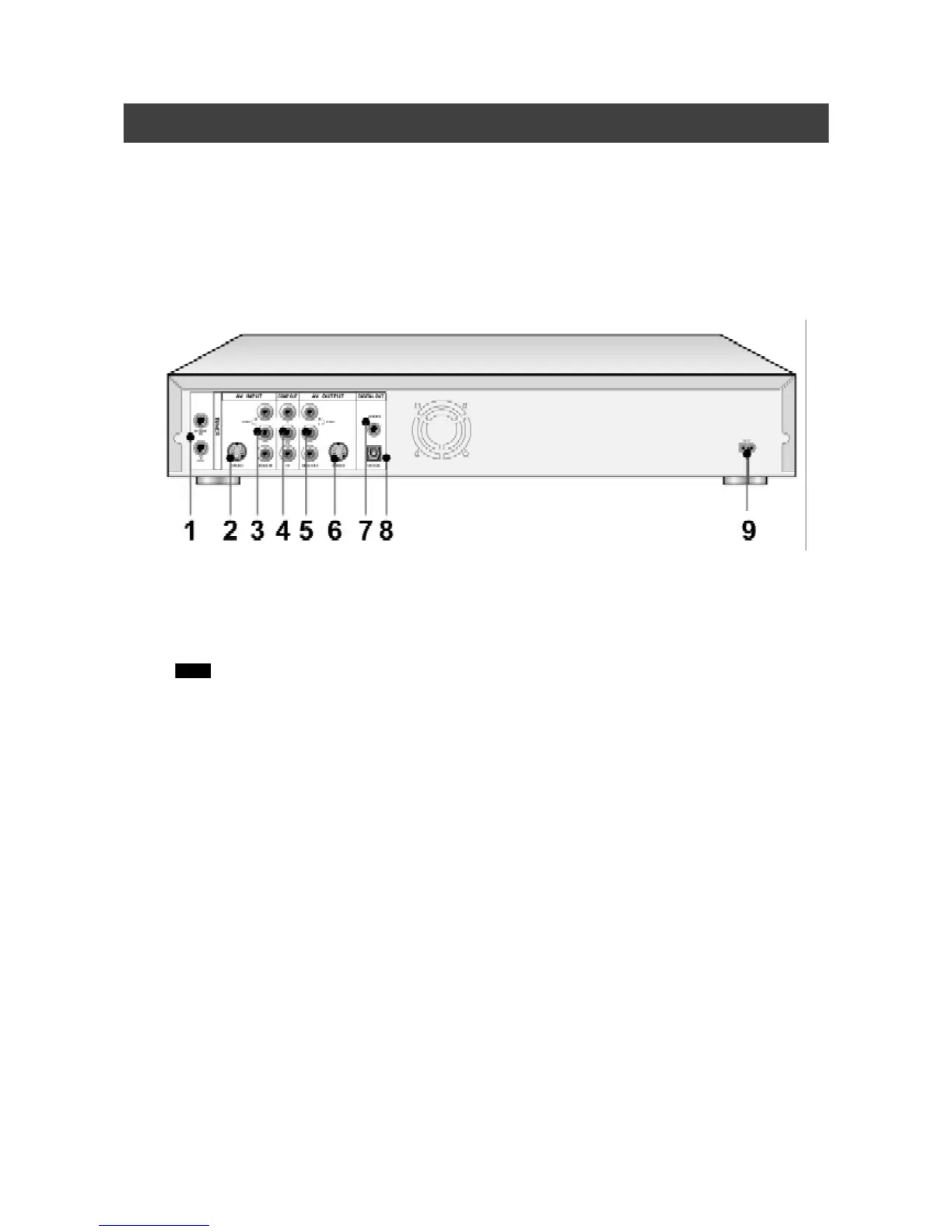

Rear panel connections
(for reference only)
Names of parts
1) TUNER(TV/ANTENNA) Jacks
Connects TV/ANTENNA for signal output/input.
Note:
Playback signals don’t go through here. Make
proper connections before using this DVD Recorder.
2) LINE IN (S-VIDEO) Jack
S-Video signal input.
3) AV2 Rear (VIDEO/AUDIO L/R) Jacks
Composite signal input.
4) COMPONENT VIDEO OUTPUT (Y/Pb/Pr) Jacks
Component signal output.
5) LINE OUT (VIDEO/AUDIO L/R) Jacks
Composite signal output.
6) LINE OUT (S-VIDEO) Jack
S-Video signal output.
7) DIGITAL AUDIO OUT (COAXIAL) Jack
Connects an amplifier or receiver having a digital input jack.
8) DIGITAL AUDIO OUT (OPTICAL) Jack
Connects an amplifier or receiver having a digital input jack.
9) AC In Terminal
