Mechanical Instructions
EN 46 DVDR880-890 /0X14.

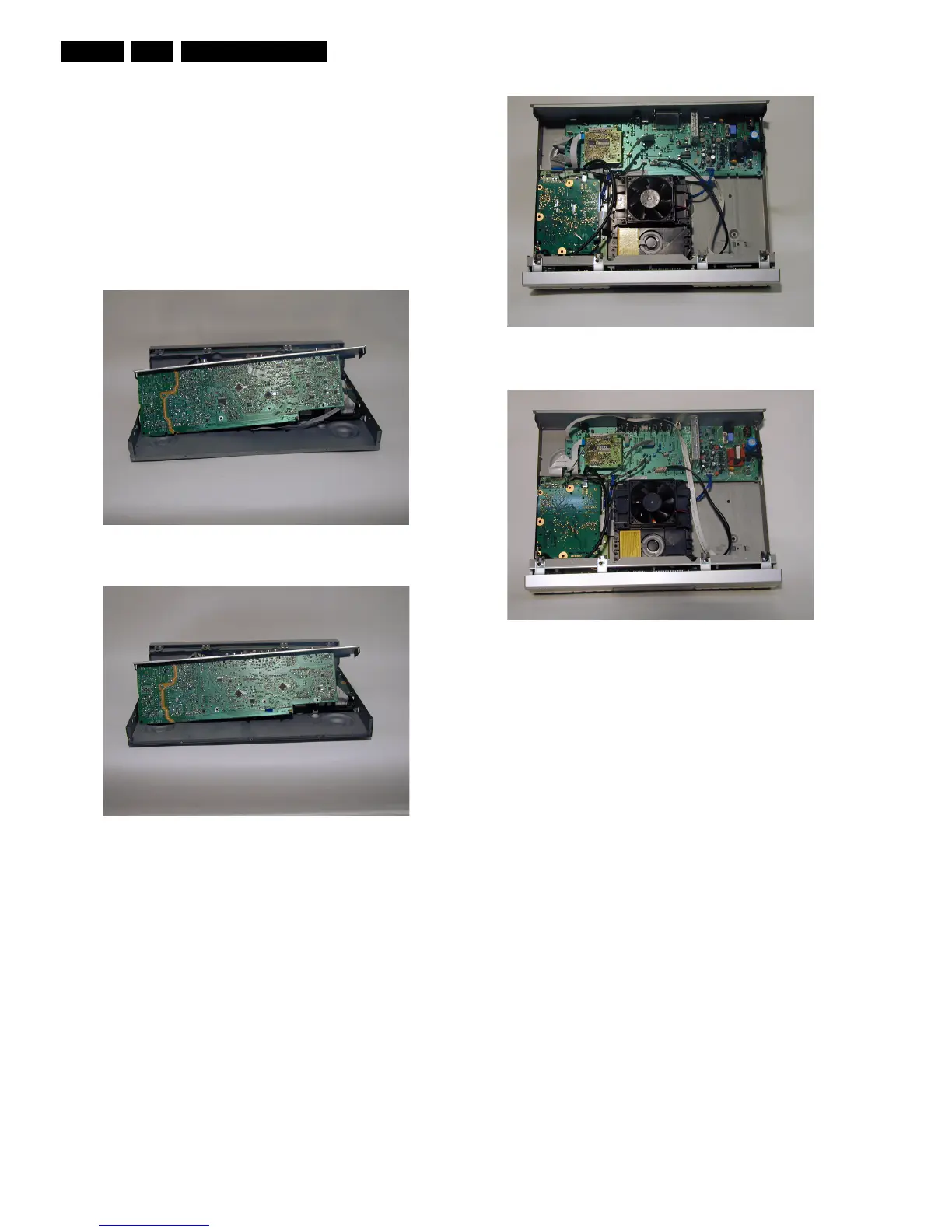

4.1.4 Analog board
To put the analog board in service position, demount the
assembly of analog board and backplate as follows:
1. Remove the screw from the backplate to the mains inlet of
the power supply
2. Remove the screw safety holder
3. Remove the 3 screws of the analog board to the frame
4. Release the snap of the spacer of the analog board to the
frame.
Turn the assembly of the back plate and the analog board
against the loader.
Analog Europe
Figure 4-7
Analog NAFTA
Figure 4-8
4.1.5 Cable Routing
Take care of the correct cable routing. See pictures below.
Europe
Figure 4-9
NAFTA
Figure 4-10
