Mechanical Instructions
EN 45DVDR880-890 /0X1 4.
4. Mechanical Instructions

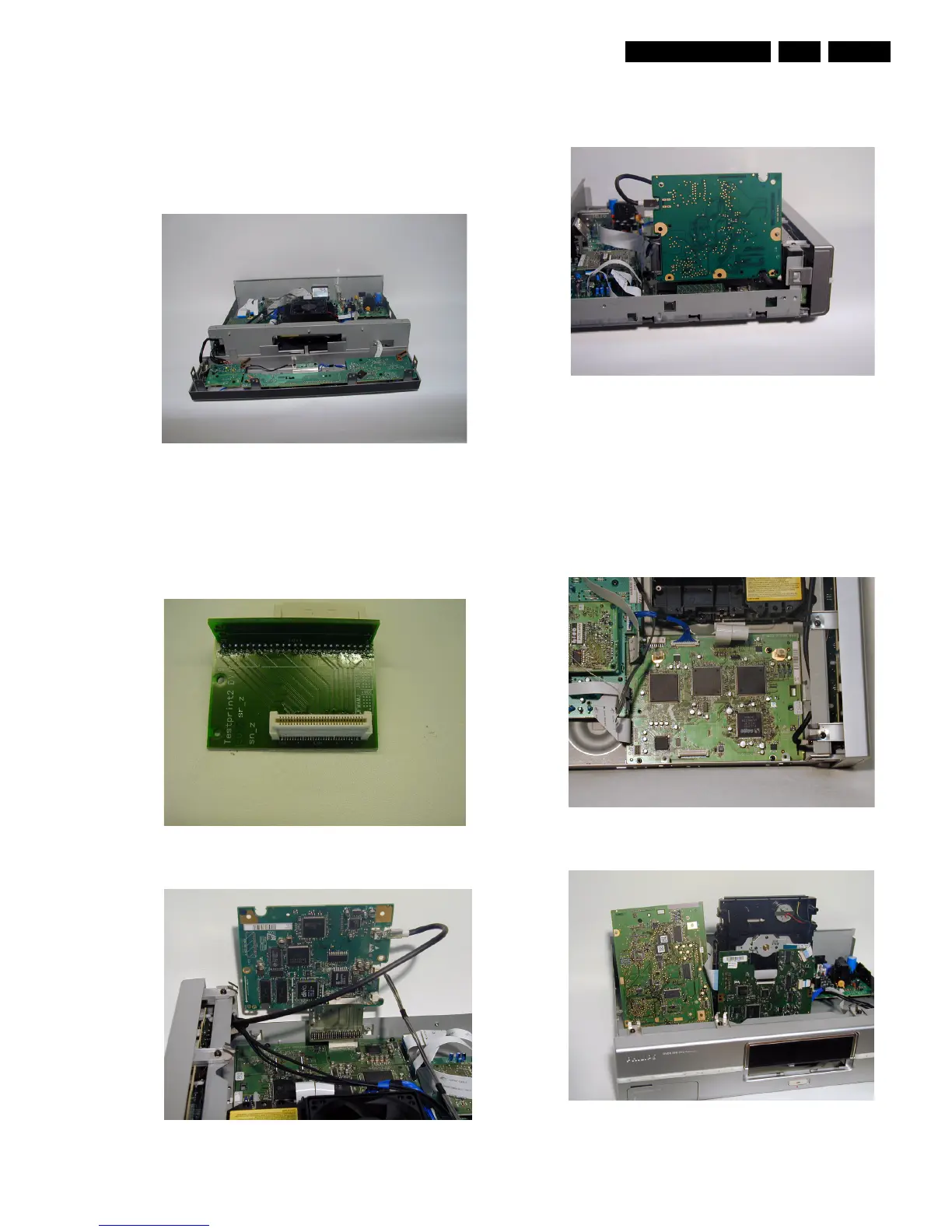

4.1 Service Positions
4.1.1 Front
Front
Figure 4-1
4.1.2 DVIO board
To put the DVIO board in a service position, an extender board
must be used. This extender board can be ordered with
codenumber 3104 128 07770.
DVIO Extender
Figure 4-2
DVIO 1
Figure 4-3
DVIO 2
Figure 4-4
4.1.3 Digital board
After demounting of DVIO board, the top side of the digital
board is in reach. To reach the bottom side of the digital board,
the DVDR module must be demounted together with the digital
board. Connected to each other, the assembly can be set in a
service position. In this position, the bottom side of the digital
board and the servo board are in reach to be serviced.
Digital 1
Figure 4-5
Digital 2
Figure 4-6
