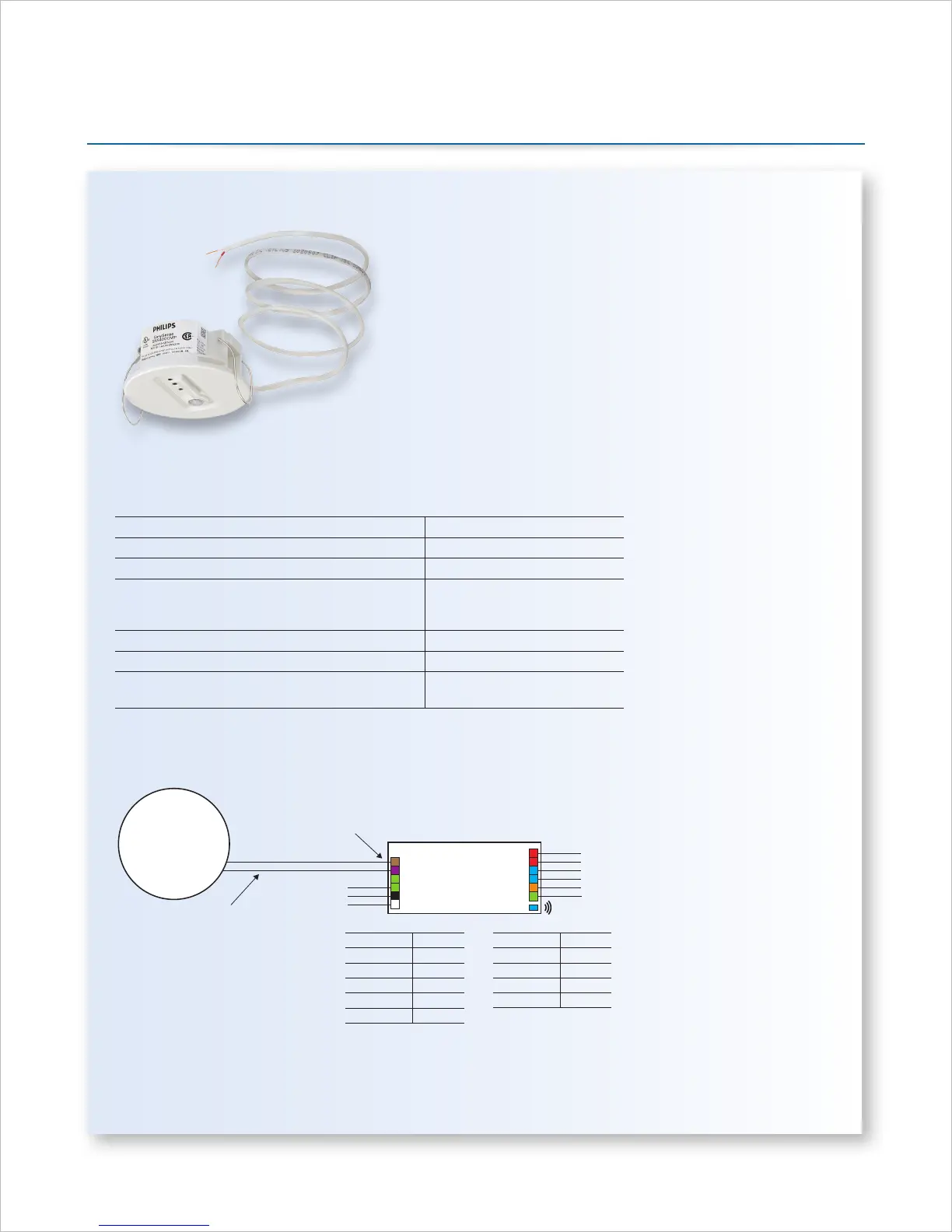

Philips EasySense - Ceiling-Mount Option

EasySense_PLt-16199DS_ES Adv Grouping DS_061818 06/18 page 10 of 12
EasySense xture-mount sensor
Ceiling-Mount Option
Sensor Part Number
Order Code SNS200CMP (516666)
Full Product Name EasySense Ceiling-Mount Sensor
Carton Quantity 1 pc/carton
Assembly Includes sensor pre-assembled in
ceiling mounting plate with leads
ready for eld installation
Net Weight per Piece 2.6oz / 75gr
Color White
No. Drivers per Sensor Four drivers per sensor max,
polarity must be maintained
Connection Color
White Neutral
Black Line
Green Ground
Purple SR+
Brown SR-
Wiring Diagram
XITANIUM SR
LED DRIVER
LED+
LED+
LED-
LED-
RSET2
SGND
NFC ANTENNA
SR-
Connectors
SR+
RED
WHITE
LINE
NEUTRAL
GROUND
NC
36-inch 18AWG solid lead wires in
plenum-rated jacket from sensor stripped
to 3/8". Connect white wire to brown (SR-)
and red wire to purple (SR+) on driver.
Four drivers per sensor maximum.
Polarity must be maintained.
EASYSENSE
Connection Color
Red LED+
Blue LED-
Orange RSET2
Green SGND
Note: Refer to www.philips.com/easysense for quick installation guide.
Note: For use in non-re-rated installations only.
