EasySense_PLt-16199DS_ES Adv Grouping DS_061818 06/18 page 5 of 12
EasySense xture-mount sensor

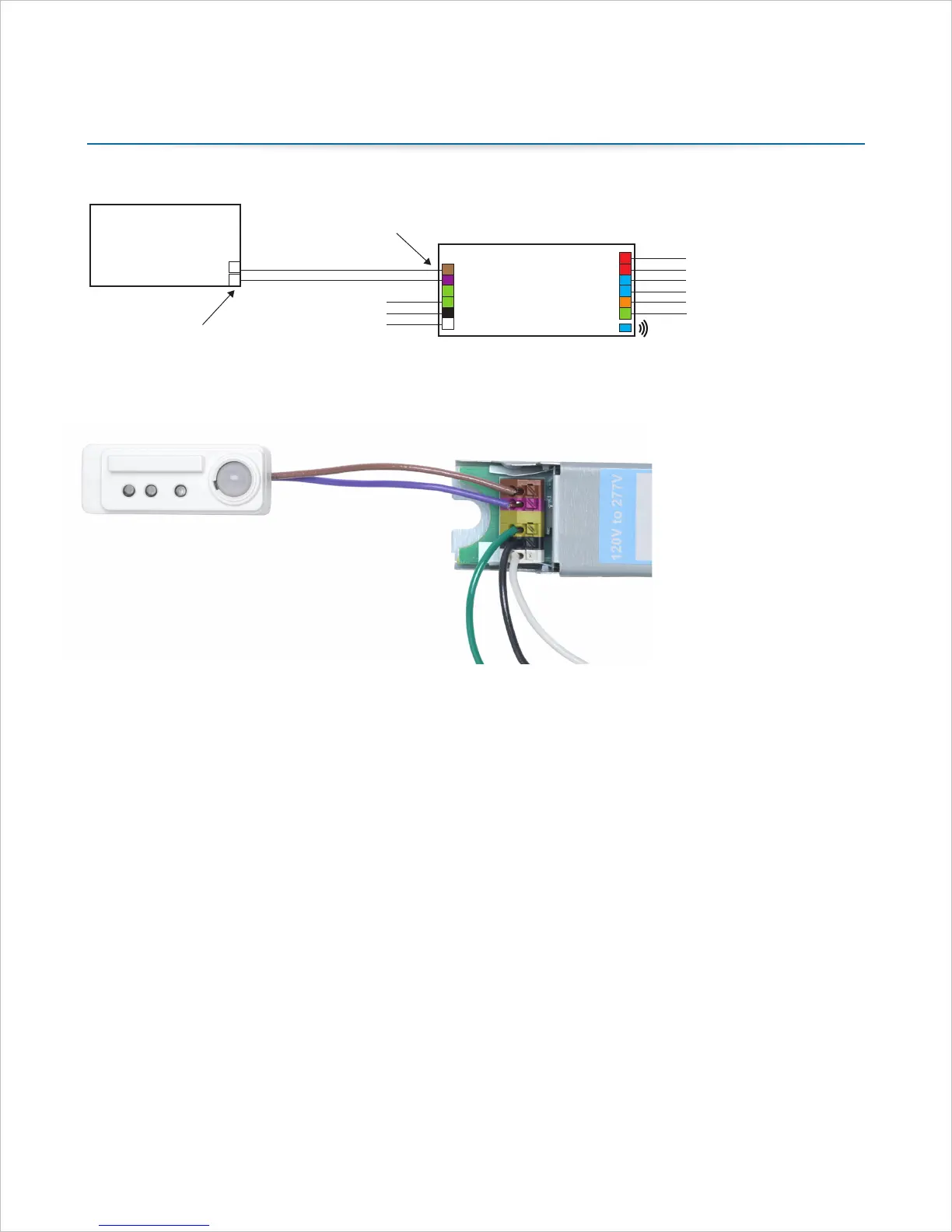

Wiring Diagram
XITANIUM SR
LED DRIVER
EASYSENSE
LED+
LED+
LED-
LED-
RSET2
SGND
NFC ANTENNA
SR-
Connectors
SR+
SR
SR
LINE
NEUTRAL
GROUND
NC
Connectors
(non-polarized)
Use 18AWG solid copper wire,
rated >=600V/90C.
Strip wire to 3/8”.
