EasySense xture-mount sensor
Occupancy Sensing

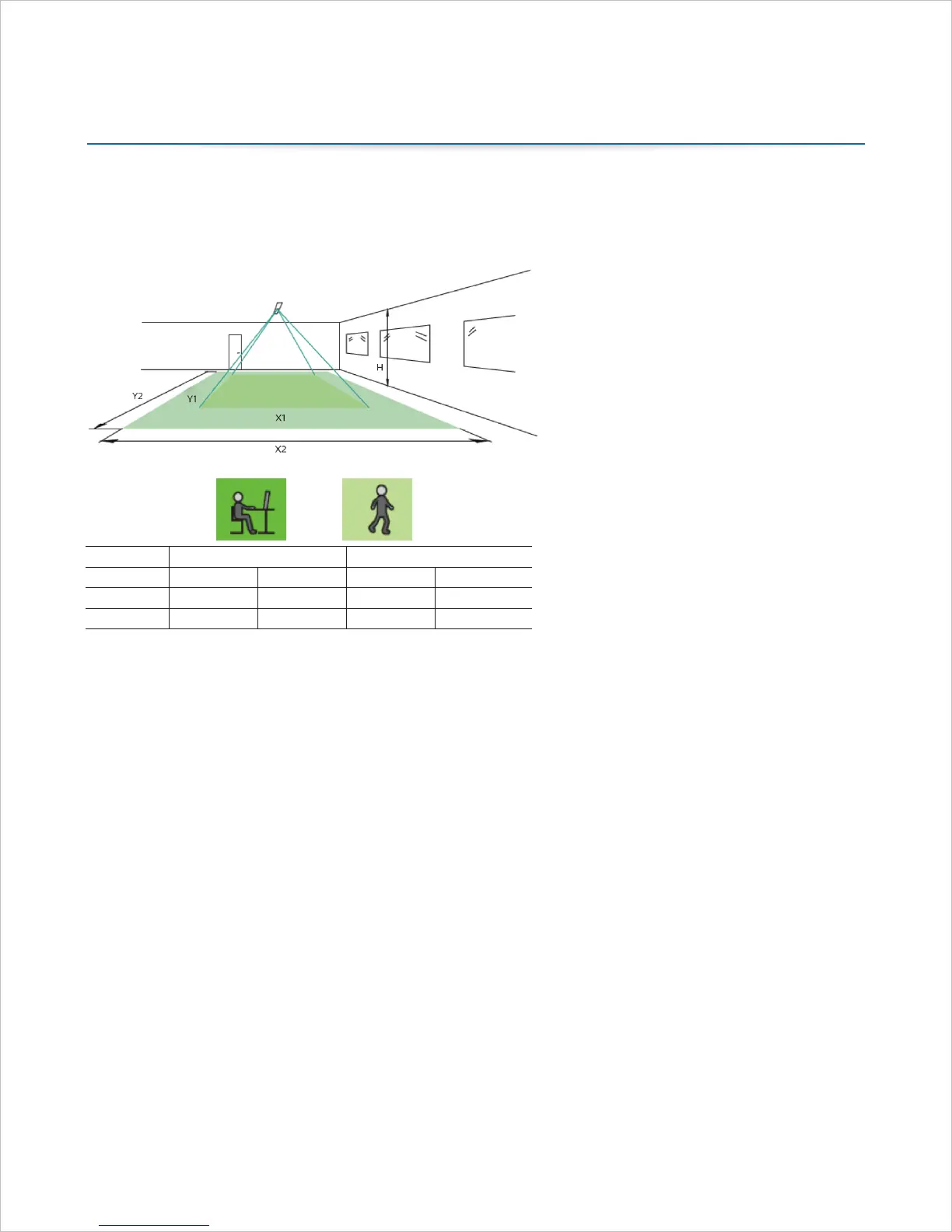

The detection area for the movement sensor can be roughly divided into two parts:
• Minor movement (person moving ≤ 3.0'/s or 0.9m/s).
• Major movement (person moving ≥ 3.0'/s or 0.9m/s).
Note: Longer dimension of detection area (Y1, Y2) is parallel to longer dimension of EasySense.
Height Minor Movement Major Movement
H Y1 X1 Y2 X2
8'/2. 4 m 10'/2.9m 9'/2.7m 15'/4.5m 9'/2.9m
10'/3m 12 '/3.6 m 11'/ 3 .4m 18'/5.4m 12 '/3.6 m
