Mechanical Instructions
EN 10 TPM9.2L LA4.
2012-Mar-30
back to
div. table

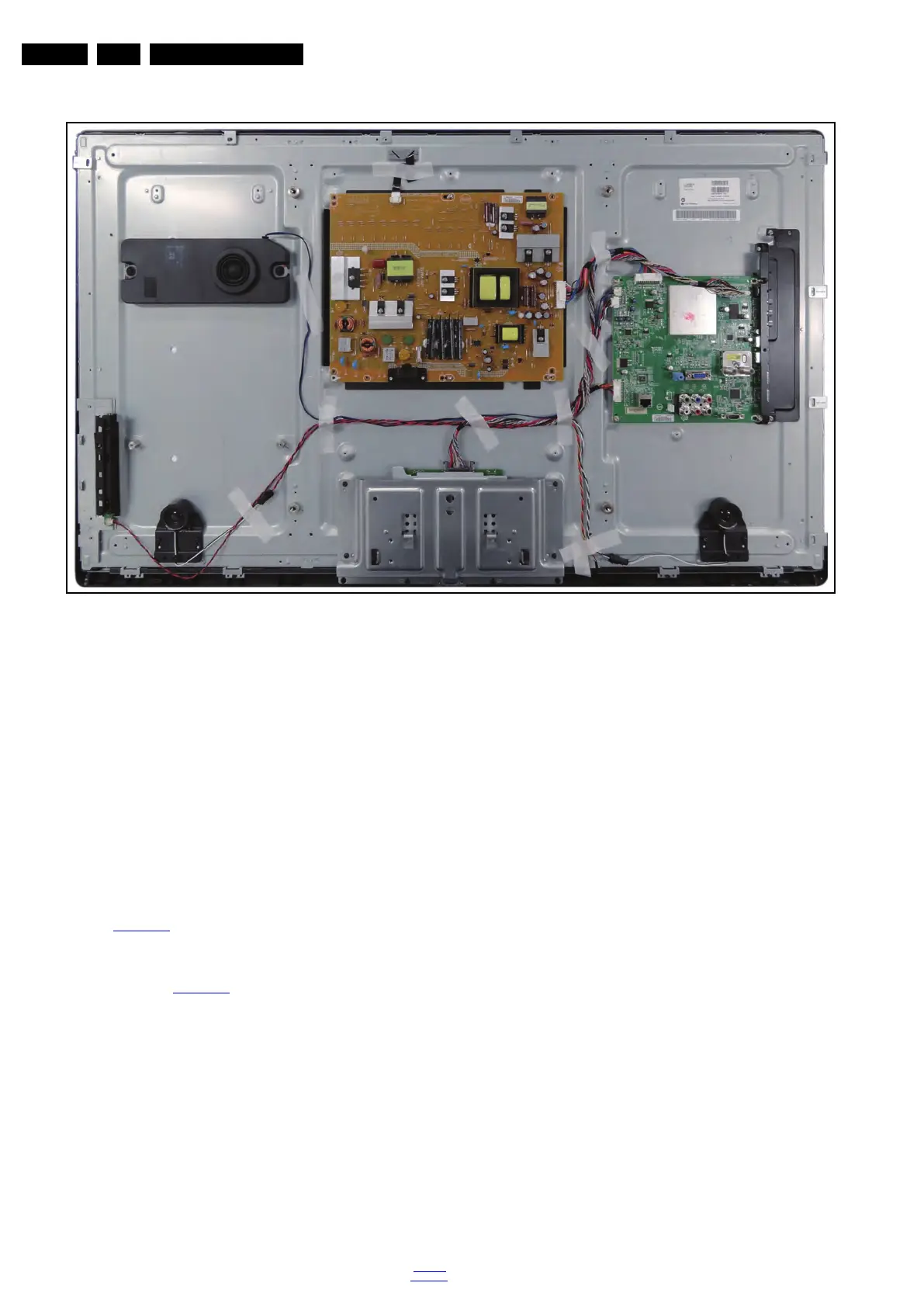

Figure 4-2 Cable dressing (42")
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assembly/Panel Removal
Instructions below apply to the 32PFL4000D/78, but will be
similar for other models.
4.3.1 Rear Cover
Refer to Figure 4-3
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1], [2] and, [3] that secure the rear
1. cover. Refer to Figure 4-3
for details.
2. At the top side the rear cover is locked by catches, so
gently lift the bottom side and push the cover upwards to
release these catches. Then lift the cover from the TV.
Make sure that cabling and wires are not damaged while
lifting the rear cover from the set.
19260_101_120322.eps
120323
