Philips EP4010 Service Manual

Circuit Diagrams and PWB Layouts
EN 71TPM9.2L LA 10.
2012-Mar-30
back to
div. table

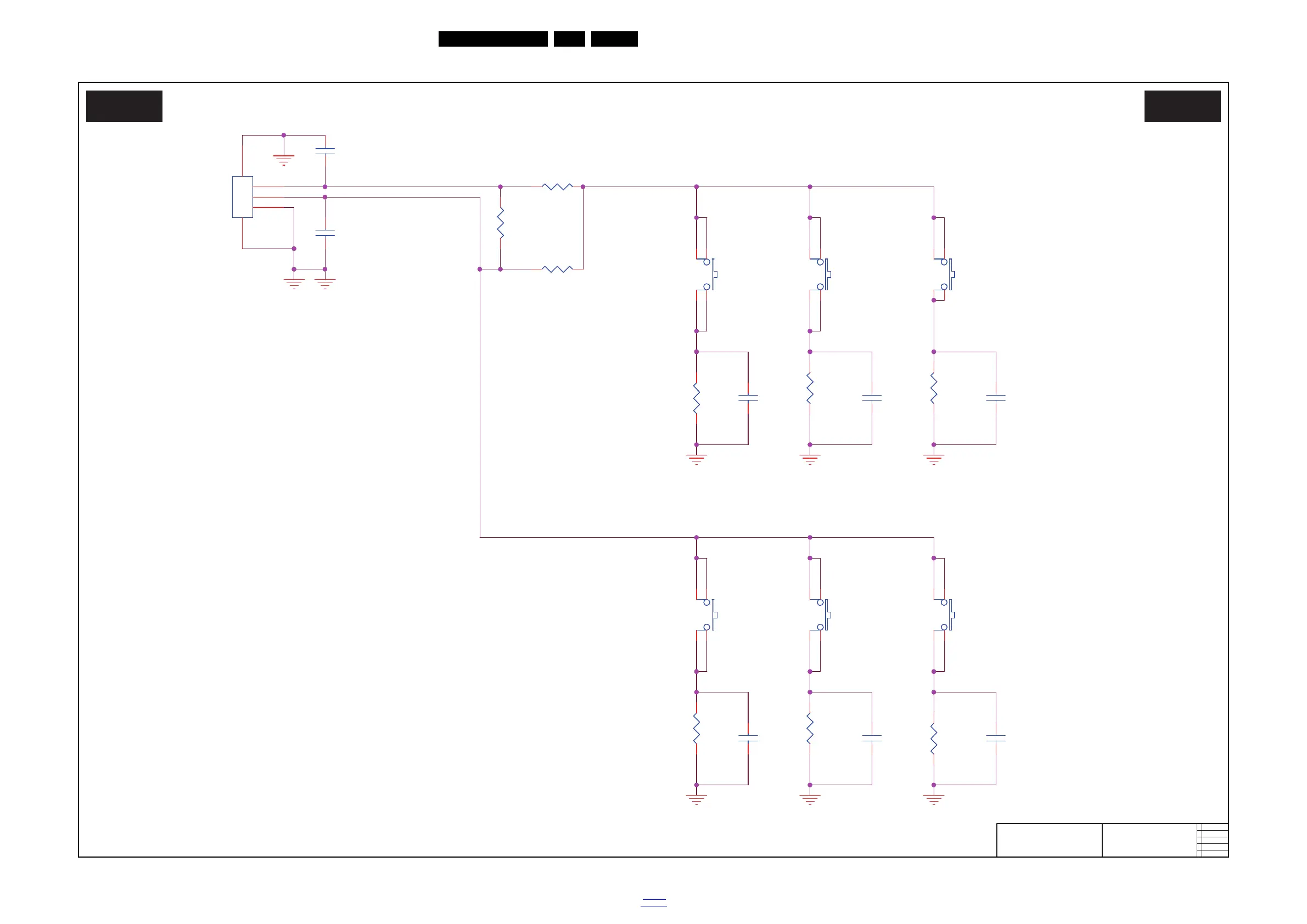

10.5 E 715G5252 Keyboard control panel 3500/4000 series
10-5-1 Keyboard
19240_513_120215.eps
120215
Keyboard
E E
2011-10-05
1
715G5252
Keyboard
KEY2
KEY1
SOURCE VOL- VOL+
CH- CH+POWER
----><----| ----><----| ----><----|----><----|
----><----| ----><----|
----><----| ----><----|
SW020
TAC T SW FWRD H1.5MM
R020
470R 1/8W 1%
R017
2K2 1/8W 1%
SW022
TAC T SW FWRD H1.5MM
R022
5K6 +-1% 1/8W
C019
NC/100N 50V
C023
100N 50V
C016
NC/100N 50V
CN016
CONN
1
2
3
45
R018
5K6 +-1% 1/8W
R024
NC/0R05 1/10W
SW016
TACT SW FWRD H1.5MM
SW021
TACT SW FWRD H1.5MM
SW017 TAC T SW FWRD H1.5MM
C020
NC/100N 50V
C017
NC/100N 50V
SW019
TAC T SW FWRD H1.5MM
C024
100N 50V
R016
470R 1/8W 1%
R021
2K2 1/8W 1%
R025
NC/1K 1/10W 1%
C021
NC/100N 50V
R023
0R05 1/10W
C018
NC/100N 50V
