EPIQ 5 & 7 Training Manual
© 2016 Conquest Imaging
80

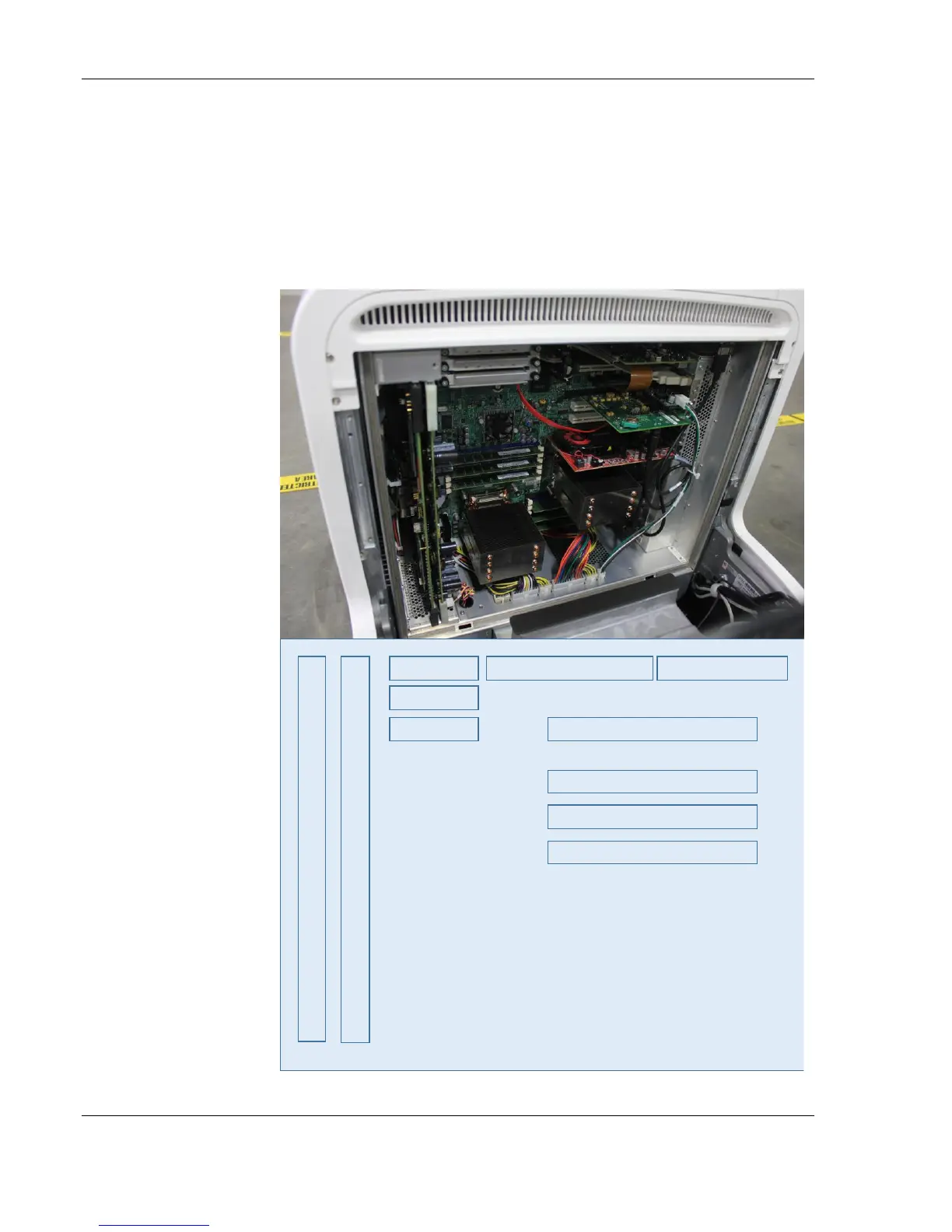

E-Module Board Layout
The following photo shows the general layout to familiarize you with
the locations of boards and modules. The two black boxes are large
heat sinks containing the processors; note that some newer EPIQ
models have only a single processor.
A
C
B
P
R
B
HDD2
HDD1
HDD0 AIOAudioI/O
Physio ModuleMotorCNTRLBoard
ExtendedI/O
VideoI/O
GraphicsCard
