15: Initial Pull-Apart:
• Remove top & bottom covers from Philips FM92E transceiver.
• Place top & bottom covers into A4 plastic GLAD bag.
• Place all screws into small plastic GLAD bag.

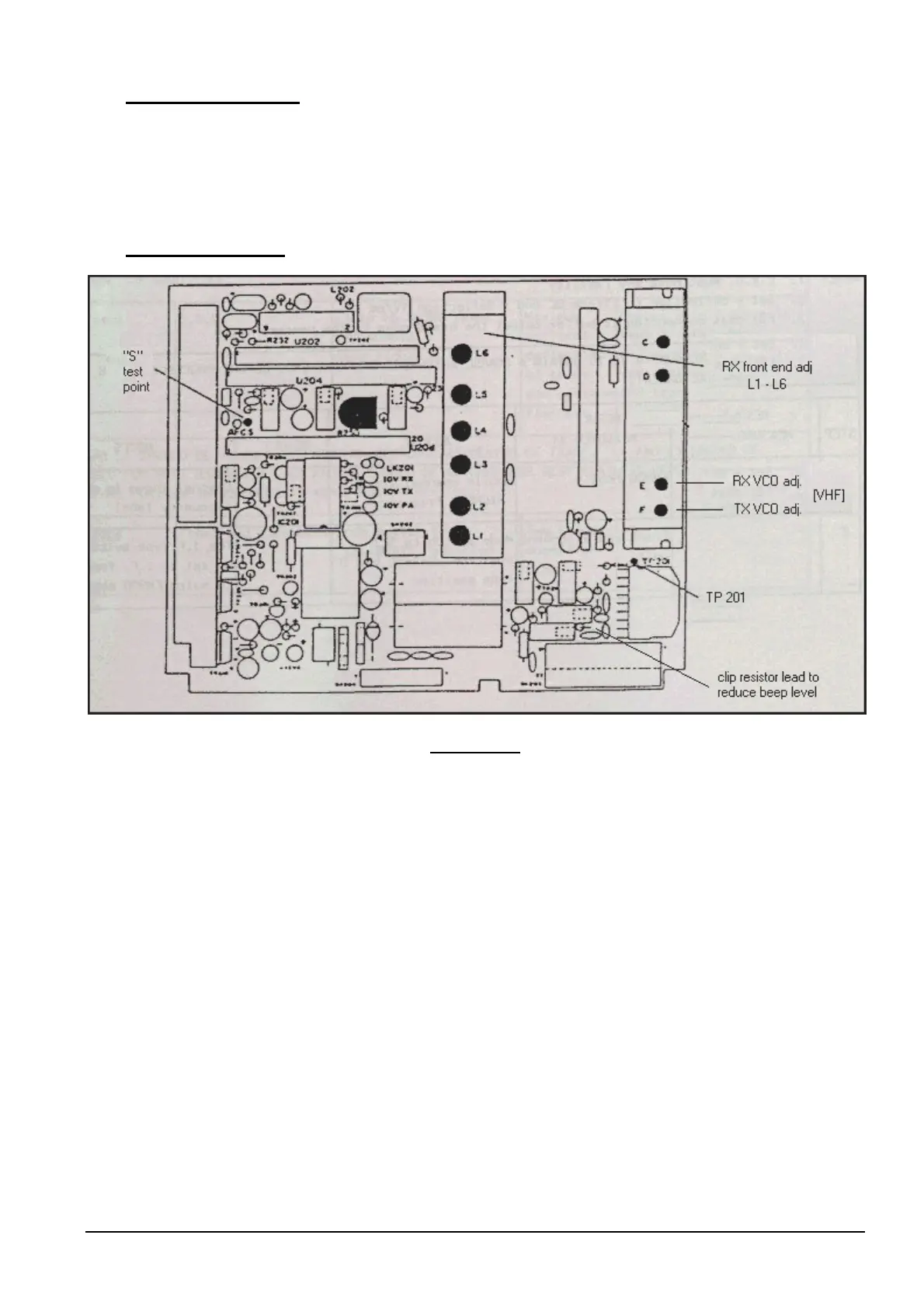

16: Board Layouts:
RF Board:
• All boards are hinged from the front.
• To swing boards upright to allow access to the component side, unscrew the screws on the blank side of
the boards, that have an arrow pointing to those screws.
• The screws do not screw all the way out.
• The RF Board has normally 6 screws to undo for the board to swing out.
• The Synthesiser Board has normally 4 screws to undo for the board to swing out.
Philips FM92E Conversion to 6 Meters: Version 3.9 Page 18
