23: PA Changes:
Without any changes to the PA stage you should get between 5 & 7 watts.

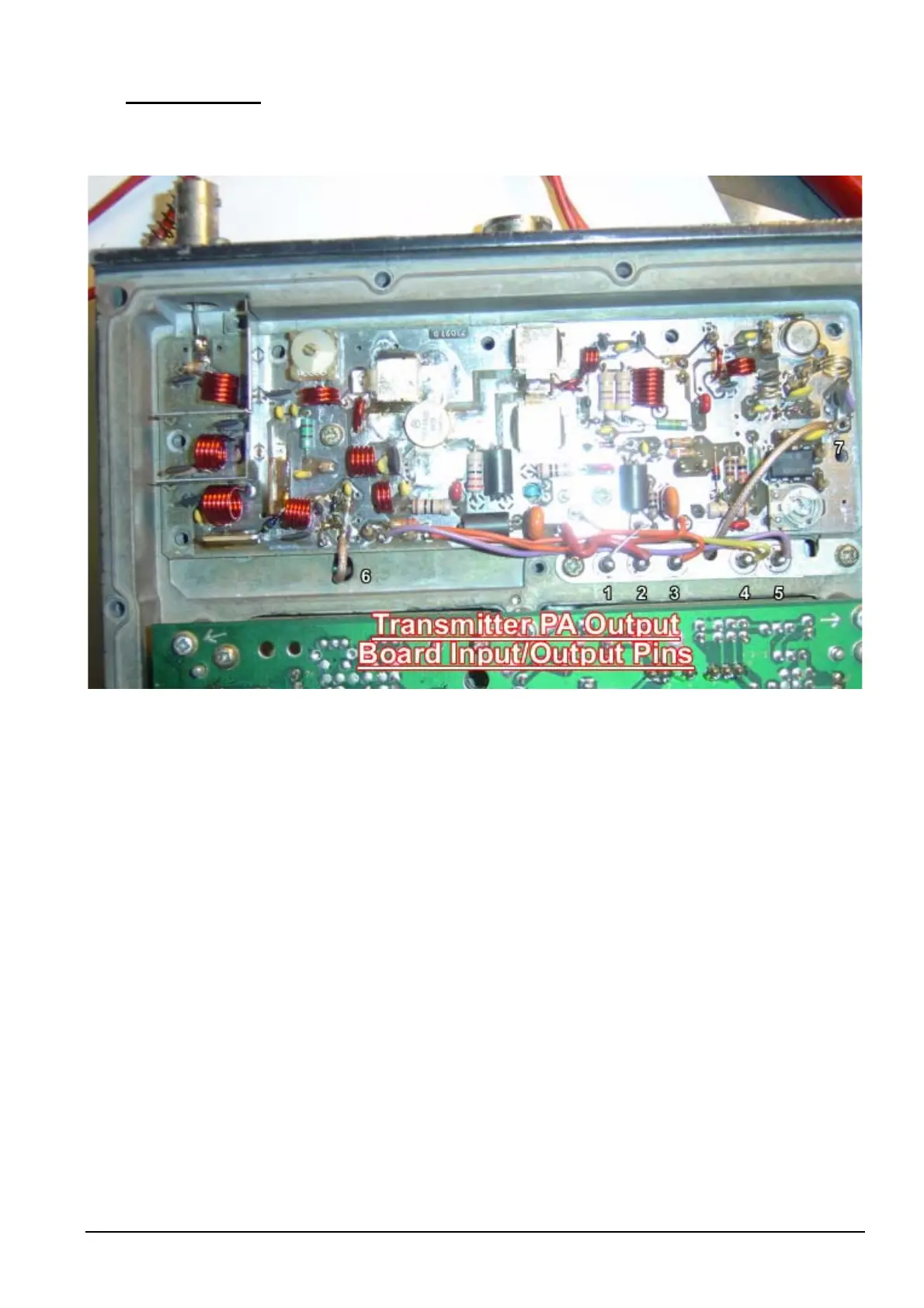

Pin 1 = 12 Volts Move
2 = 13.8 Volts Yellow
3 = 10 Volts Transmitter Orange
4 = 10 Volts PA Red
5 = RF Monitor Bare Wire
6 = Rx to Receiver amplifier input. Coax
7 = Tx PA input from VCO Buffer. Coax [25 mW In @ 50 ohms]
8 = Tx PA output (Top Left Corner) Bare Wire [25 W output @ 50 ohms]
