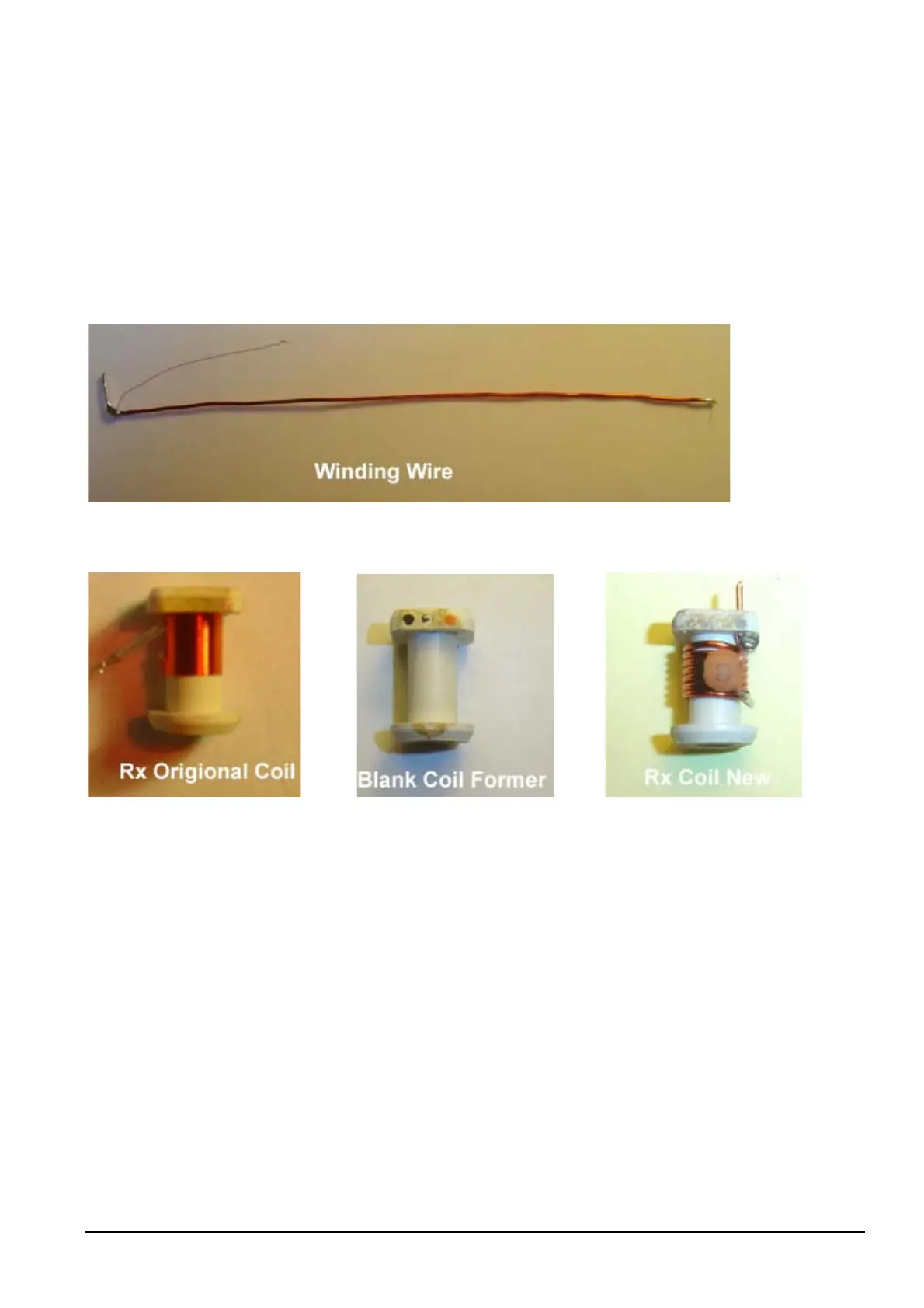

NOTE: All coils have the same fundamental start for winding:-
● Wind all the following coils in the same direction.
● Cut 4 lengths of 160mm of 0.8mm enamel coated wire.
● After cutting wire lengths, clean off all enamel from two ends of wire, one end of 5mm in length
cleaned, the other earth end 10mm to be cleaned.
● Solder both ends of 0.8mm wire.
● Bend 8mm of the 0.8mm wire at [10mm tinned end] at right angles.
Philips FM92E Conversion to 6 Meters: Version 3.9 Page 42
