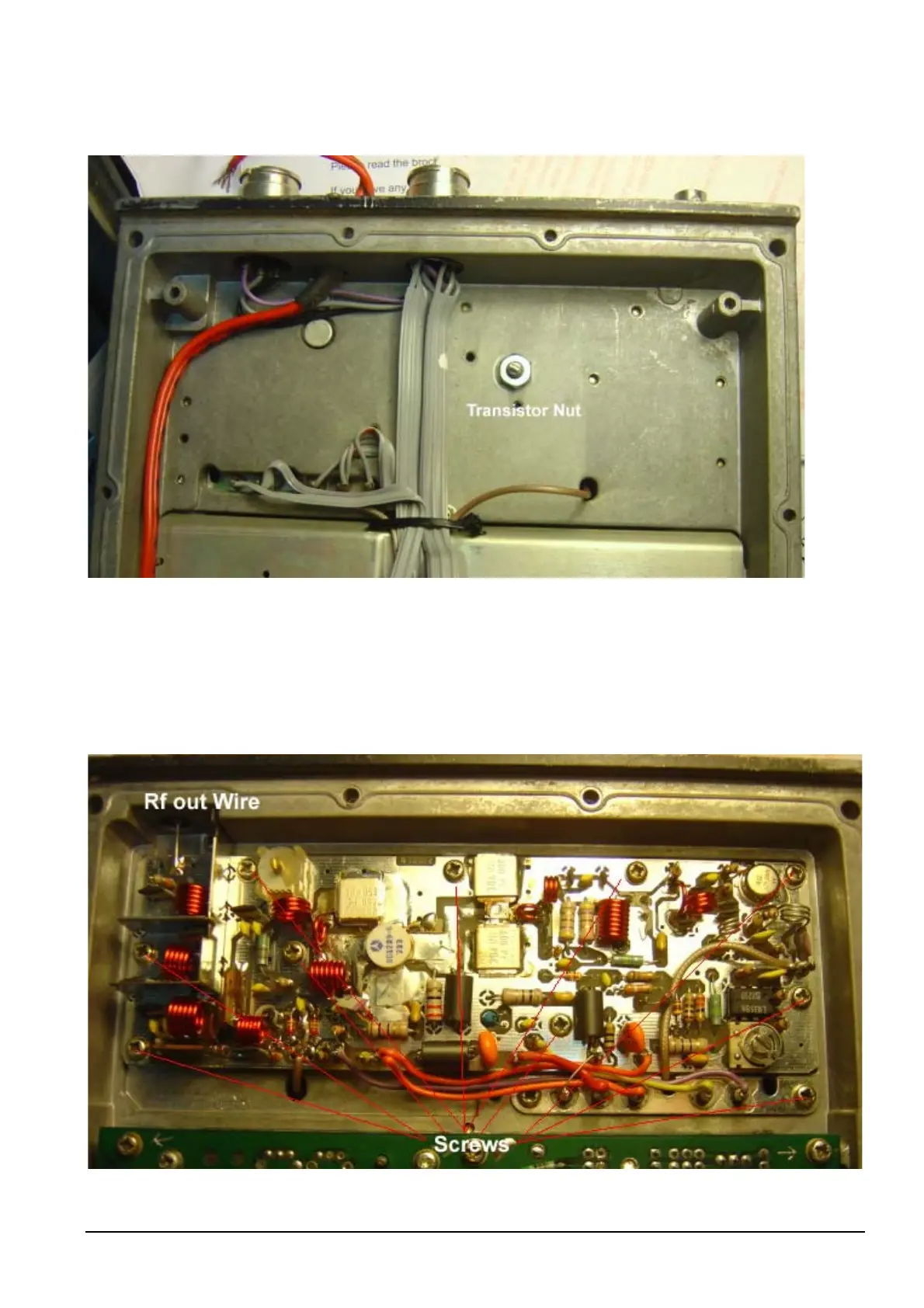

Release PA Board from Chassis by:
• Remove PA transistor nut from rear of PA Board.
Unsolder RF output wire from PA Board.
Unsolder five of wires from chassis feed through pins.
Unsolder two of coax lines going to PA board from PA board.
Unscrew screws holding PA board to chassis.
Philips FM92E Conversion to 6 Meters: Version 3.9 Page 53
