Philips FM92E - Page 56

Coil Upgrade:

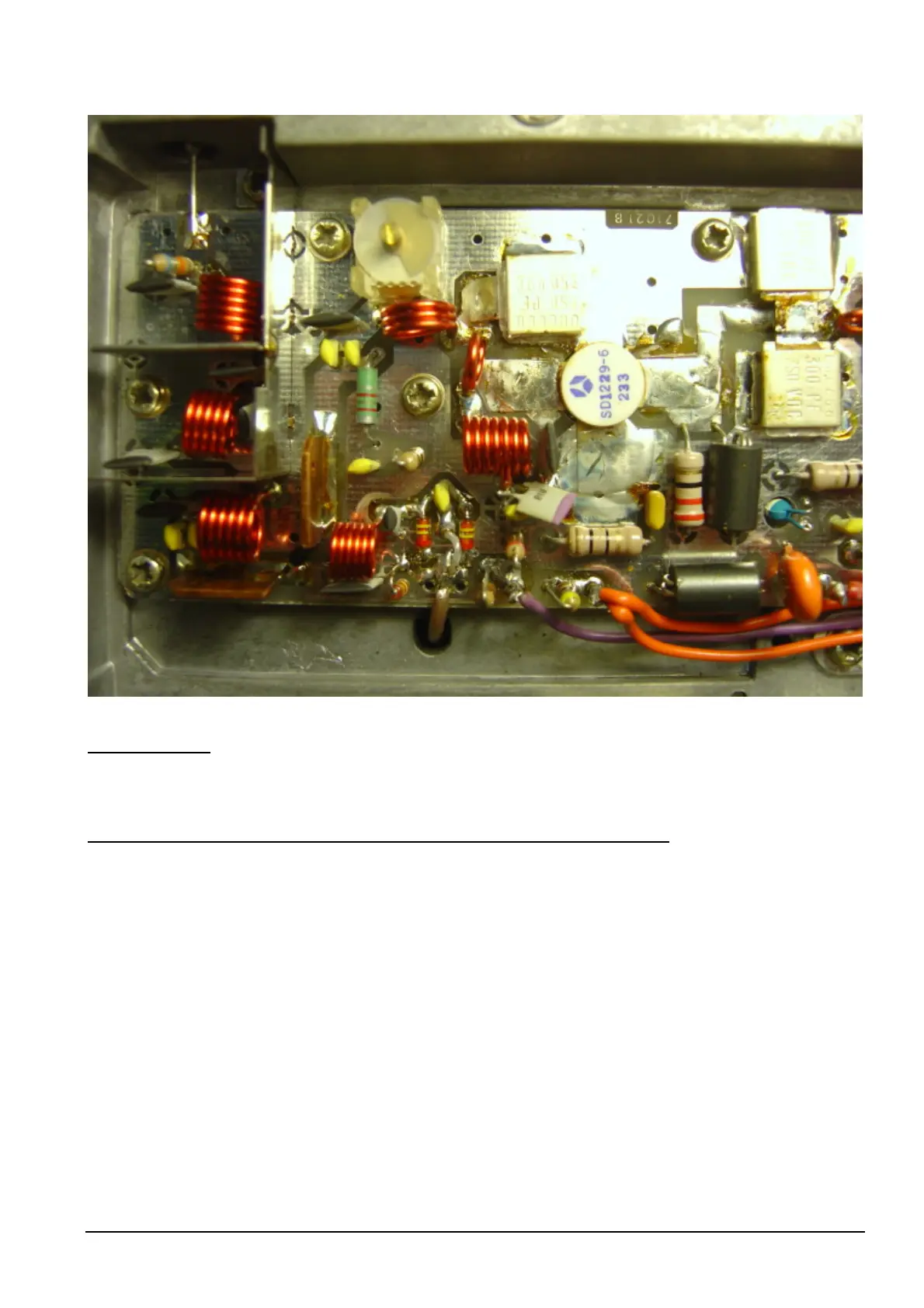

Remove by de-soldering and upgrade the following coils to the new turns, with the same diameter on the PA
board.
Coil Original Turns New Turns Wire Size Drill Size for winding coil
L101 2.5 3.5 0.63mm
L103 2.5 3.5 0.63mm
L104 2.5 3.5 0.63mm
L105 0.75 1.0 0.63mm
L106 No change
L107 No change
L108 8.5 10.5 0.80mm
L109 2.5 3.5 0.80mm
L110 1.0 1.5 0.80mm
L111 No change
L112 No change
L113 No change
L114 2.5 0.80mm
L115 1.0 1.5 0.80mm
L116 2.5 3.5 0.80mm
L117 No change
L118 6.5 0.80mm
L119 5.5 6.5 0.80mm
L120 4.5 5.5 0.80mm
L121 5.5 5.5 0.80mm
L122 5.0 0.63mm
