Service pos A
Service pos B
Note: After re-assembly, it is very important to ensure all
wires are routed properly to ensure that they do not
touch/obstruct all moving parts.
The 3CDC Module can be complete detached while
repairing the other portion of the set.
Figure 8
Figure 7

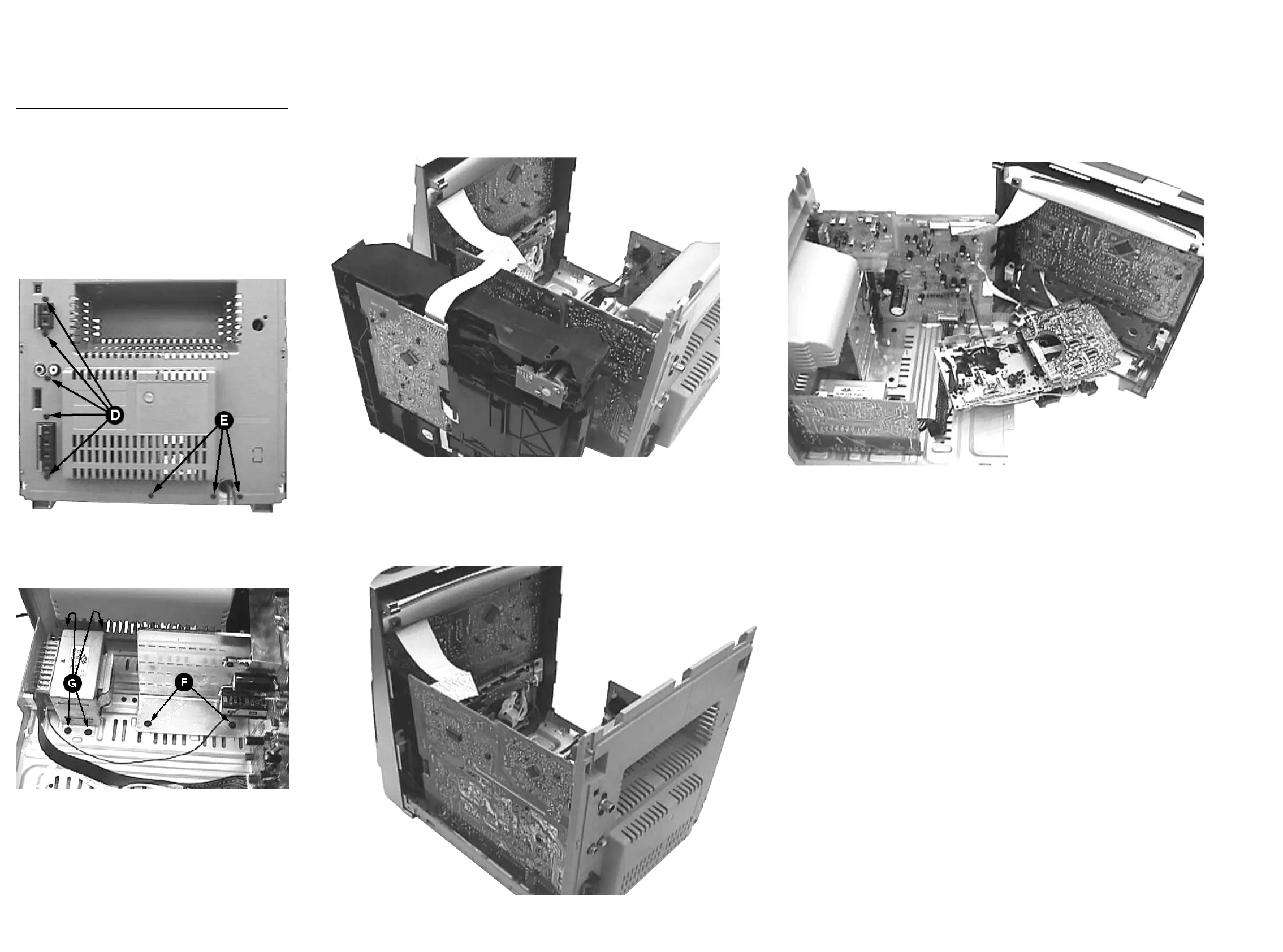

Dismantling of the Bottom & Rear Panel assembly
1) Loosen 5 screws D mounting the Combi board to the Rear
Panel (pos 256) as shown in figure 7.
2) Loosen 3 screws E and release the 2 catches on the sides
of the Rear Panel to separate it from the Bottom plate (pos
265).
3) Loosen 4 screws G to remove the Mains Transformer as
shown in figure 8.
4) Loosen 2 screws F to remove the Combi Board.
Service pos C
To Next Page
