Philips FW C330 - PREPARATIONS AND CONTROLS

Preparations
SPEAKERS 6
R
+ —
L
—
+
AM
ANTENNA
FM
ANTENNA
LR
speaker
(right)
speaker
(left)
FM wire antenna
AM loop
antenna
AUX/CDR
AC power cord

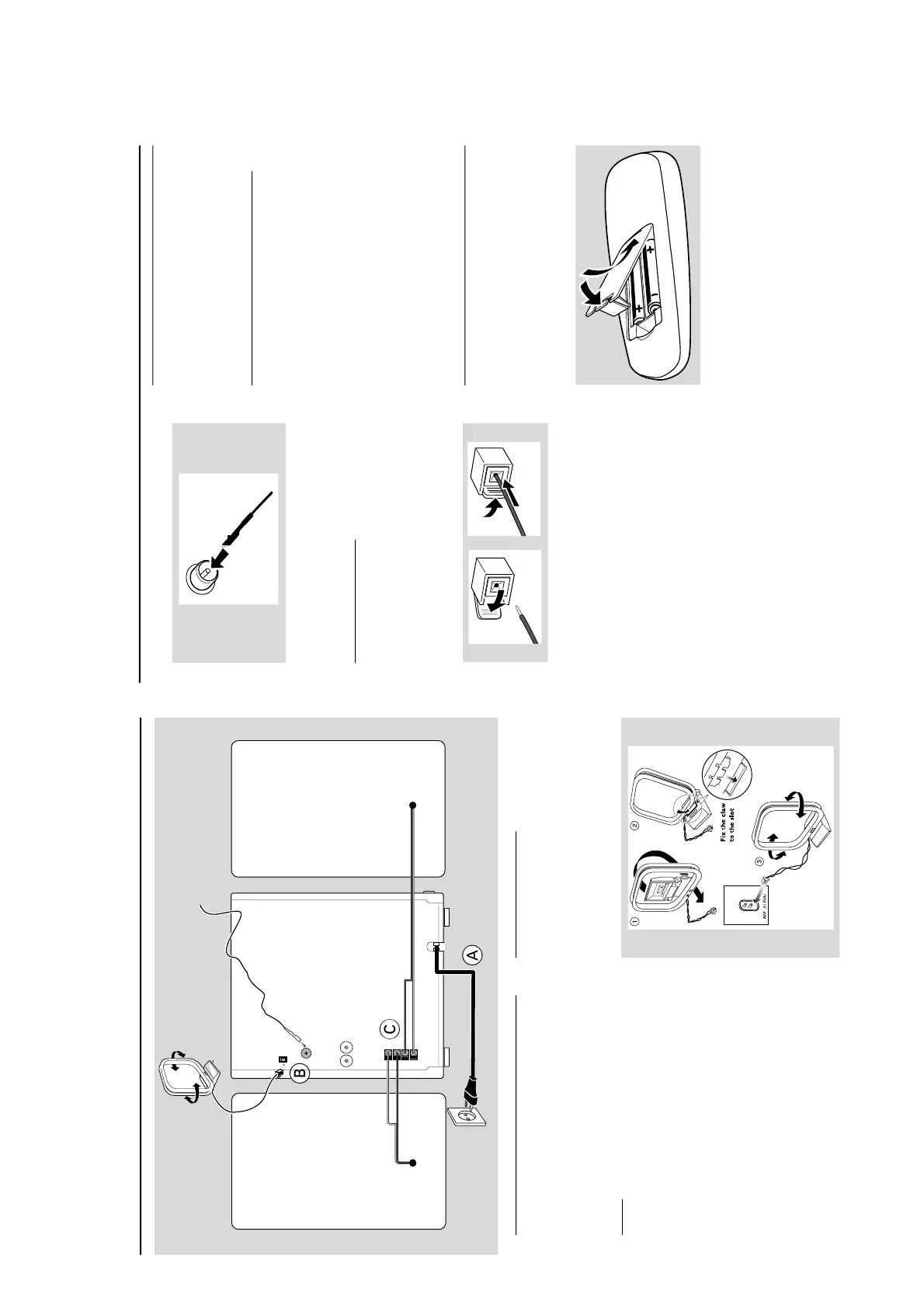

Rear connections
The type plate is located at the rear of the
system.
For users in the U.K.: please follow the
instructions on page 1-9.
A
Power
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
WARNING!
–For optimal performance, use only the
original power cable.
–Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in.
Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool do
wn
before reusing it (not available for all versions).
B
Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
Position the antenna as far as possible f
rom a TV,
VCR or other radiation source.
Preparations
FM Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.
C
Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L", coloured (marked) wire to "+" and black
(unmarked) wire to "-".
1
2
Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
–Do not connect more than one speaker to any
one pair of
+
/
-
speaker terminals.
–Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Use a cinch cable to connect AUX/CDR IN to
the analogue audio out terminals of an external
equipment (TV, VCR, Laser Disc player, DVD
player or CD Recorder).
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX/CDR IN left terminal. Alternatively, you
can use a “single to double” cinch cable (the output
sound still remain mono).
Inserting batteries into the
remote control
Insert two batteries type R03 or AAA (not
supplied) into the remote control with the
correct polarity as indicated by the "+" and
"-" symbols inside the battery compartment.
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
–Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances , so
they should be disposed off properly.
PREPARATIONS AND CONTROLS
1-7
