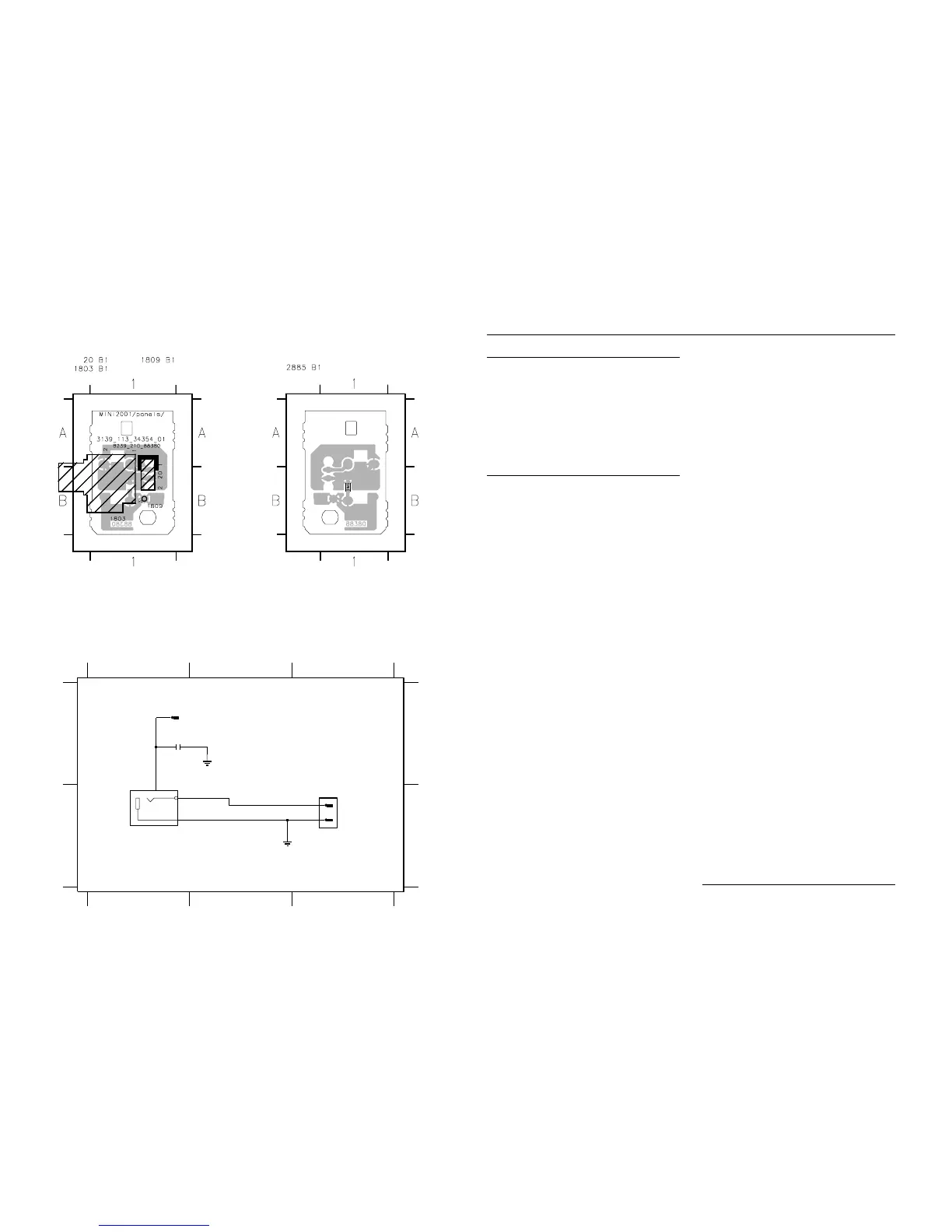

Philips FW-C399 - Electrical Parts List - AF9 Board; Video Out Part - Component & Chip Layouts; Circuit Diagram - Video Out Part

12-7
12-7
ELECTRICAL PARTS LIST - AF9 BOARD
VIDEO OUT PART - COMPONENT & CHIP LAYOUTS
CIRCUIT DIAGRAM - VIDEO OUT PART
123
123
A
B
A
B
20 B3 1803 B1 1809 A1 2885 A1
1
2
10n
2885
YKC21-3564
1803
3
2
1
20
DIPMATE
1809
1
Note : Some values may varies, see respective parts list for correct value.
3139 118 53770...88380 for...3435 pt4 dd wk0123
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
MISCELLANEOUS
1206 4822 267 11039 Flex Socket 11 Pin Vert.
1401 4822 265 11553 Flex Socket 19 Pin Vert.
1402 4822 267 11039 Flex Socket 11 Pin Vert.
1501 4822 265 20553 Cinch Socket 2P
1503 4822 267 10733 Flex Socket 4 Pin Vert. /21/21M
1520 4822 265 11515 Flex Socket 8 Pin Vert.
1523 4822 265 10981 Flex Socket 15 Pin Vert.
1531 4822 267 10953 Flex Socket 7 Pin Vert.
1603 4822 267 10733 Flex Socket 4 Pin Vert.
CAPACITORS
2201 4822 124 40207 100µF 20% 25V
2202 4822 124 81151 22µF 50V
2203 4822 124 40433 47µF 20% 25V
2204 4822 124 40196 220µF 20% 16V
2205 4822 126 14238 2,2nF 50V
2206 4822 126 14494 22nF 10% 25V
2207 4822 124 40433 47µF 20% 25V
2208 4822 126 13879 220nF +80/-20% 16V
2209 4822 124 41751 47µF 20% 50V
2210 4822 126 13879 220nF +80/-20% 16V
2401 4822 122 31765 100pF 2% 63V
2402 4822 122 31765 100pF 2% 63V
2403 4822 126 14305 100nF 10% 16V
2404 4822 126 14305 100nF 10% 16V
2501 4822 122 31765 100pF 2% 63V
2502 4822 122 31765 100pF 2% 63V
2503 4822 121 51252 470nF 5% 63V
2504 4822 121 51252 470nF 5% 63V
2505 4822 122 31765 100pF 2% 63V
2506 4822 122 31765 100pF 2% 63V
2507 4822 126 14305 100nF 10% 16V
2511 4822 121 51252 470nF 5% 63V
2512 4822 121 51252 470nF 5% 63V
2513 3198 016 31020 1nF 25V
2514 3198 016 31020 1nF 25V
2515 4822 122 31765 100pF 2% 63V
2516 4822 122 31765 100pF 2% 63V
2521 4822 126 14305 100nF 10% 16V
2522 4822 126 14305 100nF 10% 16V
2523 4822 122 31765 100pF 2% 63V
2524 4822 122 31765 100pF 2% 63V
2531 4822 124 40769 4,7µF 20% 100V
2532 4822 124 40769 4,7µF 20% 100V
2533 4822 122 31765 100pF 2% 63V
2534 4822 122 31765 100pF 2% 63V
2535 4822 124 40769 4,7µF 20% 100V
2536 4822 124 40769 4,7µF 20% 100V
2541 4822 124 41407 0,47µF 20% 63V
2542 4822 124 41407 0,47µF 20% 63V
2543 5322 126 11583 10nF 10% 50V
2544 5322 126 11583 10nF 10% 50V
2546 4822 121 43856 4,7nF 5% 250V
2547 5322 126 11579 3,3nF 10% 63V
2548 5322 126 11579 3,3nF 10% 63V
2565 4822 121 43856 4,7nF 5% 250V
2567 3198 016 31020 1nF 25V
2568 3198 016 31020 1nF 25V
2589 4822 121 42408 220nF 5% 63V
2590 4822 121 42408 220nF 5% 63V
2591 5322 121 42661 330nF 5% 63V
2592 5322 121 42661 330nF 5% 63V
2593 4822 121 51252 470nF 5% 63V
2594 4822 121 51252 470nF 5% 63V
2601 3198 016 31020 1nF 25V
2602 3198 016 31020 1nF 25V
2603 4822 124 81151 22µF 50V
2604 4822 124 81151 22µF 50V
2605 4822 122 31765 100pF 2% 63V
2606 4822 122 31765 100pF 2% 63V
2607 4822 126 13881 470pF 5% 50V
2608 4822 126 13881 470pF 5% 50V
2609 4822 126 14508 180pF 5% 50V
2610 4822 126 14508 180pF 5% 50V
2611 4822 124 81151 22µF 50V
2612 4822 124 81151 22µF 50V
2621 4822 124 81151 22µF 50V
2622 4822 122 31765 100pF 2% 63V
2623 4822 124 40433 47µF 20% 25V
2624 3198 017 42230 22nF 50V
2625 4822 124 40207 100µF 20% 25V
2626 4822 124 40769 4,7µF 20% 100V
2641 3198 016 31020 1nF 25V
2642 3198 016 31020 1nF 25V
2653 4822 122 31765 100pF 2% 63V
2654 4822 122 31765 100pF 2% 63V
2669 4822 126 14305 100nF 10% 16V
2681 4822 124 40433 47µF 20% 25V
2682 4822 122 33752 15pF 5% 50V
2683 4822 126 14305 100nF 10% 16V
2691 4822 122 31765 100pF 2% 63V
2707 4822 122 31765 100pF 2% 63V
2708 4822 122 31765 100pF 2% 63V
2771 4822 124 41407 0,47µF 20% 63V
2902 3198 017 44740 470nF 10V
2905 3198 017 42230 22nF 50V
2908 4822 126 14305 100nF 10% 16V
2922 4822 122 31765 100pF 2% 63V
2923 4822 121 51387 10nF 20% 16V
RESISTORS
3201 4822 117 12968 820R 5% 0,62W
3202 4822 051 30151 150R 5% 0,062W
3205 4822 116 52289 5k6 5% 0,5W
