Philips FW390 - Tuner Board (Eco5) Schematic

20 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

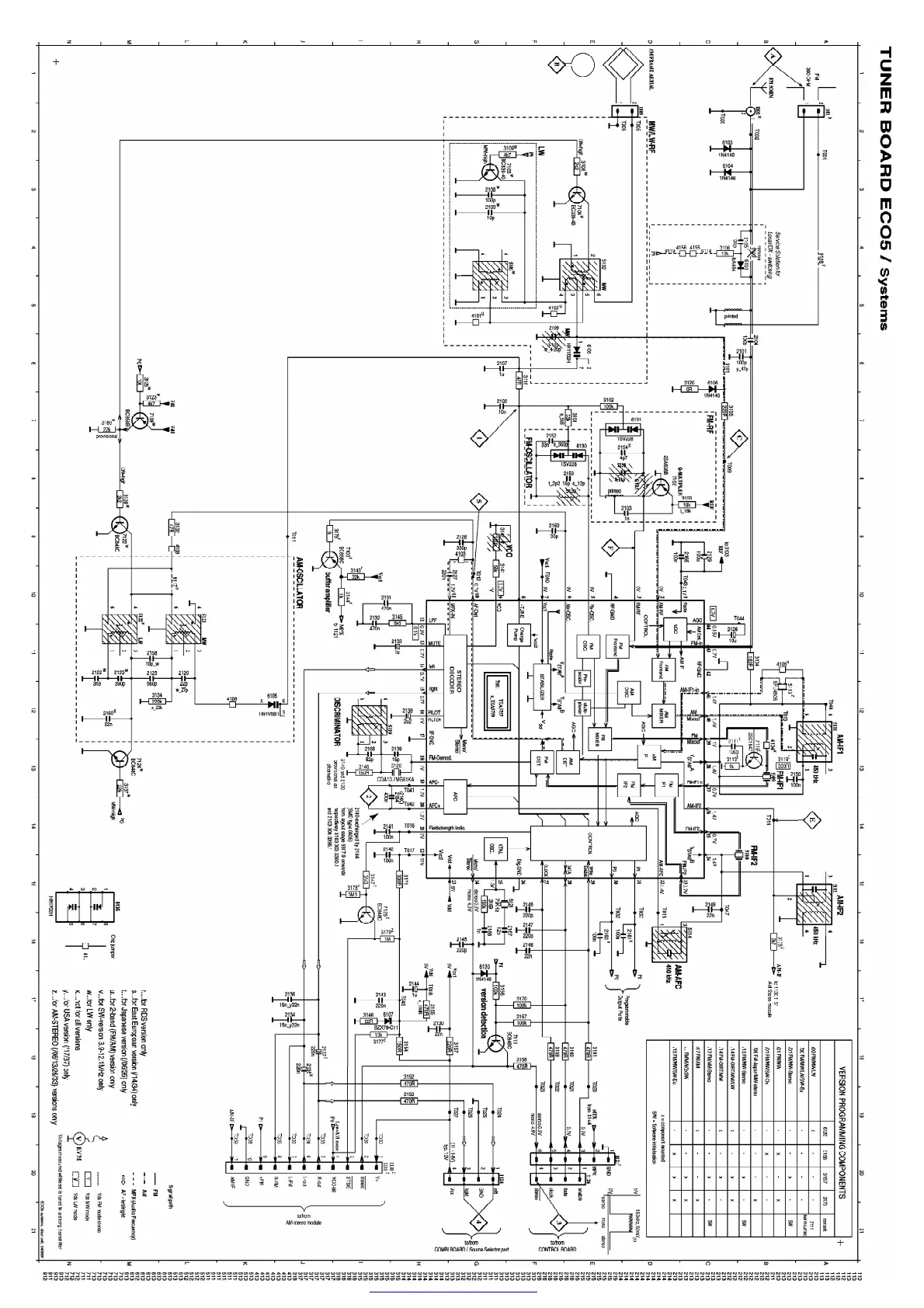

FW390(1907) - TUNER BOARD (ECO5) SCHEMATIC Page: 9 of 20
