DISMANTLING INSTRUCTIONS

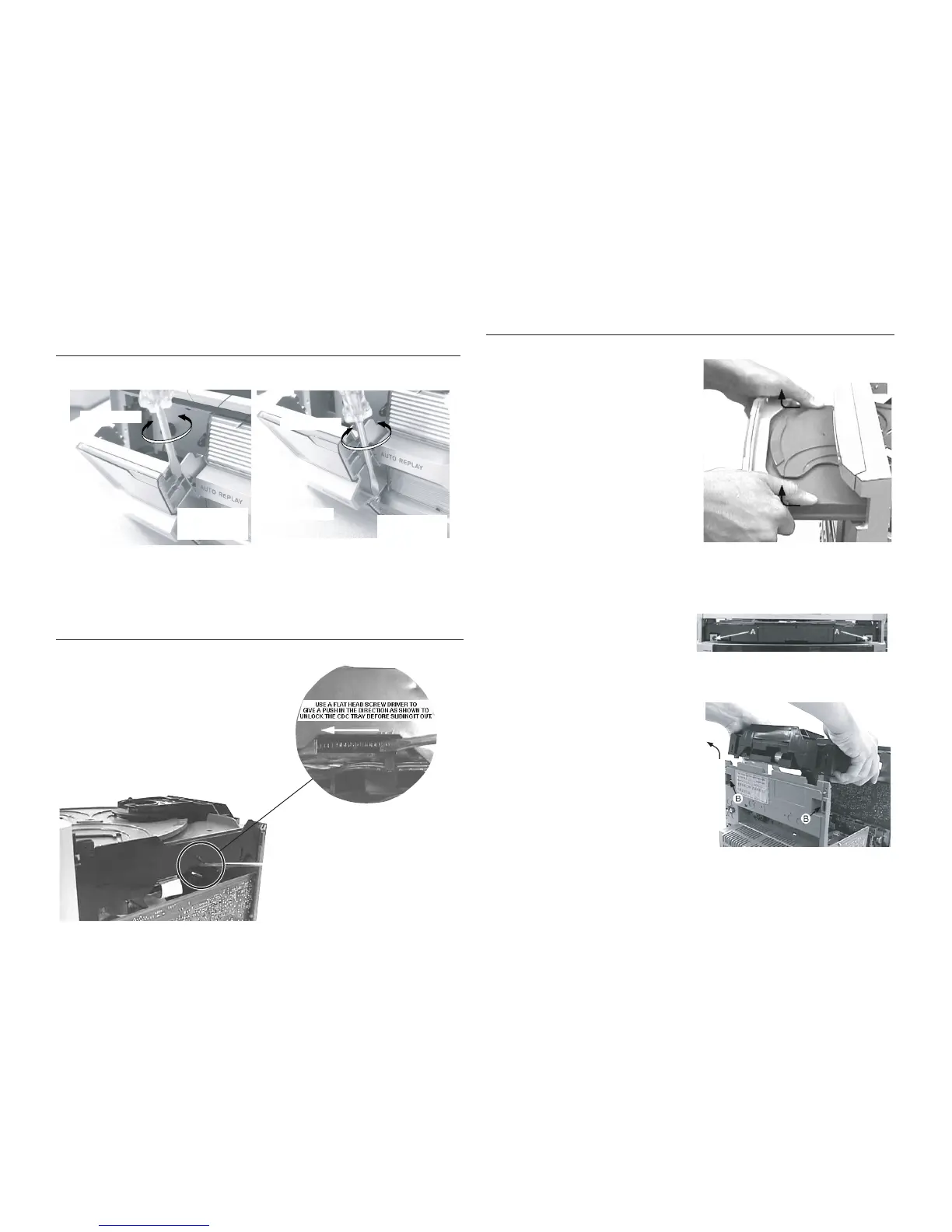

Dismantling of the Cassette Cover
1) Loosen 4 screws to remove the Cover Top of the set.
2) Loosen 2 screws to remove the Panel Left and 2 screws
to remove the Panel Right of the set.
3) Slide out the CDC Tray as shown in the diagram below with
the help of a flat head screw driver.
Remove Cassette Nether Cover
Remove Cassette Upper Cover
Dismantling of the CDC Module and Front Panel
Remove CDC Module
4) Remove the Cover Tray CDC as indicated.
Front View CDC
Remove Cover Tray CDC
Dismantling of the CDC Module and Front Panel
Sliding Out The CDC Tray
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module as indicated.
6) Remove 2 screws at the bottom to separate the
Front Panel Assembly from the Plate Bottom .
3. Lift up and out
1. Place screw driver
(flat side) between
the cassette cover
& cassette door
2. Twist screw driver
6. Lift up and out
4. Place screw driver
(flat side) between
the cassette cover
clasp & cassette door
5. Twist screw driver
