Connect speakers
Note
For optimal sound, use the supplied speakers only.
Connect only speakers with impedance that is the 
same or higher than the supplied speakers. Refer to
WKH6SHFLÀFDWLRQVVHFWLRQRIWKLVPDQXDO

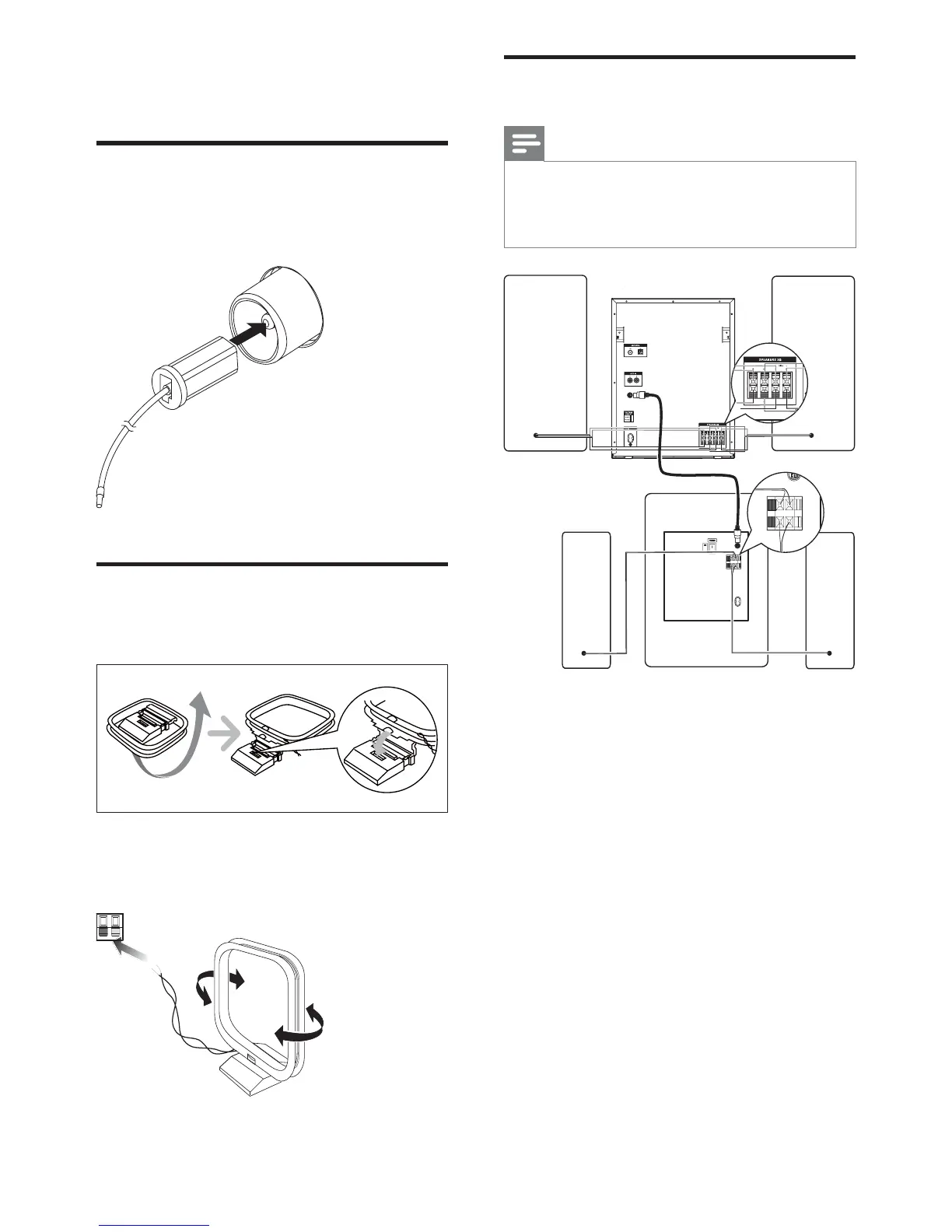

A: front speakers; B: rear speaker; C: subwoofer;
D: DIN cable
Connect the front speakers
1 )RUWKHULJKWIURQWVSHDNHUÀQGWKH
sockets on the main unit marked “R”.
2 Insert the blue-black wires into a pair of
blue-black (+/-) sockets, the blue wire
into the blue (+) socket, the black wire
into the black (-) socket.
3 Insert each speaker wire:
a +ROGGRZQWKHVRFNHWÁDS
b Insert the stripped part of the wire
completely.
c 5HOHDVHWKHVRFNHWÁDS
AA
BB
C
D
3 Connect
Connect FM antenna
1
Connect the supplied FM antenna to the
FM jack on the back of the main unit.
Connect AM antenna
1
Assemble the AM loop antenna.
2 Connect the AM loop antenna to the AM
jack on the back of the main unit.
MW
