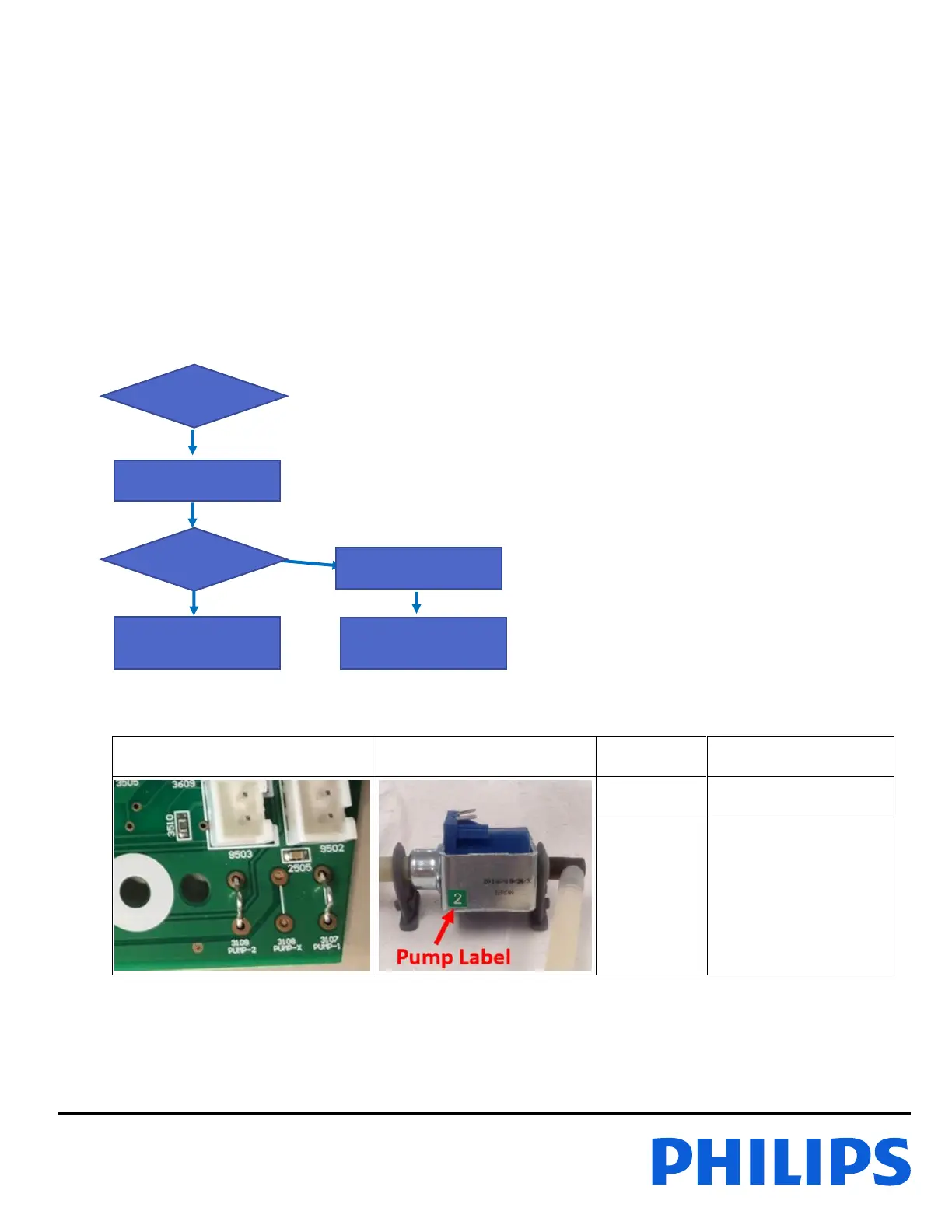

Reassembly Instructions

Power Board PCBA and / or & Pump Assy replacement.

In case of PCBA and / or pump replacement, follow as per below instruction to ensure matching of both

hardware.

a) For PCBA replacement:

- To cut the jumper wires (J1, J2) on PCBA based on the pump label as in Table 1 below.

b) For pump replacement:

Table 1

Jumper wires on PCBA

Label on Pump

Pump label

Jumper wire to cut on

PCBA

J1 (Pump -1)

J2 (Pump-2)

Pump spoilt?

YES

Change Pump

Same Pump

available?

YES

Change PCBA

YES

Replace Pump

accordingly

Cut Jumper wire per

table 1
