Published by Philips Consumer Lifestyle 12 | P a g e For internal use only
Document No. : CSW-07-081-18111

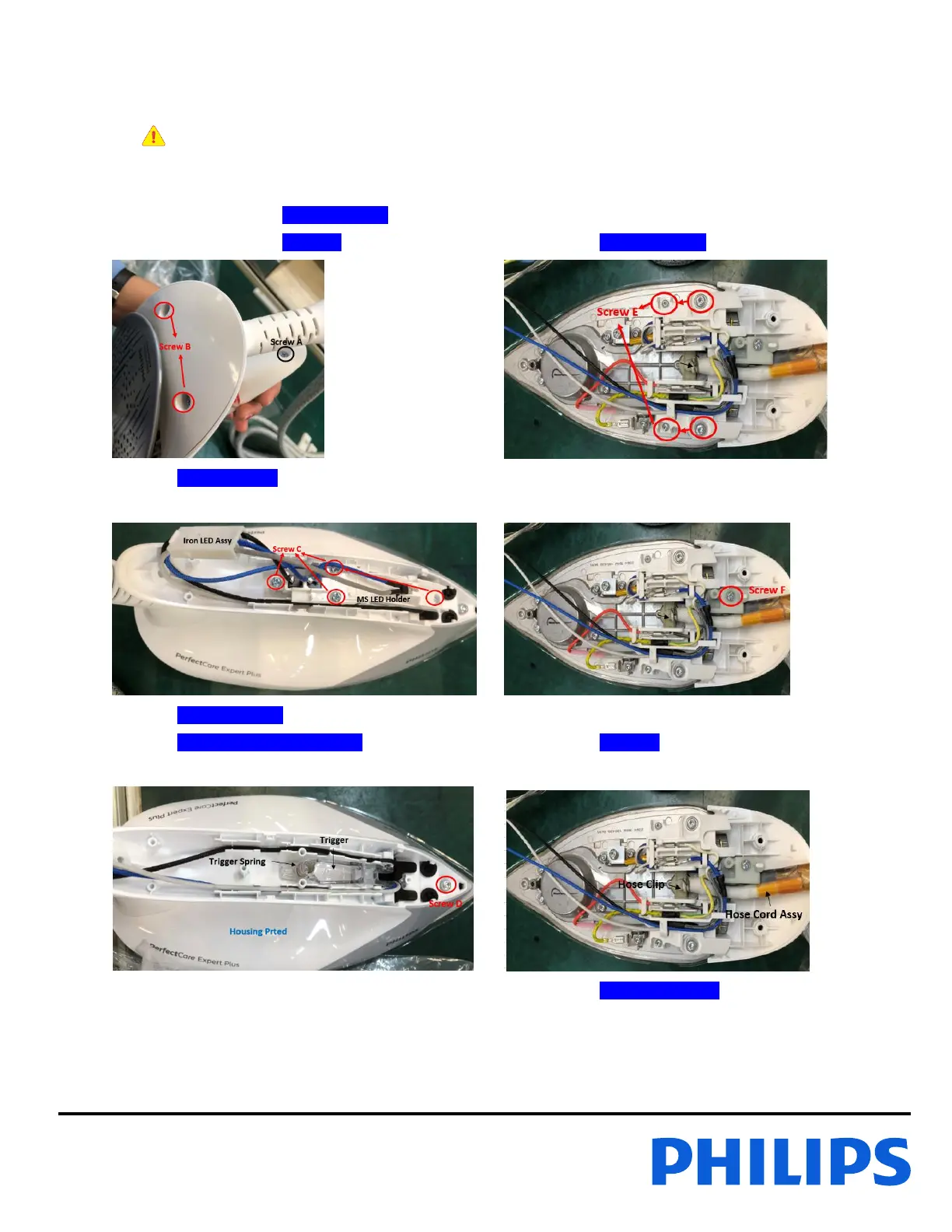

Disassembly Instructions - Iron
Notes: Before dismantling:
Ensure the plug is disconnected from the mains and Soleplate is not hot.
1. Remove Screw A from Housing Prted 4 9. Remove Mica Washer
2. Remove Screw B from Chassis 7 10. Remove Housing Prted 4
3. Remove Inlay 2K Assy 1 11. Remove Screw E from Chassis to Soleplate
4. Remove Screw C from Micro Switch LED Assy 12. Remove Screw F
5. Remove Iron LED Assy 2 13. Disconnect all wire connection
6. Remove Micro Switch LED Holder 3 14. Remove Chassis 7
7. Remove Trigger 5 & Trigger Spring 15. Remove Hose Clip
8. Remove Screw D in front of Housing Prted 4 16. Remove Hose Cord Assy 6
To Next Page
