Document No. : CSW-07-081-18111

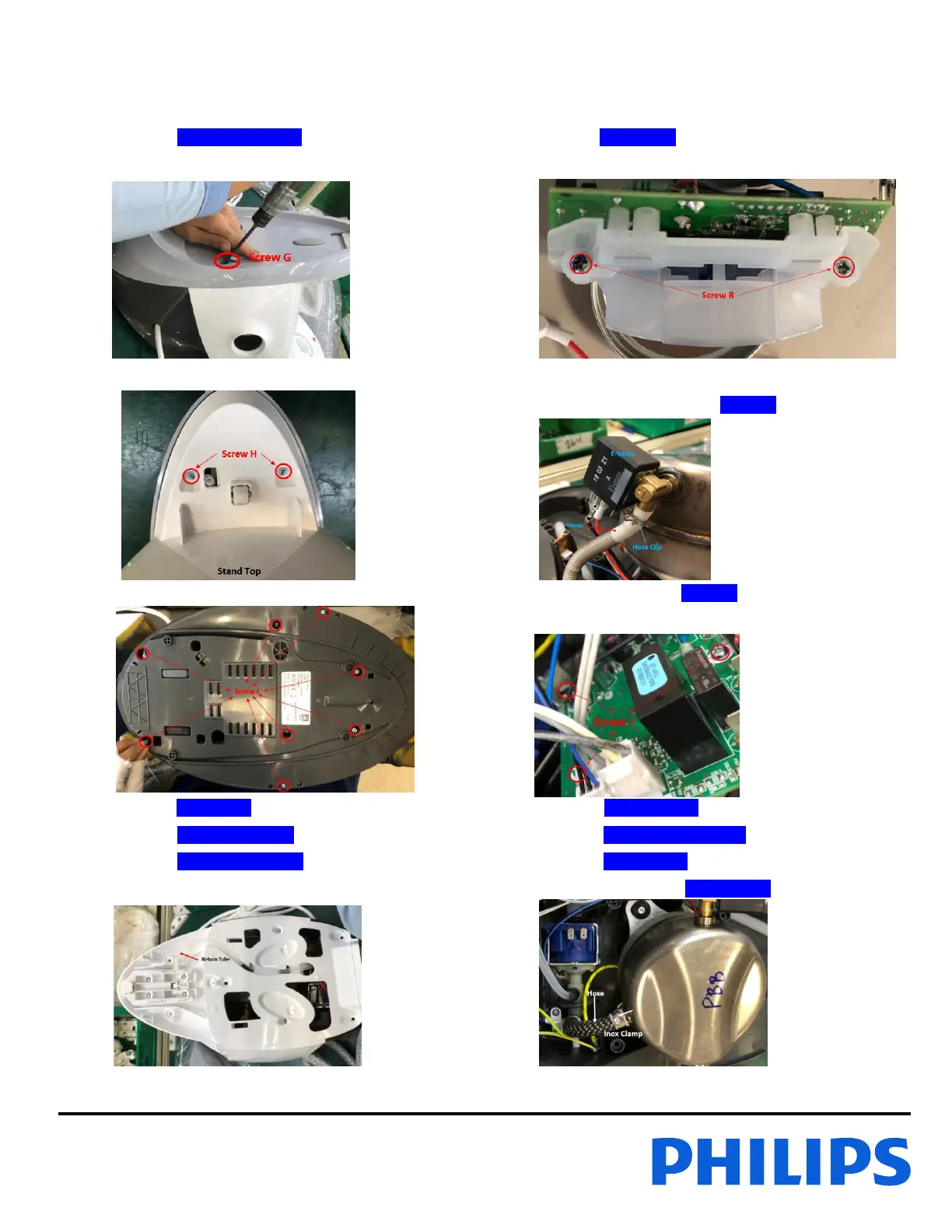

Disassembly Instructions - Stand
1. Remove Water Tank Assy 10 9. Remove Stand Top 23
2. Remove Screw G underneath the Tray Rubber 10. Remove Screw R from Power Button
3. Remove Screw H from Stand Top 11. Disconnect all wire connection
12. Remove Hose Clip from E-Valve 22
4. Remove Screw I from stand Bottom 13. Remove Hose from E-Valve 22
14. Remove Screw J
5. Remove Tray Assy 13 15. Remove Power PCBA 28
6. Remove Rinse Cap Assy 14 16. Remove Power Button Assy 29
7. Remove Rinse Bush Assy 15 17. Remove Inox Clamp 18
8. Remove Return Tube 18. Remove Hose from Boiler Assy 20
To Next Page
